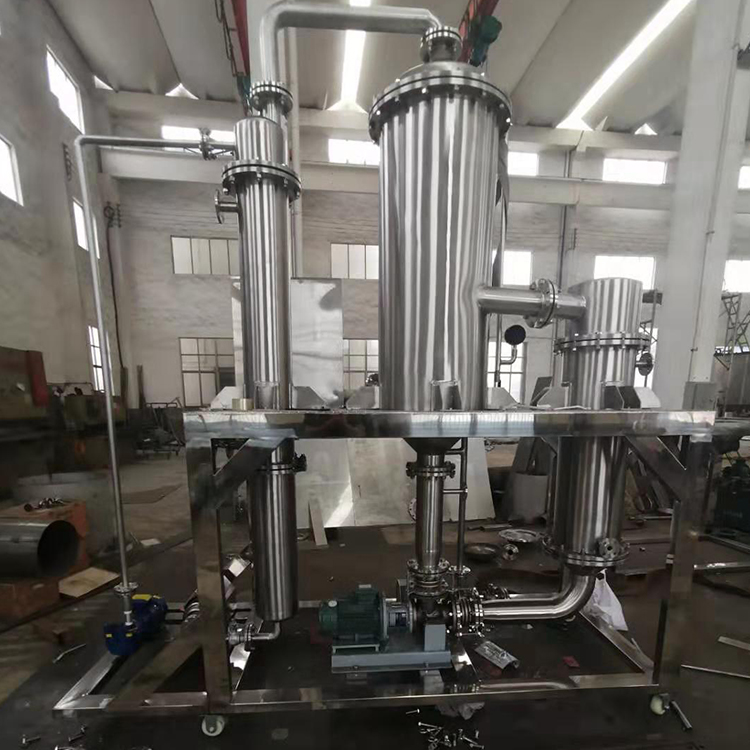

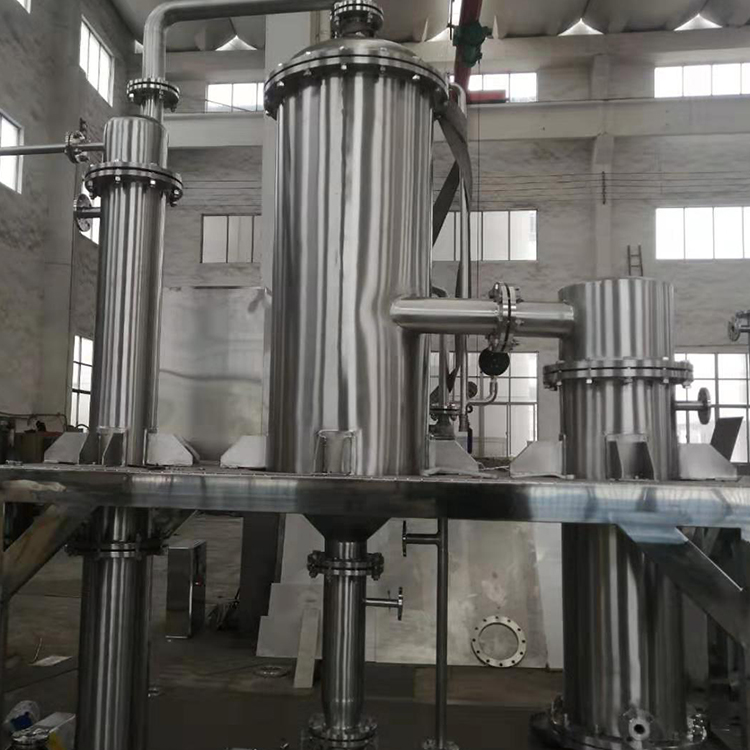

Single-effect waste water evaporator
Usage:
This equipment is suitable for industries such as biology, food, and chemicals, commonly used for the evaporation of traditional Chinese medicine extracts, juices, and refined chemical solutions.
Features:
a. Compact structure, small footprint. Precision polished both inside and out, compliant with GMP standards.
b. The equipment primarily consists of heaters, separators, defoamers, condensers, and so on.
c. Utilizing vacuum reduction operation, with low evaporation temperature and fast speed, all instrument valves are reasonably configured for easy operation.
Technical Specifications:
Parameters/Model | WZ-300 | WZ-500 | WZ-750 | WZ-1000 | WZ-2000 | WZ-3000 |
Evaporation Capacity (kg/h) | 300 | 500 | 750 | 1000 | 2000 | 3000 |
Heating Area (m²) | 5.2 | 8 | 12 | 16 | 32 | 51 |
Condensation Area (m²) | 6 | 11 | 15 | 20 | 40 | 65 |
Steam Consumption (kg/h) | 330 | 550 | 820 | 1100 | 2200 | 3300 |
Cooling Water Flow (t/h) | 6 | 10 | 15 | 20 | 40 | 60 |
Dimensions (m) | 2.5x1x3.2 | 2.7x1x3.5 | 3x1.2x3.7 | 3.2x1.2x4 | 4x1.2x4.7 | 5x1.4x5 |
