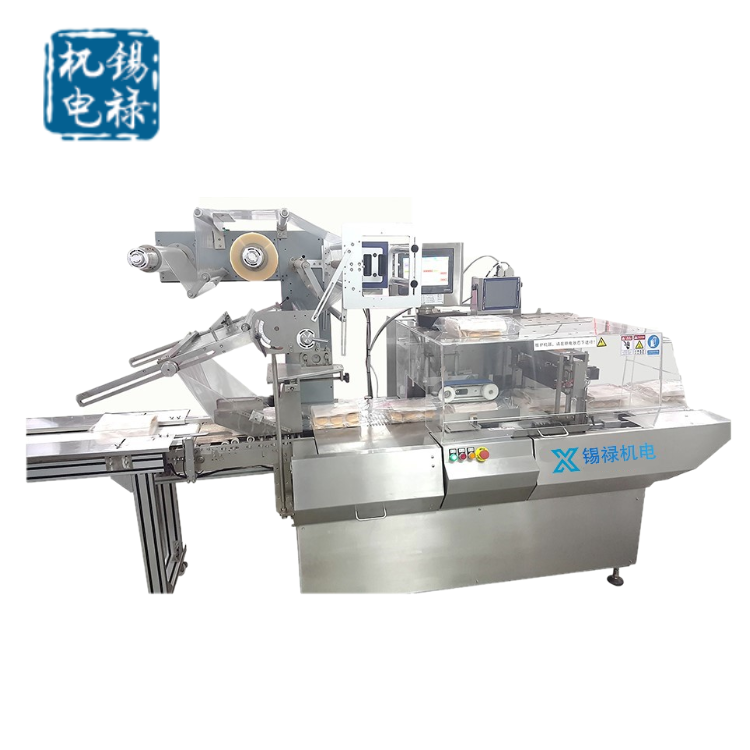

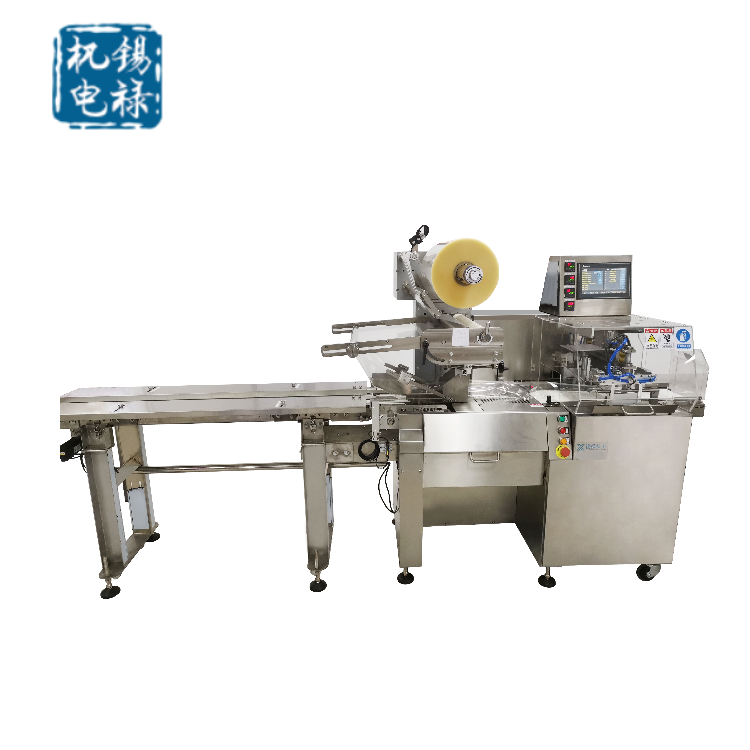

Ether CATServo Drive High-Performance Transverse Pillow-Type Packaging Machine
XLSM-550-3A(Upstream Film Coating)
I. Equipment Overview
XLSM-550-3AA fully servo-driven packaging machine designed specifically for monolithic, irregular-shaped, and other products. The machine utilizes four Ether CAT servo drive systems, powered by servo drives to drive servo motors, ensuring the entire machine's operation. It also employs an Ether CAT fieldbus control system to synchronize the connection between upstream and downstream equipment in the factory.
II. Equipment Specifications
Performance | Parameters | Performance | Parameters |
Model | XLSM-550-3A | Packaging speed | 10-120Bag/minute |
Cap Seal Style | reciprocating | Film Width | 550mm( customizable ) |
Total Power | 3.5KVA | Packaging Film Diameter | Ø300mm |
Mechanical weight | 1000kg | Cut Length of Packaging Bags | 800mm( customizable ) |
Packaging height | 80mm( customizable ) | Packaging Width | 180mmCustomizable |
• Applicable Heat Sealing Film Types: Heat-sealable composite films (PE/PET, OPP/PE, OPP/CPP), paper composite films, foil composite films, food-grade composite films, heat-shrinkable films, and other material packaging rolls.
Section 3: Equipment Dimensions
Section 4: Standard Equipment:
• Dual-hang film system (capable of hanging two rolls of packaging film simultaneously)
• Anti-airbag System (material-filled for automatic packaging, empty for automatic standby)
Anti-mis-cutting system (the sealing system automatically stops working when the product is misaligned, to protect the product)
• Customizable Bagger (Adjustable for different product dimensions)SGM080-3A-P/TThe pouch making machine for packaging films.
• Single-stage belt conveyor system (seamless belt conveyor system, single-axis material handling)
• 10-inch color LCD touch screen (switching between product packaging parameters and equipment operation parameters, as well as monitoring the equipment's operating status)
• Film Centering Bracket (Once the packaging film is hung onto the film spool, the film centering bracket will automatically align to the center position of the roll)
•4 Servo Motor Driven (the core power for completing packaging tasks)
• Exhaust system (for expelling excess air from the product packaging bag)
V. Optional Equipment:
Nitrogen Filling System (inflating the product packaging bag with an appropriate amount of nitrogen)
• Various automatic material handling systems (organizing chaotic products and sequentially feeding them into packaging machines for packaging)
• Piercing Device (per customer's requirement, perforations are made on the seal surface of the product packaging bags for easy hanging on supermarket shelves)
• Coding Machine (for printing dates, QR codes, and relevant product parameters on product packaging bags)
• Labeling Machine (Applies product labels to the packaging bags according to customer requirements)
• Corner folding device (mechanically folds the four corner edges of the product packaging bag)
• Automatic Film Coating SystemXLSM-550-3A-P/TThe machine can hang two rolls of packaging film simultaneously. When the current roll is used up, it will automatically switch to the other roll to continue packaging production without any downtime or manual intervention.
• Multilingual Display (Choose to display official languages of other countries on the 10-inch color LCD dynamic touch screen for user convenience)
• Pusher-type conveyor line (Packaging equipment can opt for a pusher-type conveyor system, convenient for special product packaging requirements)
