Ether CATServo-driven horizontal pillow packaging machine

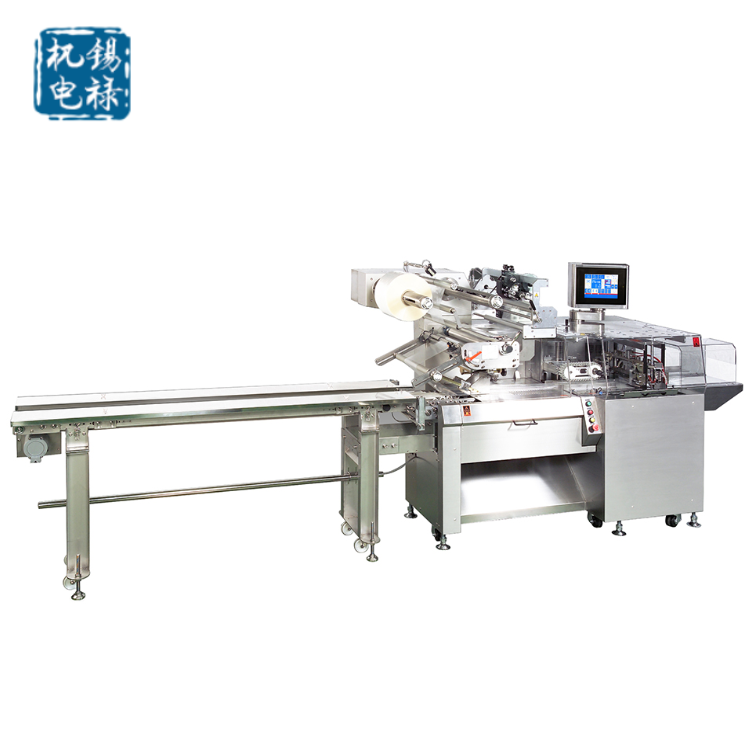

XLSM-500-3B(Upstream Film Coating)
I. Equipment Overview
XLSM-500-3BThis is a fully servo-driven packaging machine specifically designed for small and medium-sized solid products. The machine employs three Ether CAT servo drive systems, which drive servo motors through servo drives to complete the entire operation, and utilizes Ether CAT fieldbus control systems to synchronize connections between upstream and downstream equipment in the factory.
II. Product Specifications
Performance | Parameters | Performance | Parameters |
Model | XLSM-500-3B | Packing speed | 10-60Bag/minute |
Cap Sealing Style | reciprocating | Film Width | 480mm( customizable ) |
Total Power | 4KVA | Packaging Film Diameter | Ø300mm |
Mechanical Weight | 800kg | Bag packaging cutting length | 600mm( customizable ) |
Height of packaged item | 120mm | Package item width | 180mm |
Applicable Heat Sealing Film Types: Heat-sealable composite films (PE/PET, OPP/PE, OPP/CPP), paper composite films, aluminum foil composite films, food-grade composite films, heat-shrinkable films, and other material packaging rolls.
Section 3: Standard Equipment:
• Single Roll Film Hanger System
• Anti-airbag System (fully loaded for automatic packaging, unloaded for automatic standby)
• Anti-mis-cut system (the sealing system automatically avoids when the product is misaligned)
•Adjustable bagger (simply adjust for varying product sizes)SGM080-3B-P/TThe bag-making machine for packaging film (as specified).
• Single-stage belt conveyor system (seamless belt conveyor system, single-axis material handling system)
• 10-inch color LCD touch screen (integrated with all data of the unit)
• Film Centering Control Frame (after hanging the packaging film onto the film drum, the film centering control frame will automatically align to the center position of the roll)
•3 Servo Motor Driven (the core power for completing packaging tasks)
IV. Optional Equipment:
• Nitrogen Filling System (inflating the product packaging bag with an appropriate amount of nitrogen)
• A variety of automated material handling systems (organizing chaotic products for orderly packaging inside)
• Punching device (punch holes in the product packaging bags according to customer requirements for easy hanging on city shelves)
• Coding Machine (for printing dates, QR codes, and relevant product parameters on product packaging bags)
Labeling Machine (applies product labels to the surface of product packaging bags as per customer requirements)

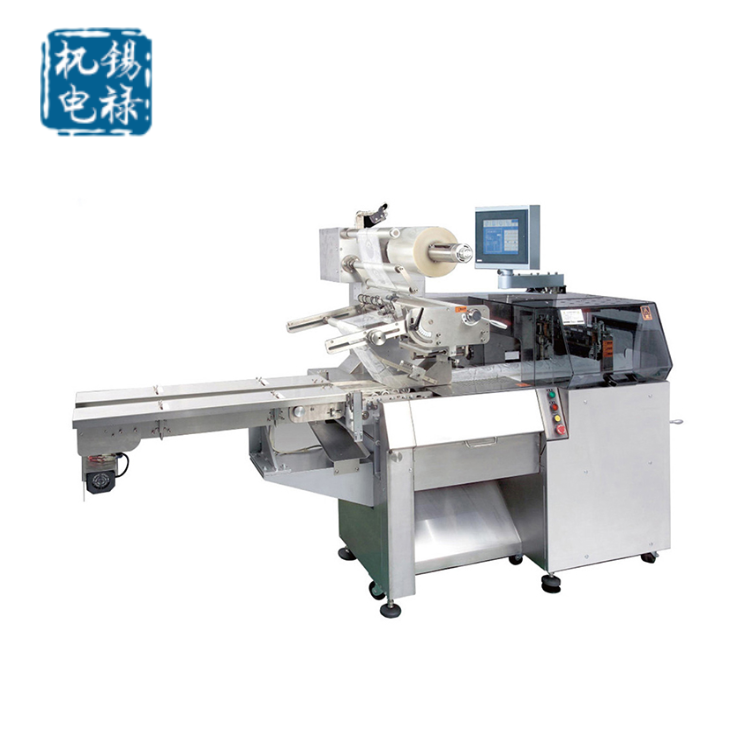

• Automatic Coating SystemXLSM-500-3B-P/TThe machine can hang two rolls of packaging film simultaneously. When the current roll is used up, the device will automatically switch to the standby roll, continuing the product packaging production without stopping.
• Multilingual Display (Choose to display official languages of other countries on the 10-inch color LCD dynamic touch screen for customer convenience)
• Pusher-type conveying line (Packaging equipment can opt for a pusher-type conveying system, which is convenient for special product packaging requirements)
• Foot device (mechanically folds the four corner edges of the product packaging bag to ensure the aesthetic appearance of the packaging)
