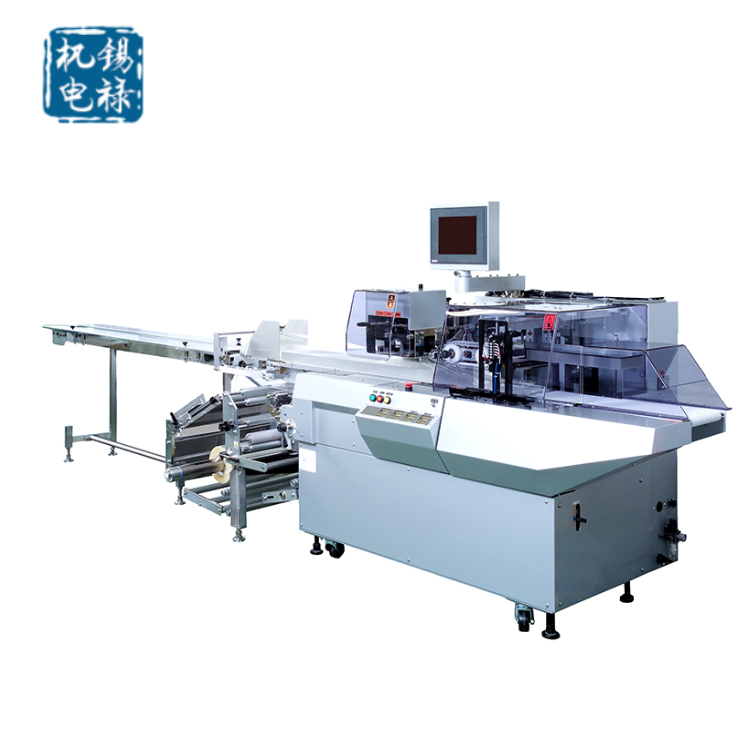

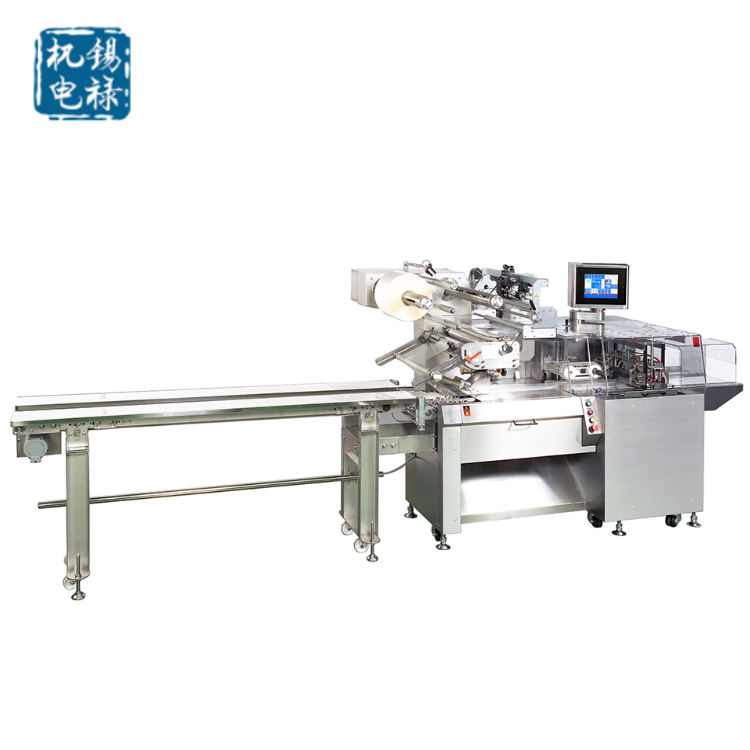

All-servo-driven four-sided seal horizontal pillow packaging machine

Features:

Four-sided seal packaging for ice packs, heat patches, band-aids, and sports patches.

* Innovative single-roll film four-side sealing packaging technology, with the equipment automatically cutting the center line of the single-roll packaging film evenly.

Independent control heating sealing system, precise temperature control.

Edge trimming system for packaging film, automatically cuts off the sealing edge part while retaining the remaining heat-sealed sections (without affecting airtightness), ensuring the aesthetic appearance of the outer product packaging bags.

Food-grade conveyor belts ensure product hygiene.

* 10-foot color LCD programmable touch screen, integrating all device data, clearly monitoring the current operation status, and immediately adjusting operating parameters.

* Equipped with anti-cut system, product features anti-bag system.

Packaging Capacity/Dimensions:

*Model: XLSM060-4A-P/T

*Packaging Capacity: 10-60 packs/minute

*Width of Packaging Film: 120-400mm

* Diameter of Packaging Film Roll: 100-300mm

Bag packaging cutting length: 80-400mm

*Product Height: 2-80mm

*Product Width: 20-150mm

Total Power: 6 KVA

The machinery weighs approximately 1500kg.

Note: This data varies based on the shape, size, characteristics of the packaged product, and specifications of the packaging material.

Optional Installation:

Coding Machine

Labeling Machine

* Various Automatic Material Handling Systems

Multilingual Display

Pusher conveyor belt

Punching Equipment

Exhaust System

Product Advantages:

Four-side seal product packaging

Preheat device enhances the appearance of the sealing surface.

Five-axis servo drive meets high stability packaging requirements.
