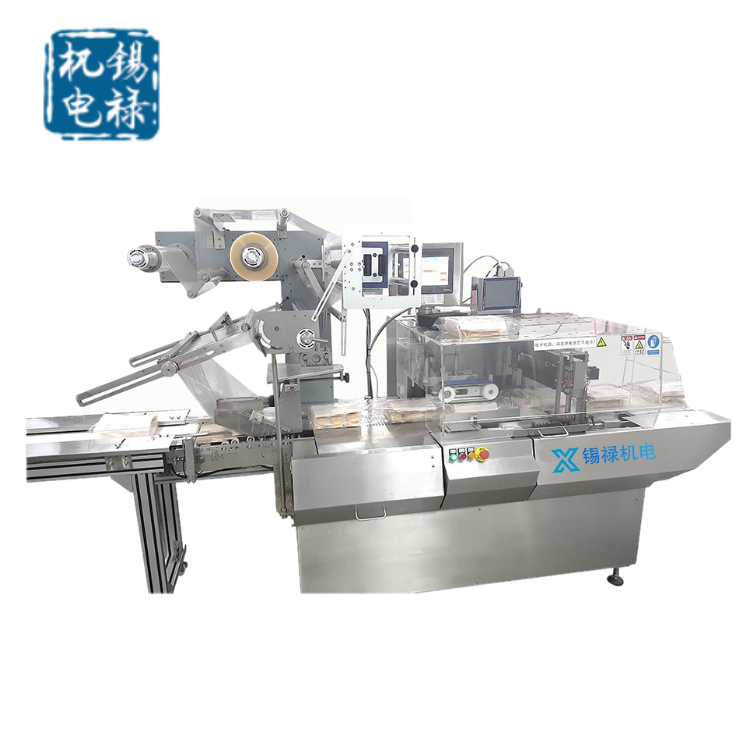

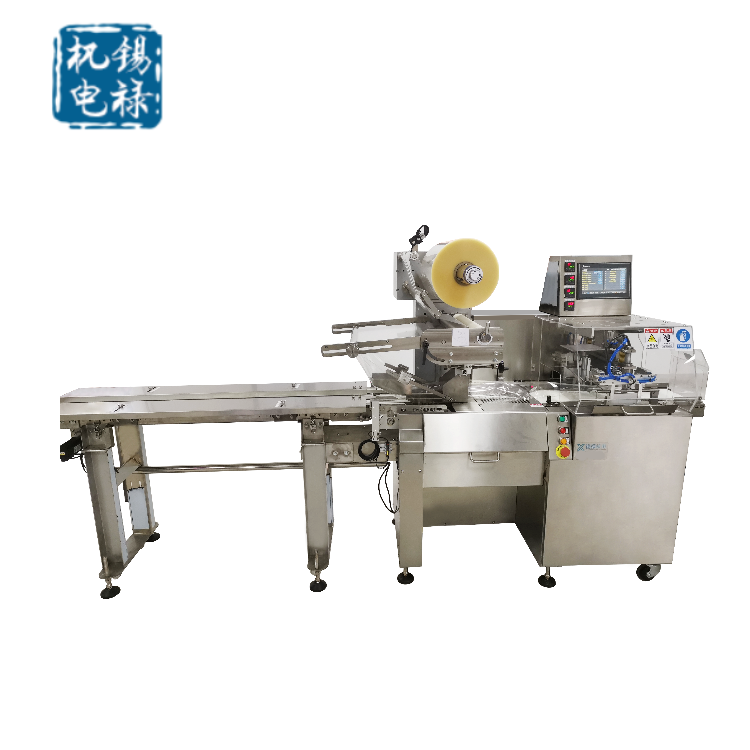

Servo-driven tray horizontal pillow packaging machine

Features:

* Widely used for three-side seal packaging of products in single-body, tray, trayless, and irregularly shaped categories.

The head features a reciprocating sealing system with a BOX running track, ensuring the outer packaging bags are airtight, aesthetically pleasing, and compatible.

Standard product anti-cutting system to prevent accidental cuts.

Standard with middle seal preheat system.

Standard product includes an anti-airbag system, which automatically packages materials and goes into standby mode when there are no materials.

Standard single-stage flat belt conveying system, automatic material handling, allows for unordered material placement.

Utilizes Ether CAT fieldbus control system, enabling communication and connection with the existing equipment in the customer's factory, as well as remote fault diagnosis and timely resolution.

The equipment is equipped with 4 servo drive systems.

Innovatively designed membrane drum centering bracket, allowing for flexible placement of packaging film on the membrane drum, with the equipment automatically adjusting.

* Automatic temperature tracking system, which can automatically adjust the heat-sealing temperature based on the current packaging speed when the packaging speed changes, without the need for manual intervention.

All surface covers are made of 304 stainless steel, facilitating equipment cleaning and ensuring hygiene.

Packaging Capacity/Dimensions:

*Model: XLSM080-3A-PT

Packaging Capacity: 10-120 packages per minute

* Width of Packaging Film Rolls: 260-500mm

* Packaging Film Diameter: 100-300mm

Bag Cutting Length: 100-600mm

*Product Height: 30-100mm

Product Width: 60-180mm

* Total Power: 5 KVA

Approximate weight of the machinery is around 1000 kg.

Note: This data varies depending on the shape, size, characteristics of the packaged product, and specifications of the packaging material.

Optional Accessories:

* Coding Machine

Labeling Machine

* Various Automatic Material Handling Systems

Multilingual Display

Automatic Coating System

Pusher-type conveyor belt

Punching Equipment

Recessed Connector

Nitrogen Filling System

Exhaust System

Product Advantages:

* Flagship Model - Full-featured

Dual-group film spool design

Two-Generation Reciprocating Sealing System

10-inch Human-Machine Interaction Screen - Quickly Complete Various Settings
