High-speed full servo pillow-type packaging machine
I. Equipment Overview

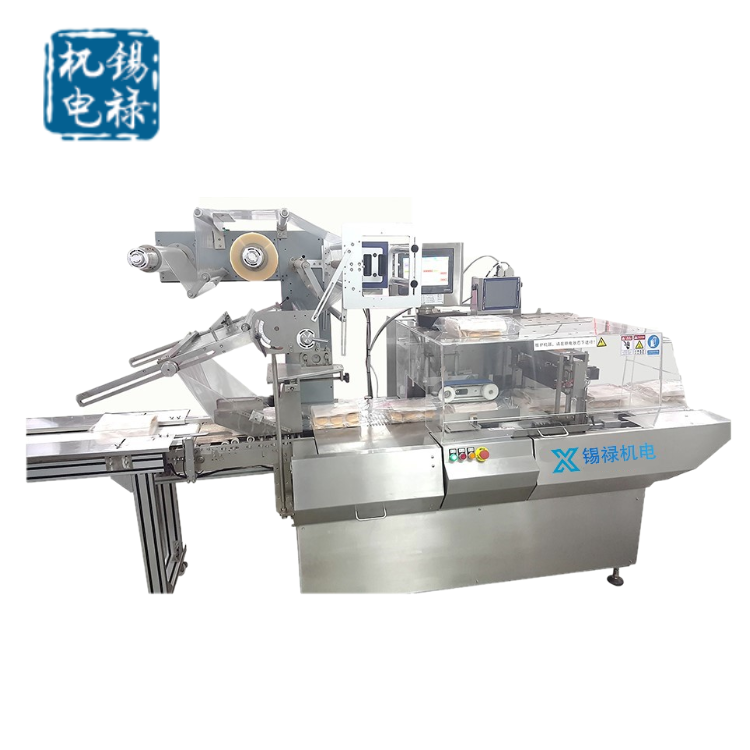

XLSM-550-3AA fully servo-driven packaging machine specifically designed and developed for monolithic, irregularly shaped, and other products. The equipment utilizes four Ether CAT servo drive systems, which drive servo motors through servo drives to ensure the overall operation of the machine. It also employs an Ether CAT fieldbus control system for synchronized connection between upstream and downstream equipment in the factory.
Section II: Equipment Specifications
Performance | Parameters | Performance | Parameters |
Model | XLSM-550-3A | Packaging speed | 10-120Bag/minute |
Cap Seal Pattern | Reciprocating | Film Width | 550mm( customizable ) |
Total Power | 3.5KVA | Packing Film Diameter | Ø300mm |
Mechanical weight | 1000kg | Cut Length of Packaging Bags | 800mm( customizable ) |
Packaging height | 80mm( customizable ) | Packaging Width | 180mm( customizable ) |
• Applicable Heat Sealing Film Types: Heat-sealable composite films (PE/PET, OPP/PE, OPP/CPP), paper composite films, foil composite films, food-grade composite films, heat-shrinkable films, and other material packaging rolls.
Section 3: Equipment Dimensions
IV. Standard Equipment:
• Dual Film Hanger System (capable of hanging two rolls of packaging film simultaneously)
• Anti-airbag System (material-filled for automatic packaging, empty for automatic standby)
• Anti-accident cutting system (the sealing system automatically stops when the product is misaligned, protecting the product)
• Customizable Bagging Machines (Adjustable when product dimensions vary)SGM080-3A-P/TThe bag-making machine for packaging film (as applicable).
• Single-level belt conveyor system (seamless belt conveyor system, single-axis material handling)
•10-inch Color LCD Touch Screen (for switching between product packaging parameters and equipment operating parameters, as well as monitoring equipment operating status)
• Film Center Point Control Frame (after the packaging film is hung onto the film reel shaft, the film center point control frame will automatically align to the center position of the roll)
•4 Servo Motor Drive (the core power for completing packaging tasks)
Exhaust System (for expelling excess air from the product packaging bag)
V. Optional Equipment:
Nitrogen Filling System (injection of an appropriate amount of nitrogen into the product packaging bag)
• A variety of automatic material handling systems (organizing chaotic products into an orderly sequence before they are packaged into machines)
• Piercing device (punches holes on the sealing surface of the product packaging bags per customer's request, for easy hanging on supermarket shelves)
• Coding Machine (for printing dates, QR codes, and relevant product parameters on product packaging bags)
Labeling Machine (applies product labels to the surface of product packaging bags as per customer requirements)
• Corner folding device (mechanically folds the four corners of the product packaging bag)
• Automatic Film Coating SystemSGM080-3A-P/TCan simultaneously hang two rolls of packaging film. Once the current roll is used up, the machine will automatically switch to the other roll to continue packaging production without stopping or requiring manual intervention.
• Multi-language display (Users can select official languages of other countries to be displayed on the 10-inch color LCD dynamic touch screen for easy operation)
• Pusher-type conveyor line (Packaging equipment can opt for a pusher-type conveyor system, convenient for special product packaging requirements)
