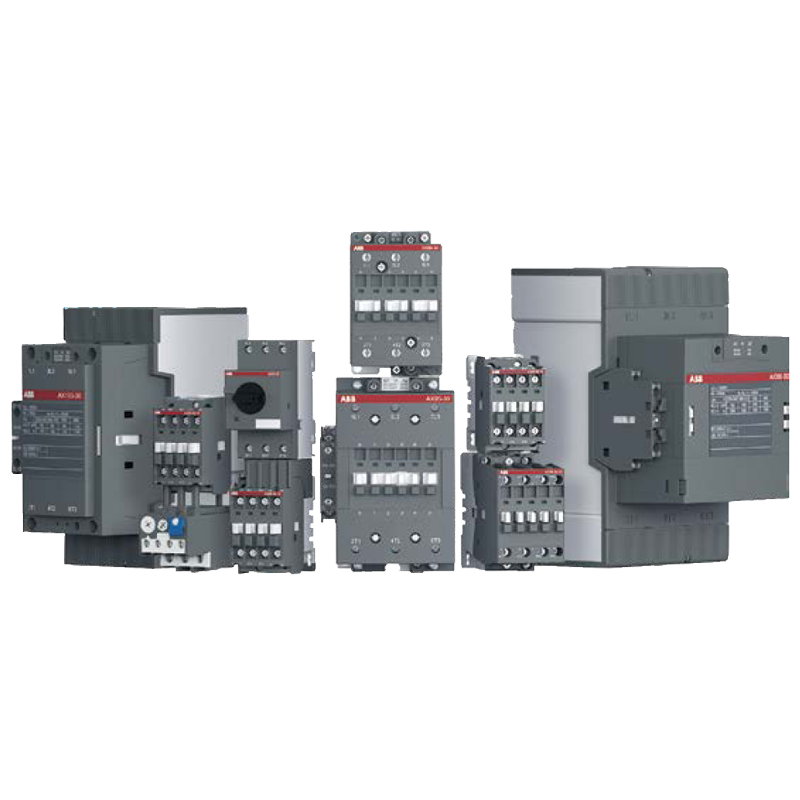

AX Series Contactor - Compact structure, small size, long lifespan, stable and reliable operation, easy installation and maintenance. Contactor and overload

Relays are suitable for construction and industrial applications, such as motor control, heating and ventilation, air conditioning, water pumps, and power factor correction.

Product Features

• Optimized industrial product design, aesthetically pleasing

Compact size with reliable and stable performance

• Fresh design concept, perfectly compatible with other ABB components, saving installation time and cabinet space

• Simple installation and maintenance; for over 185A contactors, no need to remove the main circuit cable during inspection

• Meets the requirements for compatibility with Type 1 and Type 2 protective classes, offering stable and reliable operation

• Contactors above 185A achieve zero arc extinction, allowing for close installation to the cabinet door

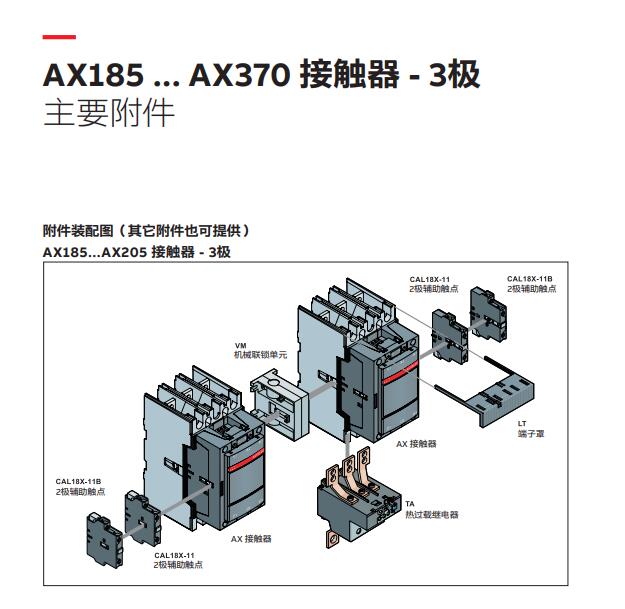

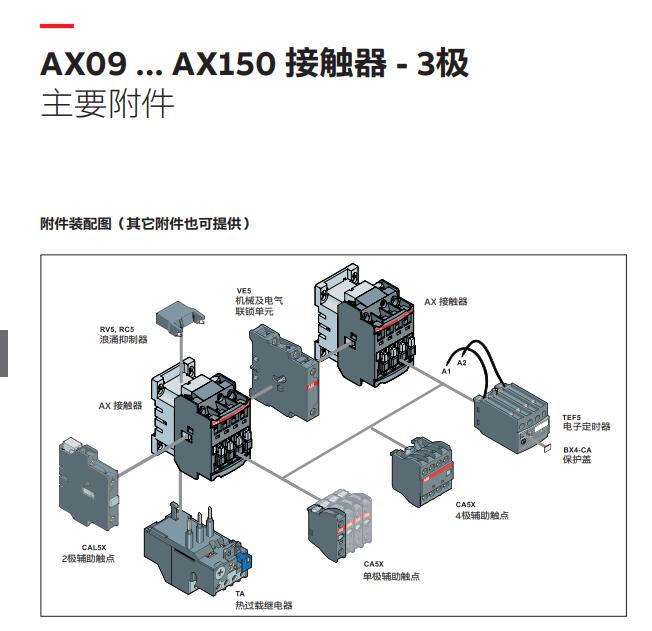

• Extensive range of accessories, with more convenient installation combinations

• IP20 protection rating, for safer use

• Operating temperature up to 70℃

Typical Applications

Motor Control

Power line control

Technical Data

• Rated Working Current (le): 9-370A

• Motor rated power (Pe): 4-200kW (400V AC-3)
