PEMTRON Ben创EAGLE 3D AOI Series

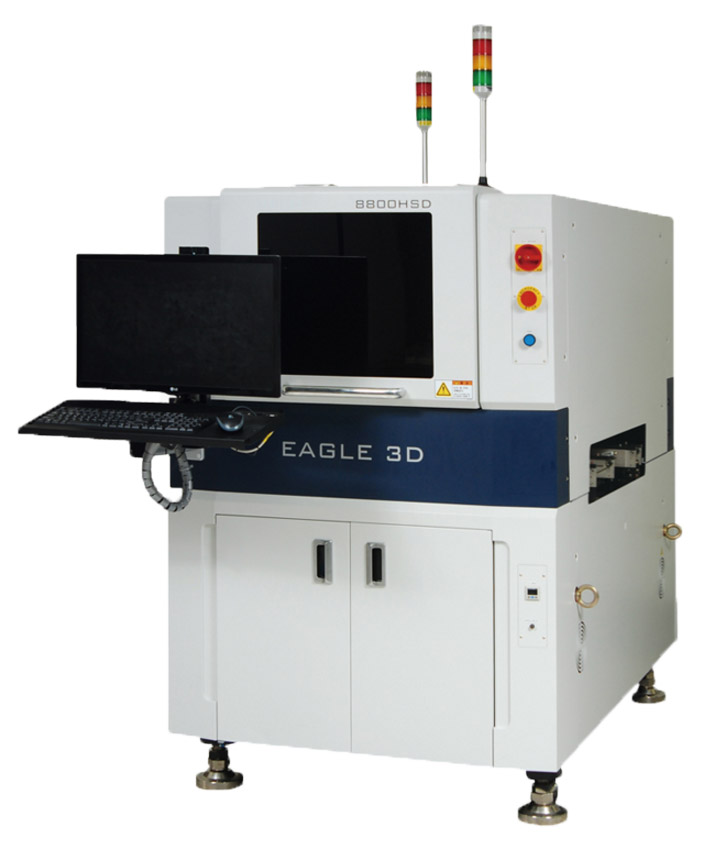

PEMTRON奔创EAGLE 3D 8800 AOI

Utilize 8Way Projection for 3D measurement.
Minimized errors caused by shadow effects to the greatest extent.
Concurrently perform 2D and 3D inspections across all FOV areas.
It's a device with near-detection capability while minimizing errors.

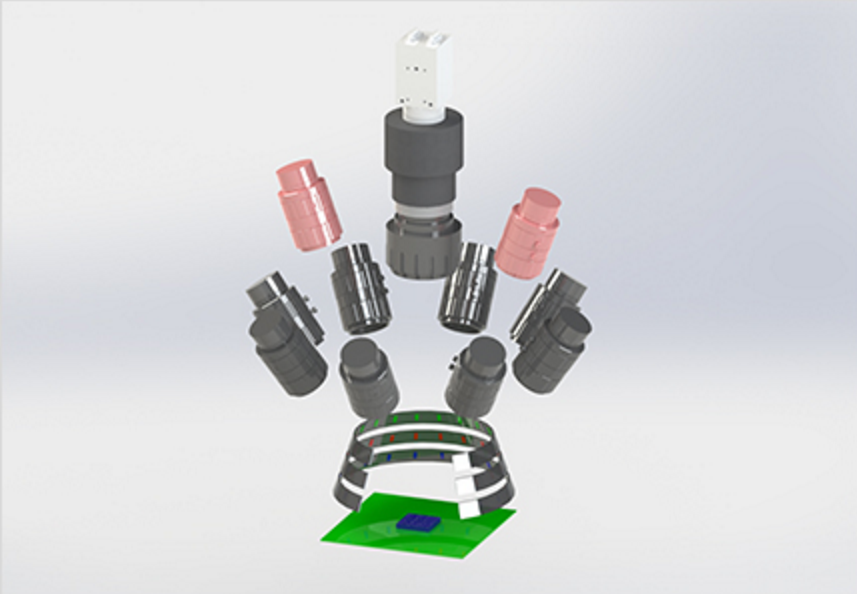

8-Way Projection + 3-Section Lighting
Simultaneously inspected via 2D and 3D algorithms
▶ Employing a Telecentric Lens enhances accuracy and detection capabilities.
User-friendly interface and program design
▶ Integrated component library and management functions
▶ Reduced tuning time
▶ Real-time Offline Debugging


3D detection can be performed freely even in the presence of shadows and light reflections.

• EAGLE 3D 8800 AOI measures in 3D by applying 8-way projection to all models.
  Minimized shadow effect errors to the maximum extent, conducting 2D & 3D inspections simultaneously in the FOV field.

• This significantly reduces false alarms while ensuring near-perfect detection capabilities.

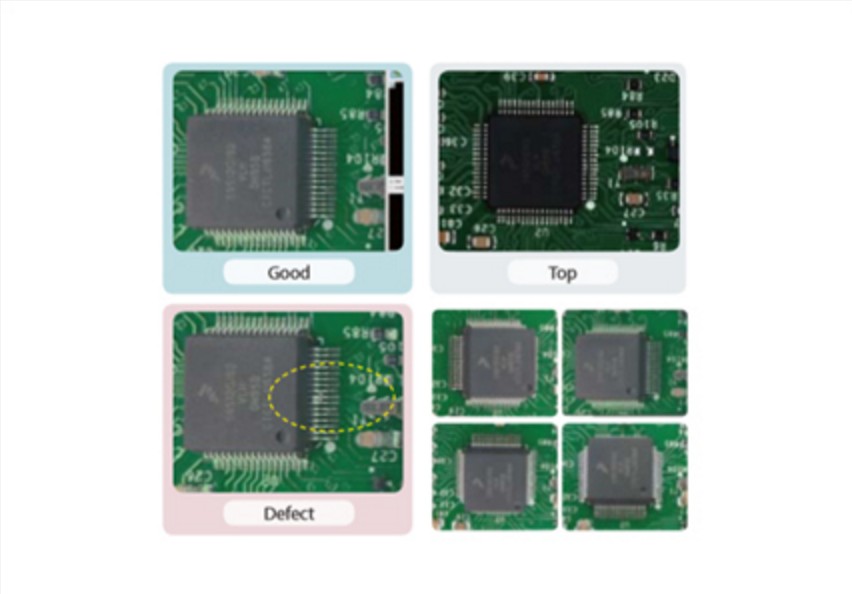

Convenient inspection with side-mounted camera

Through four high-definition cameras and the TOP camera, real-time checks are conducted using our proprietary optimized algorithms for side detection.

• 4-Way Side Camera(Option)

• Detect internal bridge welds not visible in the Top Camera

• Detectable Connector Interior

• Leveraging the convenience of existing algorithms for teaching

3D Measurement/Inspection for 30MM High Components

We utilize our own technology in the EAGEL 3D AOI to provide various functions, including the ability to inspect heights up to 30mm.
