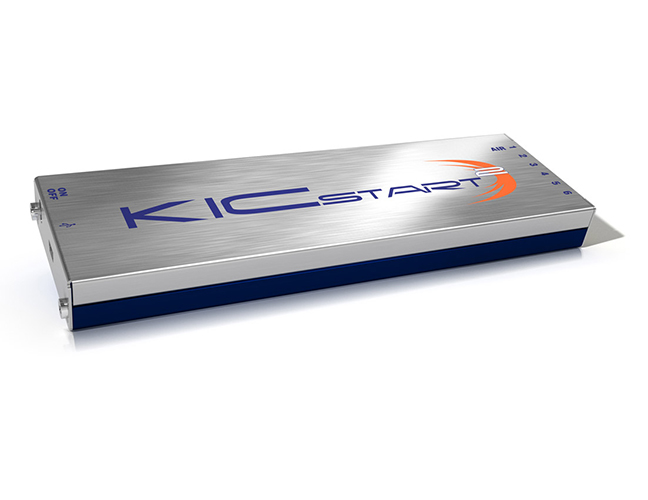

The economy model KIC Start2 was launched in early 2013. The second generation features more hardware and software technology upgrades from the previous model, such as a smaller size, USB interface transmission, and the KIC Start2 software key, etc.
Superiority of hardware and software:
Lightweight, affordable, and easy to use
The newly launched KICStart2 by KIC doesn't aim to be just another temperature gauge. However, it excels in delivering exceptional results within its design capabilities. This 6-channel, compact, and cost-effective temperature gauge leverages the powerful advantages of KIC's image-based user interface. The KICstart2 is particularly suitable for users who need to quickly and accurately obtain temperature curve data without the need for additional optimization settings. The high-performance, low-cost KICstart2 is a temperature gauge that fits any budget.
A challenge faced by the numerous temperature-measuring products on the market isn't whether they can collect enough data, but how to help users interpret the vast amount of data collected. KICstart2 employs the concept of KIC's proprietary Process Window Index (PWI), which measures the quality of each temperature curve with a single number.
Technical Specifications
Precision | ±0.5C |
Resolution | Adjustable from 0.10C to 0.30C |
Operating Temperature for Indoor Unit: | 0°C to 105°C |
Sampling Frequency: | 0.1 to 10 times per second |
Sample Quantity: | 45,000 |
Connect to computer via: | USB 2.0 (Std-A/Mini-B) |
Thermocouple Compatibility: | Standard K Type |
Temperature Range: | -150°C to 1050°C |
Computer Function: | Connectable to PC |
Power Requirements: | 9V Alkaline Battery |
Dimensions: | Dimensions: (Length x Width x Height mm) |
| Configuration | Dimensions (mm) - Length x Width x Height | 150 degrees | 200 degrees | 250 degrees | 300 degrees |
| Thermal Insulating Cover for Anti-Scald Stainless Steel | 296X80x29 | 21.0 | 14.0 | 10.0 | 8.0 |
Computer Configuration
Dual-core/1GHz processor, 2GB memory
2GB hard drive storage
Monitor Resolution: 1024x768 / 16-bit
1 available USB port (for data download)
1 available USB port (for inserting the encryption dog)
Microsoft Windows XP, Vista, or 7 (32-bit or 64-bit)
When KIC's software is running other applications on the computer, it may require a higher-performance CPU and more memory.
