New Generation Temperature Control Testing Instrument

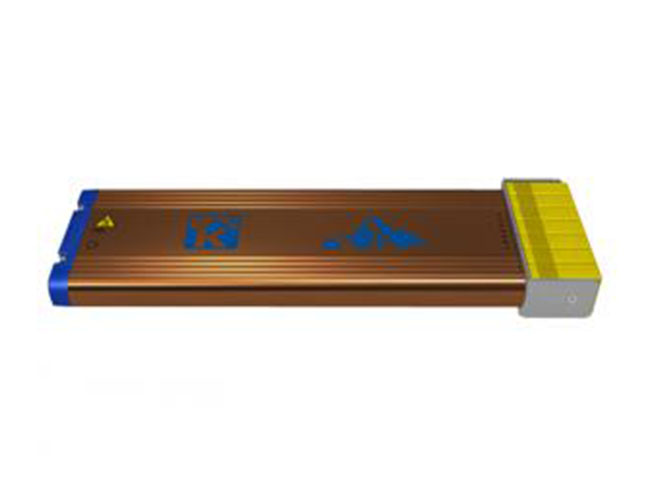

· The new generation K2 Furnace Temperature Tester with Temperature Control is designed to replace the older version series.
High cost-performance ratio
· Compact and durable hardware structure
· Suitable for lead-free soldering conditions
· Furnace Temperature Tester K2 Specification:
Accuracy: ±0.5℃
Resolution: 0.1℃
Internal operating temperature: 0°C to 85°C
Sampling Frequency: 0.1 to 10 per second
Data Point: 224,640
PC Link: USB2.0 (Std-A/Mini-B)
Power Requirement: (3) AAA Batteries
Thermocouple Compatibility (7, 9 Channels): Standard K-Type Thermocouple
Temperature Range: -150℃ to 1050℃
Dimensions (Length x Width x Height mm): 7 Channels: 206.0 x 60.0 x 17.0
9 Channels: 206.0*75.0*17.0
K2 Oven Temperature Tester Anti-Stupidity and Smart Technology
· Automatic temperature triggering technology. Ensures test consistency and stability. Prevents K² equipment from thermal shock.
High-precision recording hardware.
· Engineers determine settings for quality or yield requirements during data entry:
△PWI's Process Focus Solution
△ Focus on speed solutions
△Peak temperature value
· K² is a tool accessible to operators, technicians, and engineers.
K2 Furnace Temperature Tester Automatic Temperature Control Program
· KIC's optimization searches through all possible combinations of temperature zones and chain speeds, selecting the optimal furnace temperature settings for each new product in just seconds.
· Users can optionally define the temperature control mode:
Crafting Center Setup
△ Quick Chain Speed Settings
△Low-power consumption setting
Automated review and analysis of temperature curves
· KIC utilizes its patented PWI technology to automatically browse and determine curve temperatures, displaying process results, i.e., pass rate:
△PWI over 100 = Process Unqualified
△PWI equals 100 = process is at the critical line
△PWI less than 100 = Process Qualified
△PWI equals 0 = Qualified Process
· Instantly view the pass rate of temperature curves
· Instant temperature curve structure display
· Instantly export temperature curve logs
Computers and mobile terminals, bidirectional temperature data acquisition technology (optional)
· Method for viewing temperature data:
△Computer for installing test programs
△ Authorized Android mobile terminal devices
· Features the ability to share selected curve data
