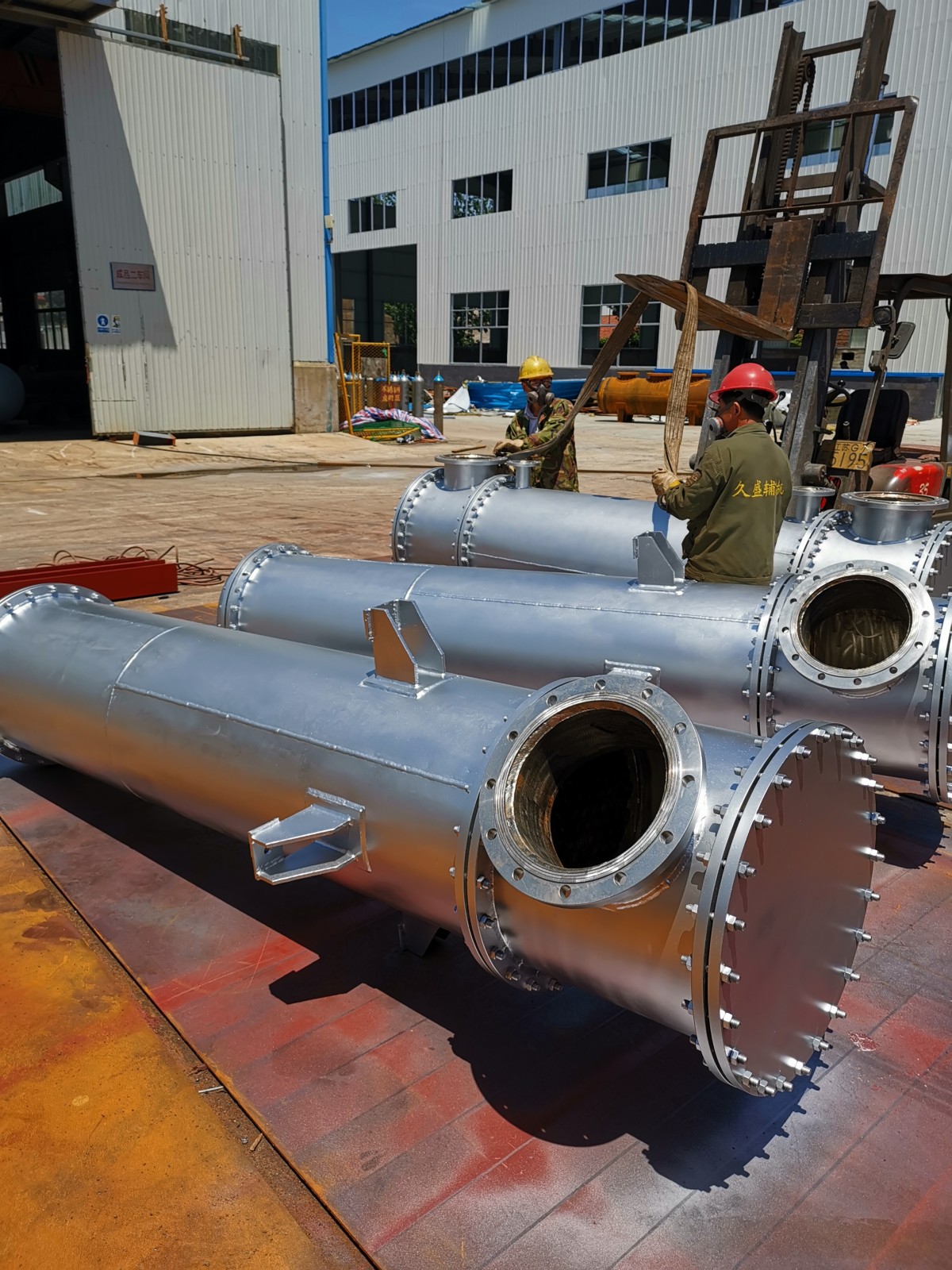

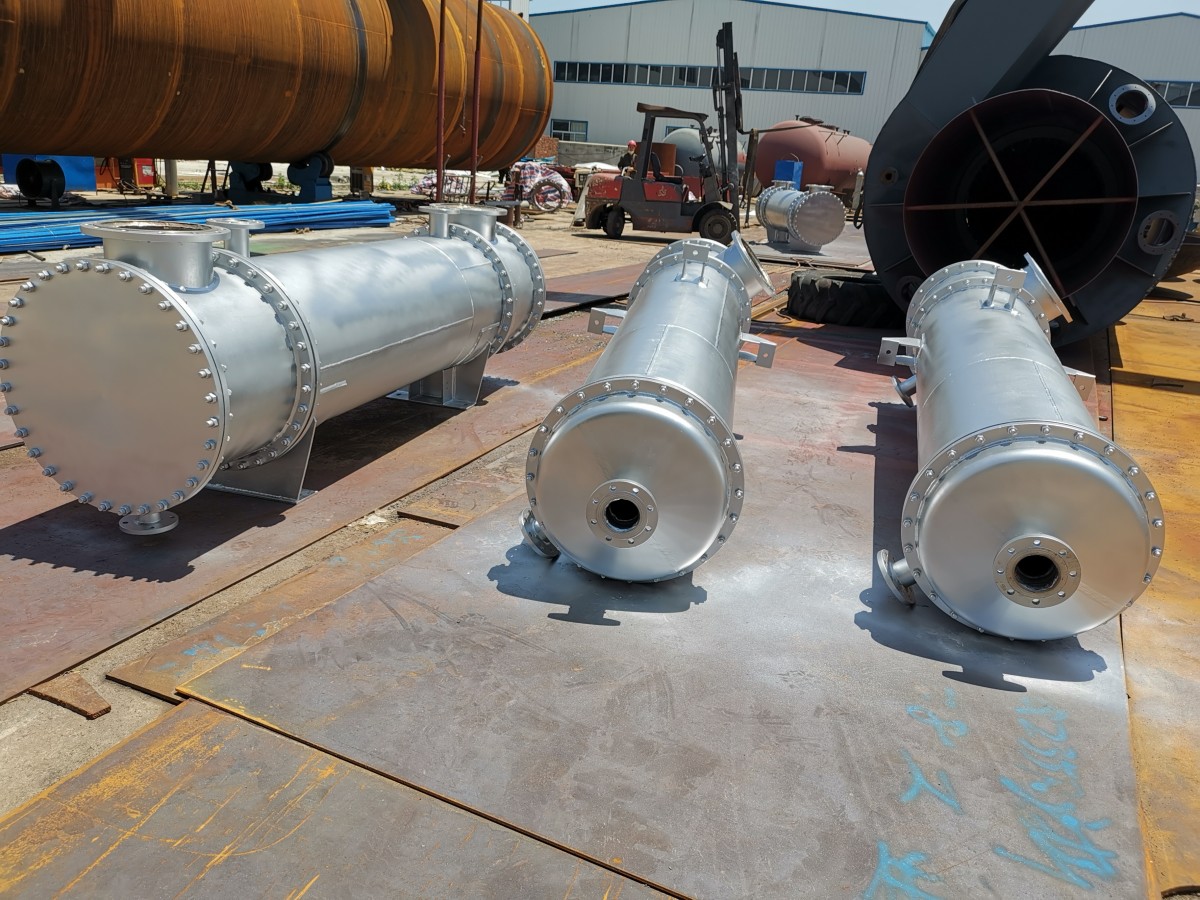

Pipe-type Cool Oil Heater Utility Model Patent∶ZL 2014 2 0456485.0

One. Usage and Features∶

（1Usage

Turbines, fans, coal mills, pumps, and marine propulsion systems in industrial and mining enterprises all require oil coolers for the lubrication of large and medium-sized machinery. Based on the strengths of similar products, our company has conducted extensive experiments on the vibration of the oil-side laminar flow in the heat exchanger tubes, successfully developing a new type of tubular oil cooler.

（2Product Structure and Working Principle

The tube-type oil cooler operates with the oil flowing through the shell side and water through the tube side. The heat transfer coefficient on the oil side outside the tube is [insert coefficient value here] times that of the inside tube side.120-10The thermal resistance is primarily on the oil side. This equipment replaces the traditional bow-shaped baffle with a swirl guide plate. The main principle is that the cooling oil, after being pumped into the shell of the cooler, is guided by the swirl guide plate to rotate and move forward. As it rotates, the oil also washes along the circumference of the pipes. The structural parameters of the pipe are the result of optimal selection through multiple comparative tests, offering excellent performance and safety, making it an ideal auxiliary equipment for steam turbine units.

（3Product Features

Tubular oil coolers have the following advantages compared to other types of oil coolers:∶

1. High thermal efficiency is a feature of the plate-type cooler.2-3Multiple

2.Compact structure∶Its compactness is superior to plate heat exchangers.1-2Multiple;

3.Low oil resistance due to the use of swirl baffles, with oil entering in a tangential flow, which is conducive to fluid operation.

4.Long service life, easy installation and maintenance∶The heat exchange tubes have minimal thermal expansion stress, thus eliminating common issues like cracking and leakage. Additionally, their tube-shell structure facilitates easy installation and maintenance.

II. Product Series Performance and Technical Specifications

Condensing Turbine Coolant Performance and Specifications

Section 3: Product Dimensions∶

Section 4: Product Selection∶

1Intended Users of the Product

This product series is specifically designed for condensing steam turbines in thermal power plants and various heating steam turbines. It is also suitable for the lubrication and cooling of power oils in industrial and mining enterprises for boiler feed pumps, coal grinders, blowers, and exhaust fans of power machinery.

2Product Model Patterns....

3Selection Guidelines

A wide variety of turbine types are designed by domestic and international turbine manufacturers. Based on extensive data collection, our company has compiled various ordering and selection schemes for turbine oil coolers, as shown in the table. If customers have special usage requirements, please contact our company. V. Installation of the oil cooler∶

1Preparation before installation

Coolant exchanger before shipment0.6mpaHydrostatic testing shall be conducted. However, prior to installation, the provisions of the "Technical Code for Construction and Acceptance of Electric Power Projects (Turbine Generator Set Chapter)" should be followed.∶“Cooling oil side should be operated under working pressure1.5Double the hydrostatic test pressure, maintain5Minute leak-free.

2Coolant Chiller Installation∶

（1The cooler is supported on pre-prepared brackets and can reliably meet its dynamic and static load requirements.

（2Due to the change from an arch-shaped baffle to a swirl guide, the cold oil cooler's oil inlet direction is clockwise; do not install it in reverse.
