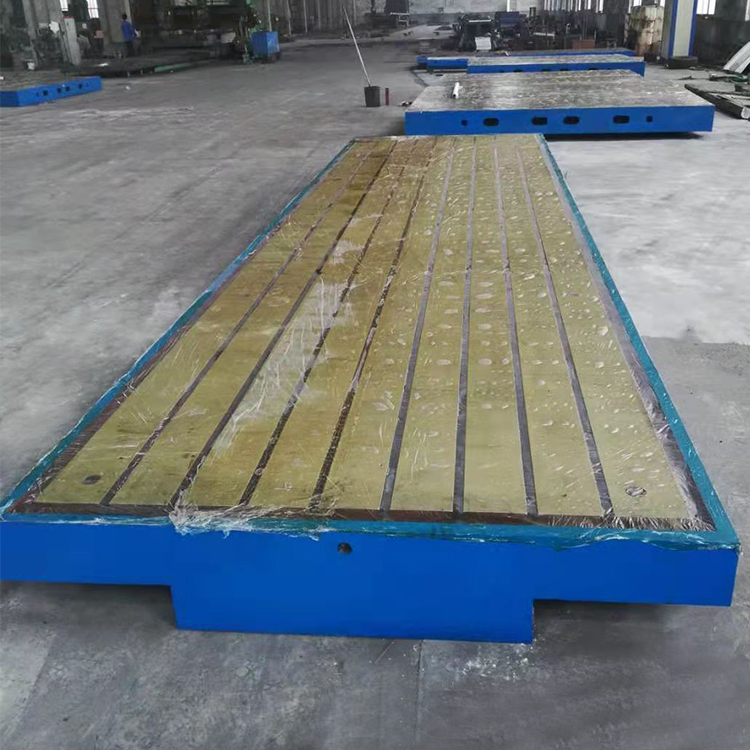

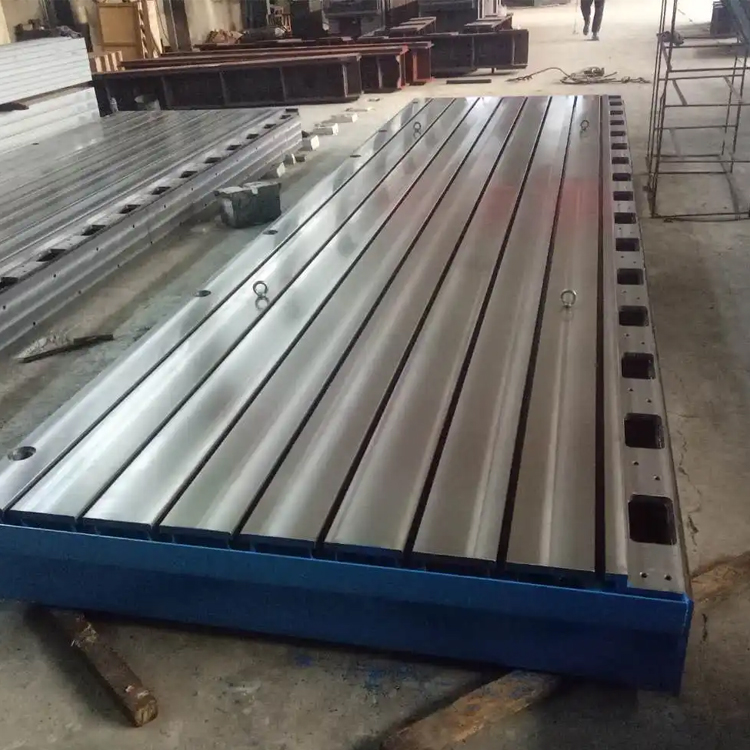

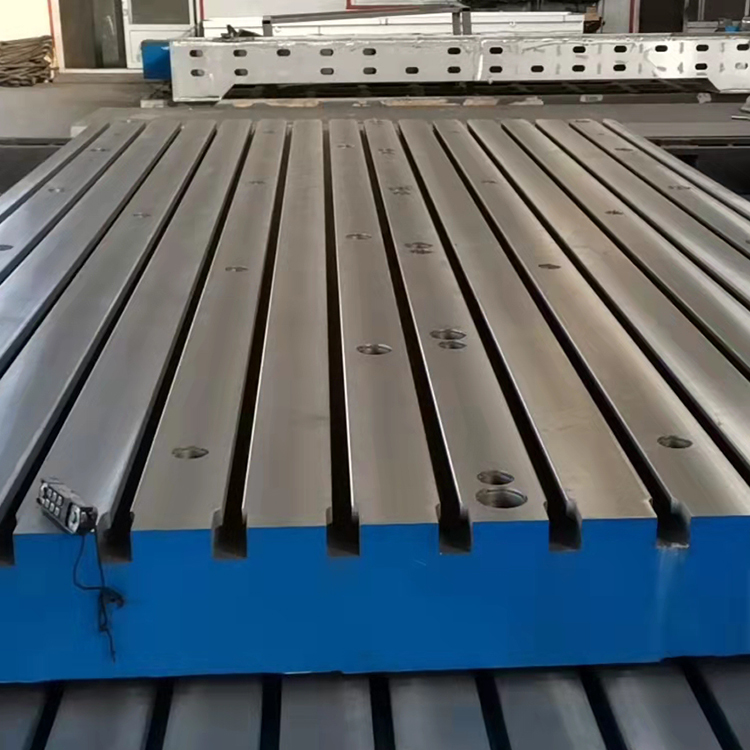

Cast Iron Platform Product Alias: Cast Iron Plate, Cast Iron Platform, Marking Platform, Inspection Plate, Measuring Plate, Grinding Plate, T-Slot Plate, Riveting Plate, Assembly Plate, Welding Plate

Cast iron platforms are manufactured according to the standard GB/4986-85, available in ribbed plate and box styles, with rectangular work surfaces. The material used is HT200, and the working surface is finished with scraping and grinding techniques. The surface can be equipped with V-shaped, T-shaped, U-shaped grooves, and circular and long holes. The flat plate is a plane datum instrument used for workpiece inspection or marking. The installation should be adjusted to be level, with the load evenly distributed across all support points. Avoid vibrations when operating at environmental temperatures of (20±5℃).

Cast Iron Platform Applications: Used for power tests of machinery and engines, equipment calibration, featuring good plane stability and toughness. The surface is equipped with T-slot, which can be used for fixing experimental equipment.

Cast Iron Platform Material: The working surface of cast iron HT200-300 has a hardness of HB170-240. After two artificial treatments (artificial annealing at 600-700 degrees and natural aging for 2-3 years), the product's precision remains stable.

Cast Iron Platform Specifications: 100×100 to 3000×6000 (Assemblies larger than this size can be assembled for use or custom made according to drawings.)

Cast Iron Platform Precision: Executed according to standard metrological inspection procedures, with four grades: 0, 1, 2, and 3.
