Cast Iron Platform Product Synonyms: Cast Iron Flat, Cast Iron Platform, Marking Platform, Inspection Flat, Measuring Flat, Planishing Flat, T-Slot Flat, Riveting Flat, Assembly Flat, Welding Flat

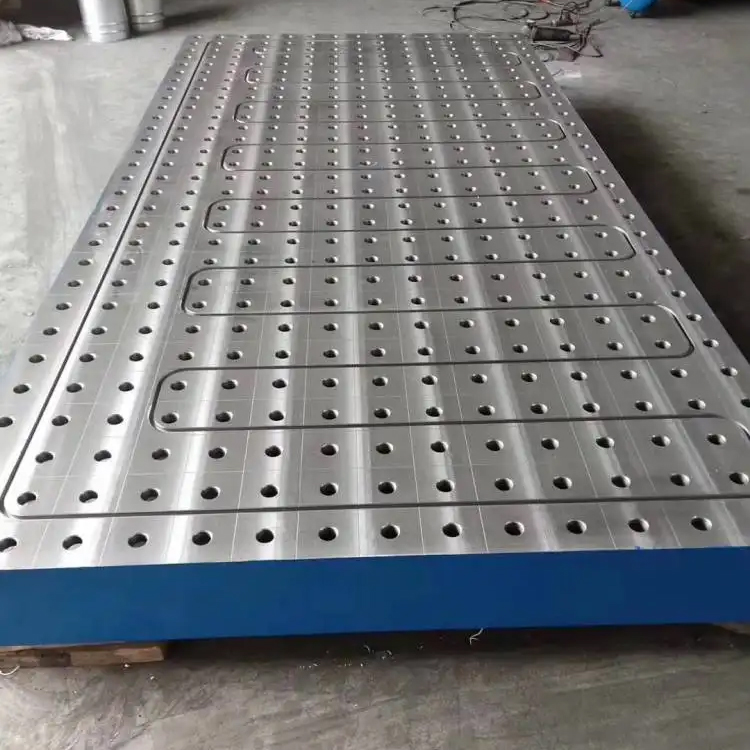

Cast iron platforms are manufactured according to the standard GB/4986-85, available in ribbed and box styles, with rectangular work surfaces. The material used is HT200, and the work surface is finished using scraping and polishing techniques. V-grooves, T-grooves, U-grooves, circular holes, and long holes can be added to the work surface. The flat plate is a plane datum tool used for workpiece inspection or marking. The installation of the flat plate should be adjusted to be level, with the load evenly distributed across all support points. Avoid vibration when in use at an environmental temperature of (20±5℃).

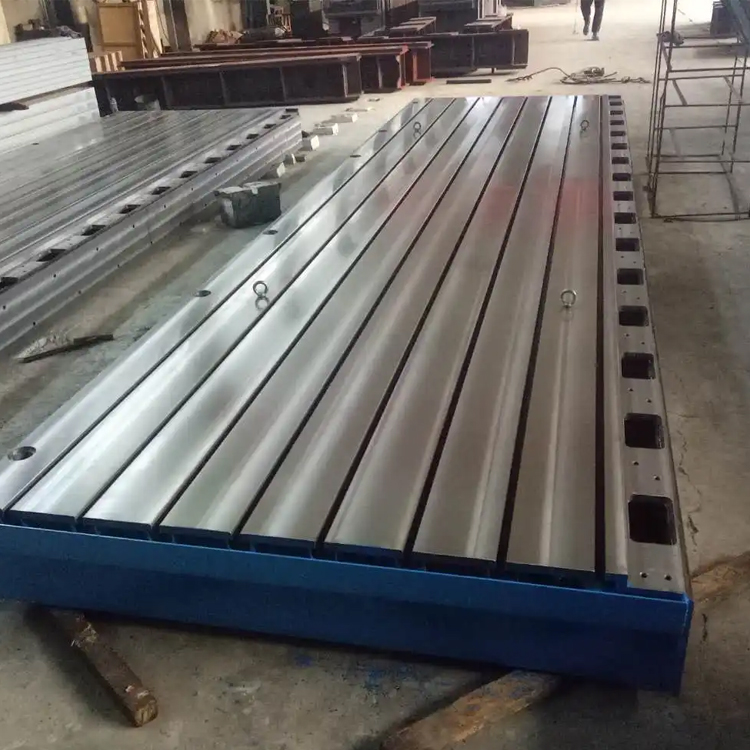

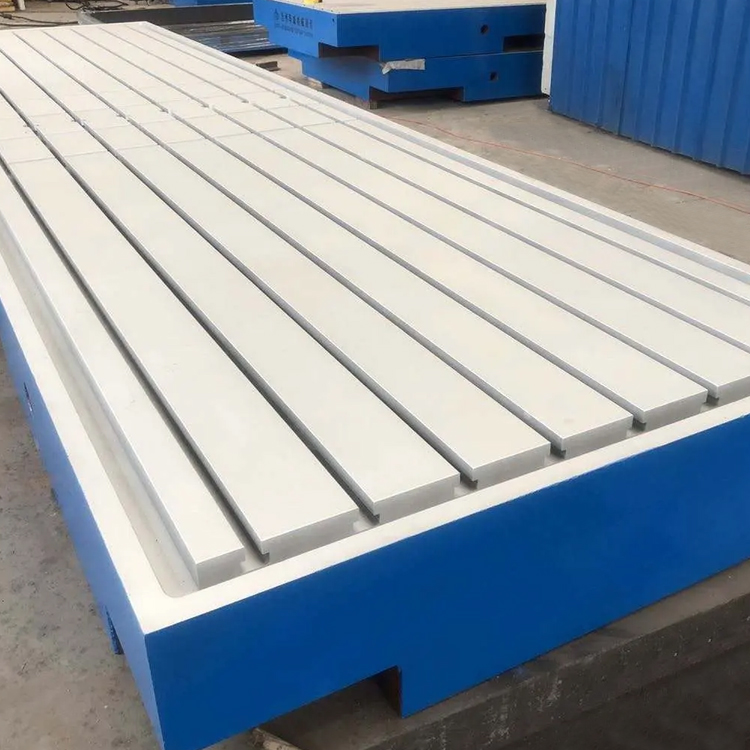

Cast Iron Platform Usage: Designed for power tests of machinery and engines, equipment tuning, featuring good flat stability and toughness. The surface is equipped with T-slot for securing experimental equipment.

Cast Iron Platform Material: Cast Iron HT200-300, working surface hardness of HB170-240. After two artificial treatments (artificial annealing at 600-700°C and natural aging for 2-3 years), the accuracy of the product remains stable.

Cast Iron Platform Specifications: 100×100 to 3000×6000 (Assemblies larger than this size can be assembled for use or custom made according to drawings.)

Cast Iron Platform Accuracy: Executed according to standard metrological verification procedures, with four grades: 0, 1, 2, and 3.
