Ring-type Transformer Selection Precautions!
Mandatory to provide
Input Voltage: (such as 240V, 220V, 110V, 100V, etc.).
2: Output Voltage: Specify whether it's no-load voltage or full-load voltage.
3: Output Power per SetEach current set.
Frequency: (e.g., 50Hz, 60Hz, 400Hz, etc.)
5: Lead wire length.
We offer (options).
6: Diameter, height, inner diameter. If not provided, our company will design according to an optimized scheme! Or directly communicate with the engineer!
7: Installation Method. Standard: Place flat as per regular practice. Special requirements:Communicate directly with the engineers!
8: Application: Such as for audio power generators, chargers, nebulizers, instruments, and voltage stabilizers! Our company designs according to the specific characteristics of different applications!
9: Usage Environment: (Outdoor, Indoor)(Humidity, Temperature) (Dust)(Vibration), (Waterproof and Moisture-Proof), (Flame Retardancy Rating)
10: Lead-out terminal. Standard: Not provided. High configuration: Can provide terminals for some models.
11: Wire routing position, sequence! Default: Primary-secondary crossover wiring.
Insulation GradeDefault:B Grade (130°C), or other F Grades（155°C）H Grade（180°C）。
13: Pressure Resistance Default:National Standard
14: Other special requirements to be noted.
Are you struggling with this?
Paid a premium only to find out it's a trader, not a manufacturer.
2. Looked for a product, ended up with a company that sells trash.
3. Parameters or requirements cannot be met; customization is not possible.
4. Received goods do not match the order requirements.
5. The price is cheaper, but the received goods are indeed substandard and poorly made.
6. Every order comes with a few hiccups, and continuous collaboration feels uncertain.
7. Issues with products not being resolved.
Choose a well-established professional supplier of ring transformers! Surge Transformer from Jiangsu Nantong Haian Siter Electronics Co., Ltd.!Worried about this!
Pre-Sales Service: We offer you technical consultation and professional,One-on-oneTechnical skills and price inquiries welcome. We can provide product literature and invite you for an on-site production inspection.
In-service Support: Whether you're an existing customer or a new friend,Regardless of whether you're familiar with or not with ring transformers,Stele Electronics engineers will serve you with integrity, enthusiasm, and professionalism.
After-sales Service: Our company's productsRing transformerDuring the warranty period, if the product has inherent quality issues, the company will dispatch professional technicians for repairs and analyze the quality issues. Even after the warranty period, we offer caring service.
Please handle and handle the ring transformer with care during purchase!

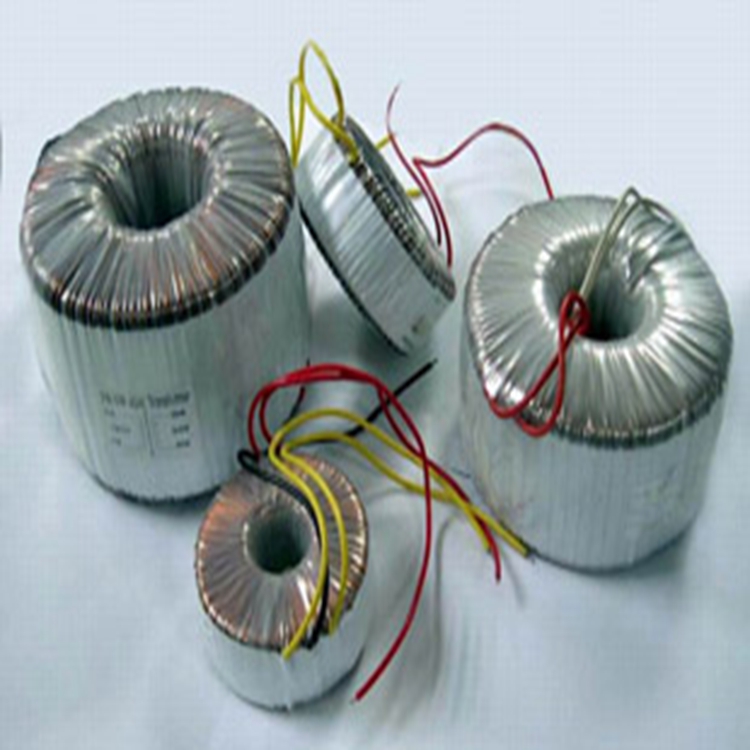

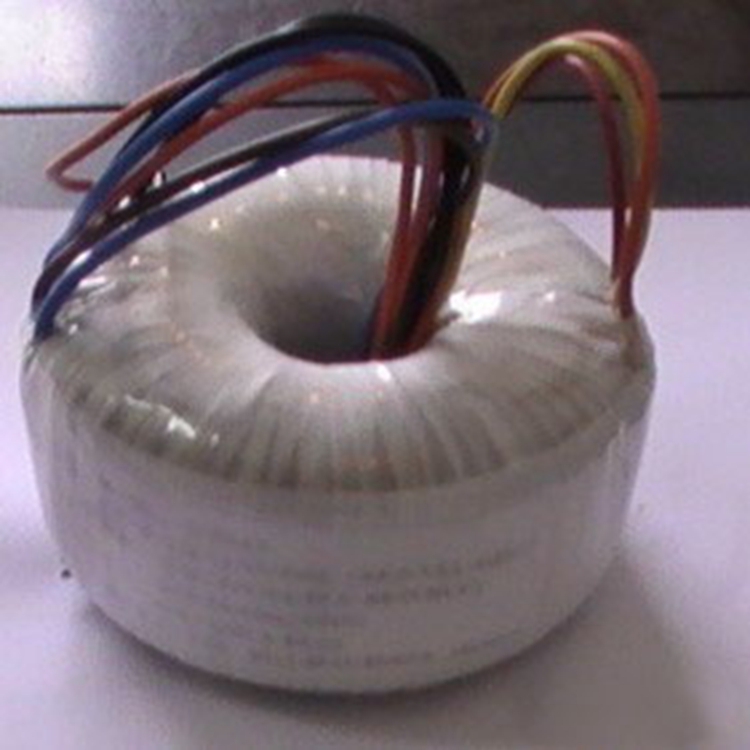

Ring-type Transformer Features:
Ring-core Transformer: Made of imported high flux low loss silicon steel sheets! The enameled wire is wound with double insulated high-strength enameled wire, featuring excellent electrical properties.
Introduction:
One, low standby energy consumption, with lower no-load losses, saving more energy during standby.
High efficiency, with energy conversion rates as high as 87%-95%, green power.
Three, electromagnetic radiation is significantly lower than that of any other type of transformer.
Four, excellent low-temperature characteristics; can start normally and operate for a long time in an environment of -40 degrees Celsius.
Five: Low internal resistance, strong anti-interference capability, compact size, and high cost-performance ratio for manufacturing high-power power supplies.
Six. Excellent electrical performance with far superior electrical strength and resistance to humidity and heat compared to both national and industry standards.
Ring transformers are used in applications such as self-control equipment, home appliance speakers, security monitoring systems, humidifiers, nebulizers, broadcast systems, solar wind energy, electronic communications, outdoor engineering lighting, and more.
