Suction dredger

⑴Suction nozzleStyleSand ExtractionVessel, also known asSiphon-styleA dredging vessel designed according to the customer's site, it utilizesHigh-pressure waterProcess soil and sandstoneEffective erosion and cutting, enableMudThe sand merges with water, increasing the liquid concentration, and then the mixture of sand and water is suctioned in and discharged to the site using a sand pump.

⑵ Due toSyringe ExtractionStyleSediment Extraction VesselBroad application range, wide operational condition coverage, capable ofExtractThe conveying, discharge, and treatment processes are completed in one go, enabling a continuous operation in the dredging process, thus gaining widespread application. This type of vessel has seen significant development, and construction units are all prioritizing the purchase and use of them.Suction吸入式Dredging vessel.

(3) Suction dredgerIt is not only applicable to operations and deployment in the B and C navigation areas of the Yangtze River system, but also to dredging, excavation, reclamation, and embankment reinforcement projects in other waterways, harbors, and lakes. Additionally, it is suitable for sediment removal and fill excavation in small and medium-sized reservoirs, river transportation embankments, agricultural water conservancy construction, and flood and drainage control.

Jet suction sand dredgerOverview

(1) This vessel is a general-purpose jet-suction dredger. It is a non-self-propelled, steel, monocoque-structured ship. The bow features an open-type lifting and lowering dredging device. The bow sides are equipped with two side-mounted winches to coordinate with the fixed winch at the stern for the vessel's positioning and construction. A propulsion propeller is installed at the stern to enable the vessel's free navigation.

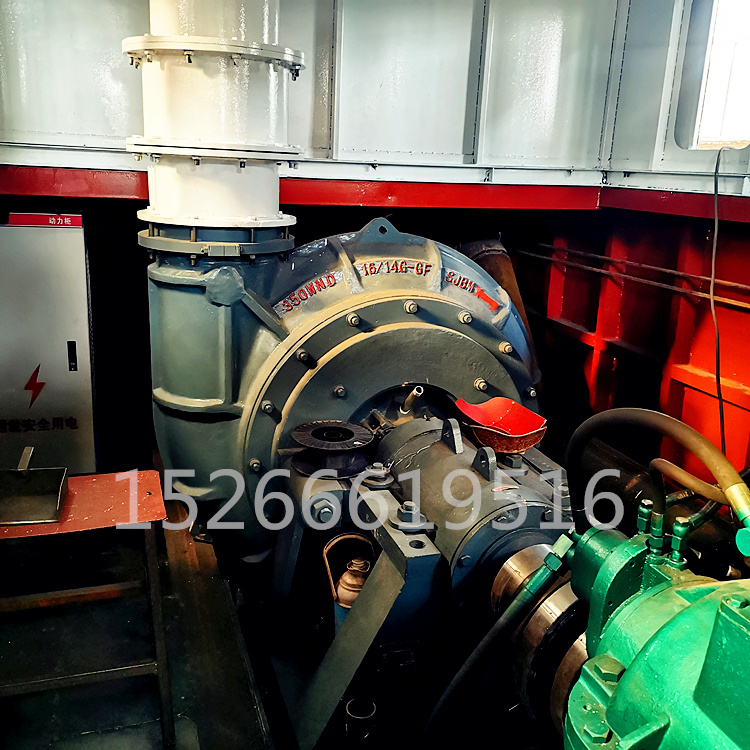

(2) This vessel extracts mud and sand using the interior sludge pumpImpeller, pump casing, and liner are made of Cr26 material.Used in conjunction with high-pressure centrifugal pumps.Driven by a diesel engine via a high-elastic coupling connected to the ship's gear box.

(3) This vessel is equipped with one main diesel engine, one auxiliary diesel engine that drives a high-pressure water pump, and the high-pressure water pump is a mid-open type supercharged centrifugal pump.

(4) One single-rod diesel-driven sand pump with lift and lower function.

(5) A diesel generator set provides power for the entire vessel.

(6) The entire vessel is blast cleaned and painted, equipped with night working lighting.

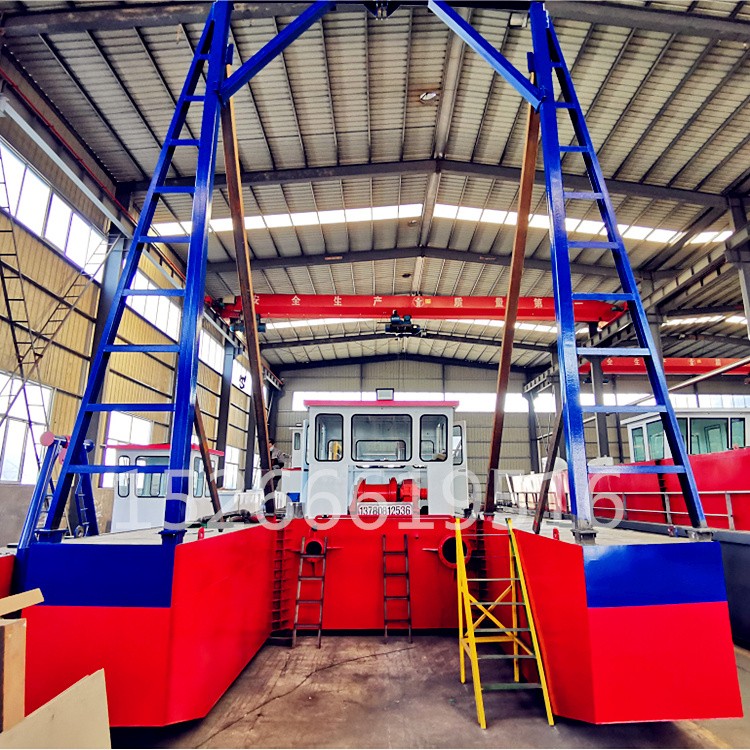

Manufacturing Scene

InstallationScenario

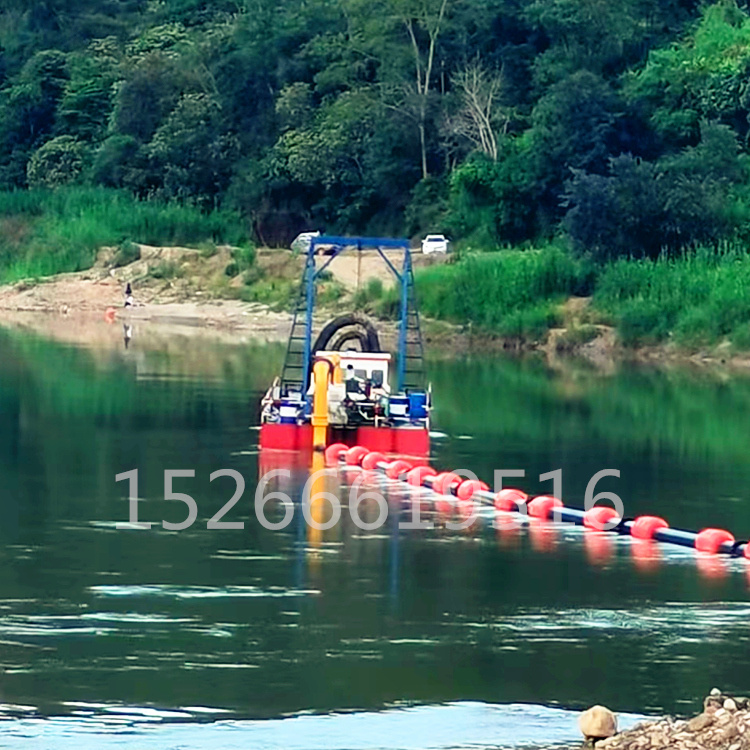

Construction Site

Configuration Parameters

After-sales service

1. Installation adjusted

After the goods arrive, we will send 1 experienced engineer to the site for installation assistance and guidance.

(2) Our assigned installation engineers can mentor apprentice personnel during the equipment installation and debugging process.

(3) If the shipowner purchasing our factory's equipment lacks suitable crew members, we can introduce skilled captains for on-site interviews.

2. Maintenance and Repair

(1) Diesel engines, generators, winches, dredge pumps, electrical systems, and hulls all come with a 12-month warranty. Paid services and parts are available for later maintenance.

(2) If your operators lack experience or need fine-tuning, simply report the issues to us, and we'll provide solutions. Every product undergoes in-house actual operation before shipment to ensure proper functioning.

3. Training

We will provide professional training and operation guides to help you solve any issues.

(2) We guarantee that the accessories are always in stock and will ship within 24 hours.

(3) We offer you a convenient parts delivery method, just let us know the identification label of the parts you need to replace.

(4) Each product configuration document we produce is stored in our database, ensuring that users only need to access it subsequently.

Thank you for your trust and support in Shandong Yongsheng Dredging Machinery Co., Ltd. We will deliver quality brand products to you. Yongsheng Machinery wishes you prosperity. Should you have any questions, please feel free to contact me. We look forward to collaborating with you and welcome you to visit our factory.

If you have any questions, please contact me. We look forward to collaborating with you and welcome you to visit our factory.

Best regards, tradersCheerio!
