Suction dredge ship

⑴Syringe aspirationPatternDredgingVessel, also known asSuction feedA dredging vessel designed according to the customer's site, it utilizesHigh-pressure waterProcessing soil and sandstoneEffective erosion and cutting, to makeClayThe sand merges with water, increasing the liquid concentration, and then the mixture of sand and water is suctioned and pumped to the site using a sand pump.

⑵ Due toSyringe aspirationStyleDredging vesselBroad application range, wide working condition coverage, capable ofExtractThe transportation, discharge, and treatment processes are completed in one go, enabling a continuous operation for the dredging process, thus gaining widespread application. This type of vessel has seen significant development, with construction units prioritizing their acquisition and use.Suction-injection typeDredging vessel.

(3) Suction dredgerIdeal for operations and deployments in the B and C navigation zones of the Yangtze River system, it is also suitable for other waterways, harbors, and lakes, including dredging, excavation, reclamation, and embankment reinforcement projects. Additionally, it applies to the dredging and blowing fill excavation of small and medium-sized reservoirs, river transportation embankments, agricultural water conservancy construction, flood control, and drainage.

This jet suction sand dredgerOverview

(1) This vessel is a general-purpose jet suction dredger. It is a non-self-propelled, steel, monocoque structure ship. The bow is equipped with an open档falling dredging device. Two horizontal winches are installed on both sides of the bow, which, along with the fixed winch at the stern, enable the ship's positioning for construction. A propeller is mounted at the stern for the vessel's free navigation.

(2) This vessel's sand and mud extraction is via the internal sludge pumpImpeller, pump housing, and liner are made of Cr26 material.Used in conjunction with high-pressure centrifugal pumps.Driven by a diesel engine through a high-elastic coupling connected to the marine gear box.

(3) This vessel is equipped with one main diesel engine, one auxiliary diesel engine to drive a high-pressure water pump, and the high-pressure water pump uses a middle-open type supercharged centrifugal pump.

(4) A single-cylinder diesel-driven sand pump hoist.

(5) A diesel generator set provides power for the entire vessel.

(6) Entire vessel abrasive blasting and painting, equipped with night working lighting.

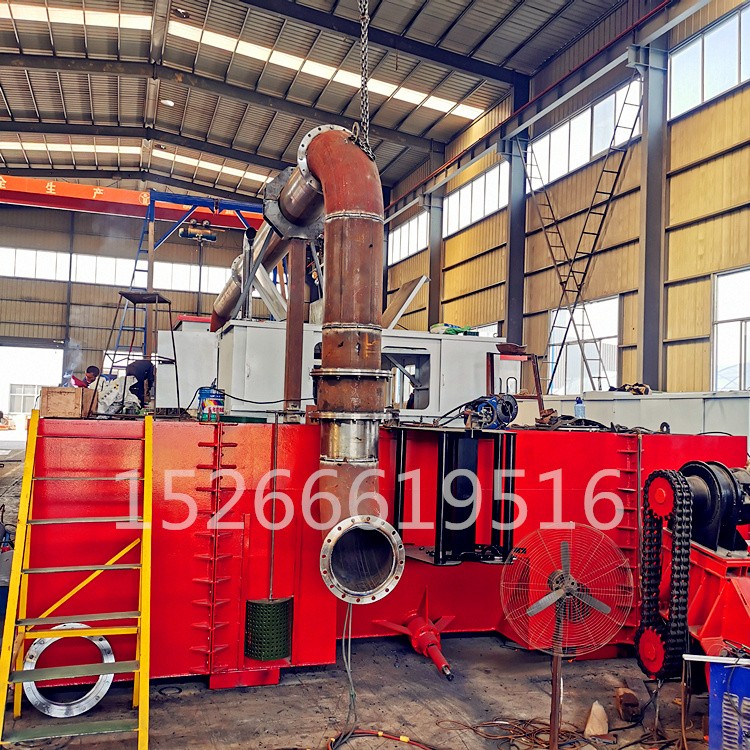

Manufacturing Scene

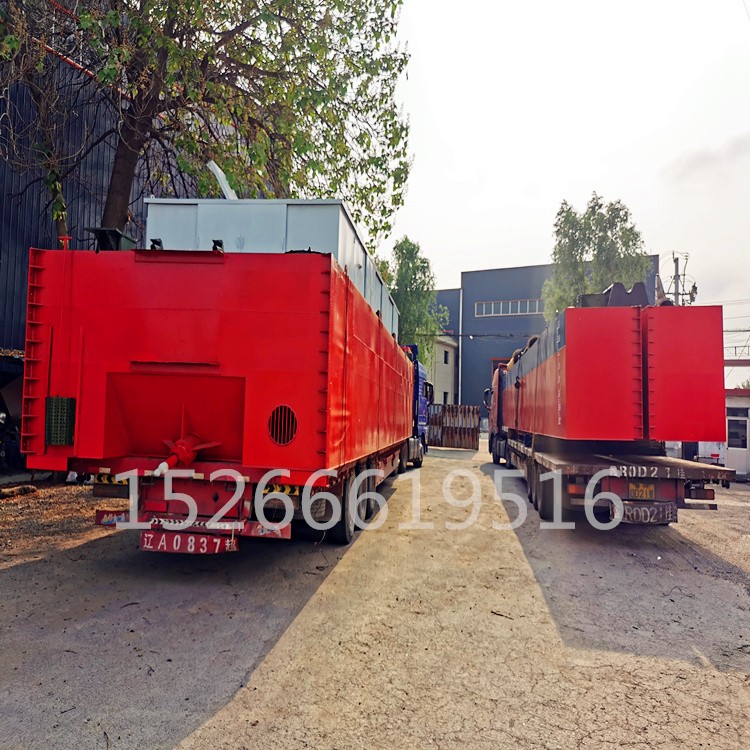

InstallationScenario

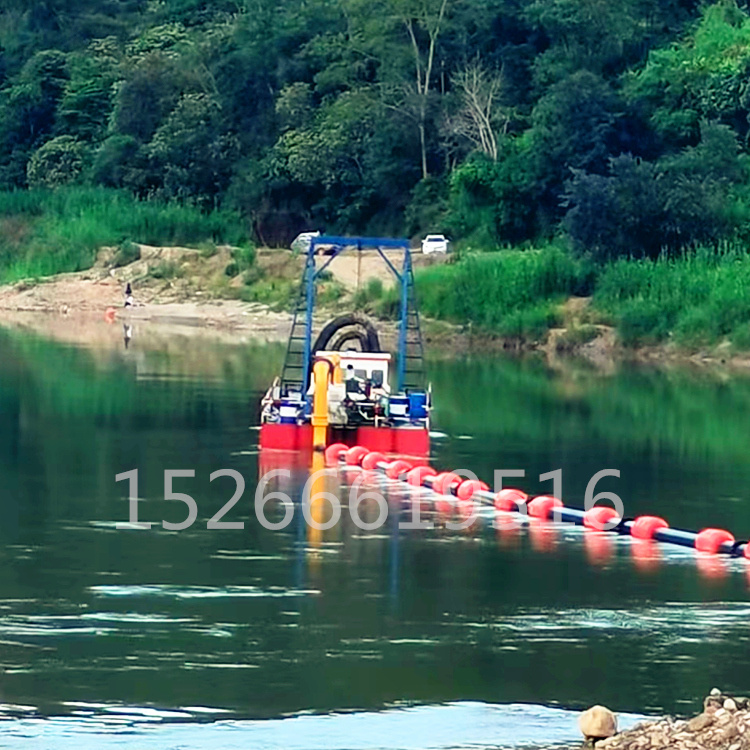

Construction Site

Configuration Parameters

After-sales Service

1. Installation and adjustment

After the goods arrive, we will send 1 experienced engineer to the site to assist with installation and provide guidance.

(2) Our company's installation engineers can mentor trainees during the installation and debugging process.

(3) If the shipowner purchasing our factory's equipment lacks qualified crew members, we can introduce experienced ship captains for on-site interviews.

2. Maintenance and Repair

(1) Diesel engines, generators, winches, dredge pumps, electrical distribution systems, and hulls all come with a 12-month warranty. Paid services and spare parts are available after the warranty period.

(2) Should your operators lack experience or need fine-tuning, simply report any issues to us, and we'll provide solutions. Every product is factory-tested before shipment to ensure proper operation.

3. Training

We will provide professional training and operation guides to help you solve problems.

(2) We guarantee the availability of spare parts and offer shipment within 24 hours.

(3) We offer you a convenient parts delivery method, just let us know the model number of the parts you need to replace.

(4) Each product configuration document we produce is archived for future reference.

Thank you for your trust and support in Shandong Yongsheng Dredging Machinery Co., Ltd. We will deliver quality brand products, and Yongsheng Machinery wishes you prosperity. Should you have any questions, please contact me. We look forward to collaborating with you and welcome you to visit our factory.

If you have any questions, please contact me. We look forward to collaborating with you and welcome you to visit our factory.

Best regards in tradeQi!
