Mechanical dredge pump ship

⑴Suction dredger, also known as a mud and sand suction dredger, is a model designed according to the customer's site. It uses a hydraulic cutter to chop or mix soil and sandstone, blending the sand with water to increase the liquid concentration. Then, a sand pump is used to suction and transport the mixture of mud, sand, and water to the site.

⑵ Due to the cutter suctionDredgingThe vessels are suitable for a wide range of waterways and operating conditions, capable of completing excavation, transportation, discharge, and processing in a single operation. This allows for continuous dredging operations, leading to their widespread application. This type of vessel has seen significant development, and construction units are prioritizing the purchase and use of cutter suction dredgers.

(3) Suction dredgeExtracted sandThe vessel is suitable not only for operations and deployment in the B and C navigation areas of the Yangtze River system, but also for other waterways, harbors, and lakes in projects such as dredging, excavation, reclamation, and embankment reinforcement. It is also applicable to the dredging and blowing filling excavation of small and medium-sized reservoirs, river transportation embankments, agricultural water conservancy construction, flood control, and drainage.

DredgingShip Overview

(1) This vessel is a non-self-propelled, steel-hulled, monocoque three-hull assembled dredger powered by a diesel engine, equipped with a bridge frame at the bow and steel piles for mooring at the stern.

(2) The ship's绞刀 is driven by a low-speed, high-torque hydraulic motor through a gear box.The绞刀轴is made ofHigh-qualitySupporting with double-row spherical roller bearings.

(3) This vessel is equipped with an in-hull sludge pump.Impeller, pump casing, and liner are made of Cr26 material.Driven by a diesel engine through a high-flexible coupling, the ship's gear box is powered.

(4) This vessel's winch employs a cycloidal needle reducer motor for driving via a drive shaft, while the lateral winch, bridge winch, and stern positioning winch operate in an electric mode.

(5) This vessel is equipped with two diesel engines, with the main engine powering the sludge pump and the auxiliary engine providing the entire ship's electrical power through a diesel generator set.

(6) The entire vessel is blast cleaned and painted, equipped with night work lighting.

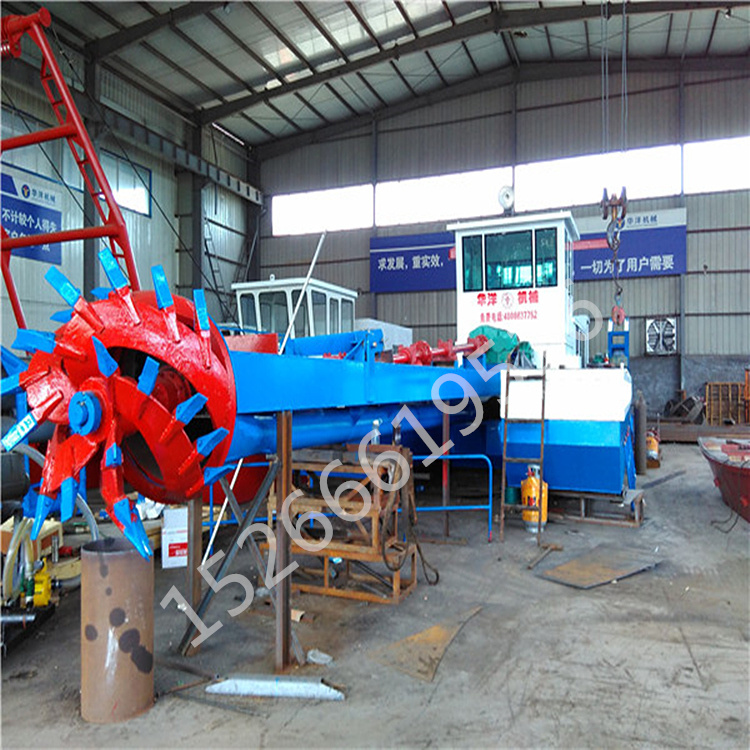

Manufacturing Scenario

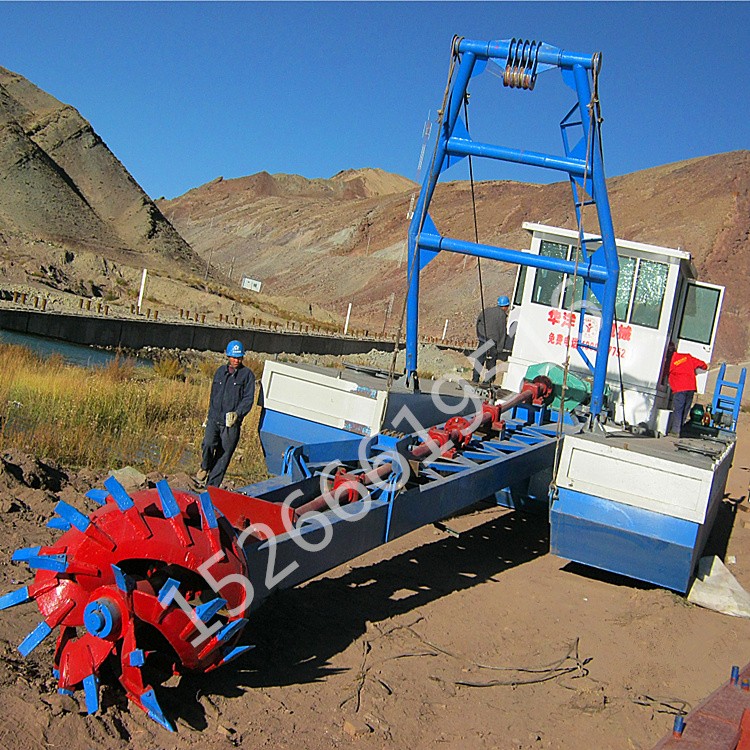

InstallationScenario

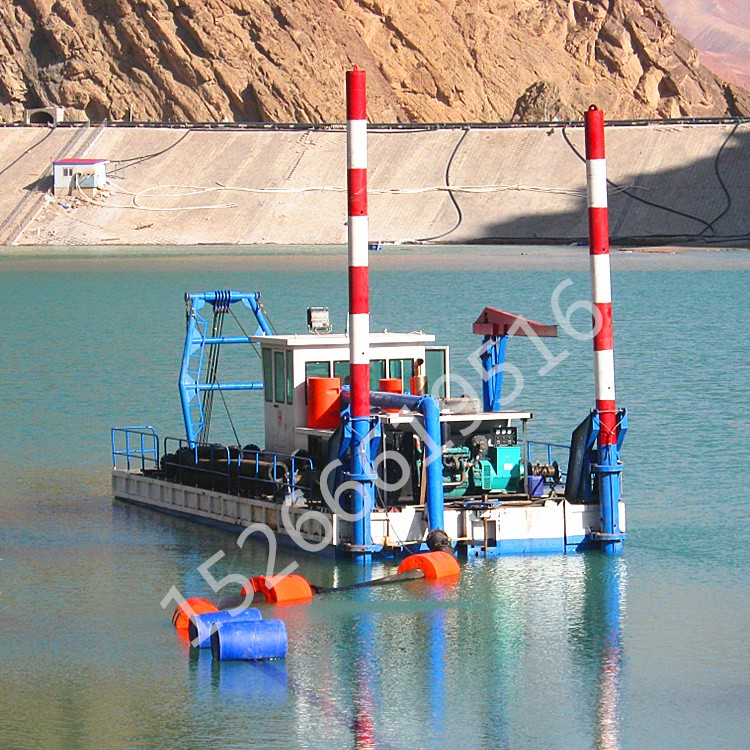

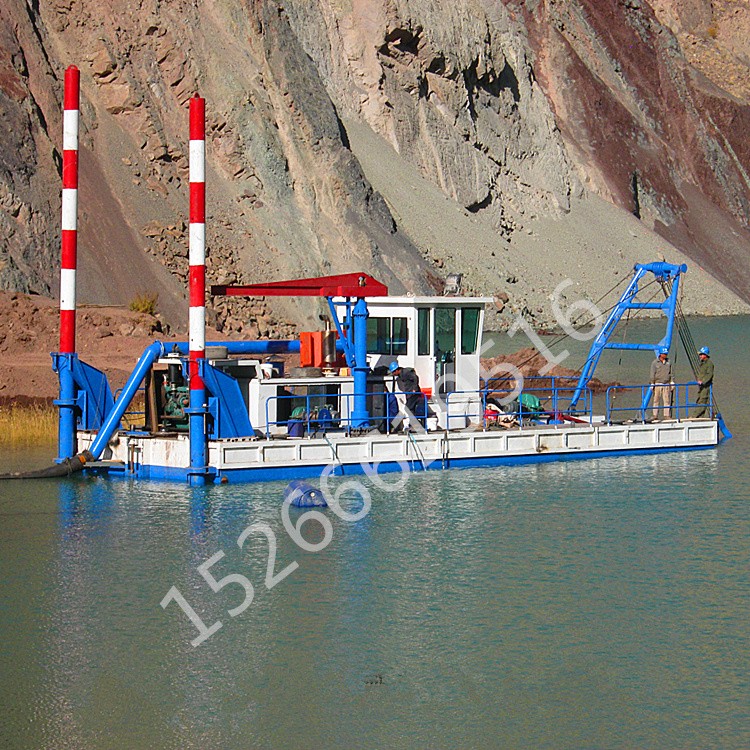

Construction Site

Configuration Parameters

After-sales service

1. Installation adjusted

After goods arrive, we will send 1 experienced engineer to the site to assist with installation and provide guidance.

(2) Our dispatched installation engineers can mentor apprentice personnel during the installation and debugging process.

(3) If the shipowner purchasing our factory's equipment lacks qualified crew members, we can introduce skilled captains for on-site interviews.

2. Maintenance and Repair

(1) Diesel engines, generators, sand pump, winches, electrical distribution systems, and hulls all come with a 12-month warranty. Paid services and parts are available for later support.

(2) If your operators lack experience or need fine-tuning, simply report the issues to us, and we'll provide solutions. Every product undergoes in-house actual operation before shipment to ensure proper functioning.

3. Training

We will provide professional training and operation guides to help you resolve issues.

(2) We guarantee that the accessories are always in stock and will ship within 24 hours.

(3) We offer you a convenient parts delivery method, just let us know the identification label of the parts you need to replace.

(4) Each product configuration document we produce is archived for future reference, ensuring users only need to access them.
