Airport Integrated Communication Command and Dispatch System Solution

Background of the Plan:

Due to the rapid growth of the socio-economic landscape, an increasing number of Chinese citizens are opting for air travel, leading to an explosive surge in passenger throughput at airports. The airports feature expansive areas and a variety of buildings.Complex in natureSampleExclusive features such as high personnel density.Increased communication needs and requirements for continuous airport operations.

Solution:

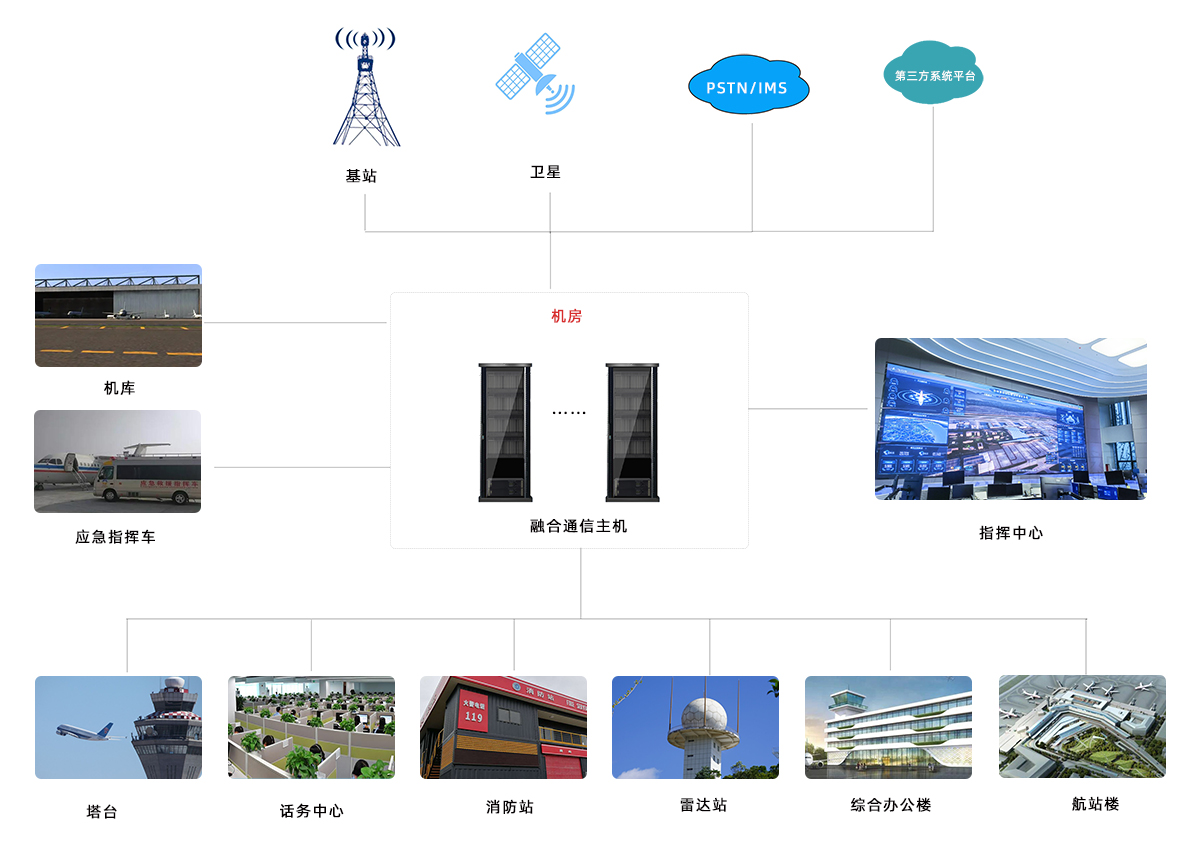

Xiaobeng Technology's Integrated Communication Dispatching System, in addition to offering traditional voice calls and dispatching services, also enables connectivity with multiple systems such as video surveillance, fire alarms, and broadcast systems.Linkage, effectiveThe company's news content is missing, please provide the text to be translated.Ensured seamless communication across all airport departmentsUnified coordination and command across endpoints.

Solution Advantages:

Robust scheduling and integration capabilities

The Xiaobeng Integrated Communication Scheduling System is a unified solution that merges TDM architecture with IP networks, offering a range of multimedia scheduling services including voice dispatch, video联动 scheduling, teleconferencing, SMS notifications, broadcast alerts, trunking dispatch, and gas alarm联动. It supports integration and development with third-party data services, security alarms, emergency response plans, and GIS systems, forming a robust multimedia communication platform.

Voice Scheduling

The Dispatch Console allows for scheduling various types of communication terminals, including analog/IP phones, mobile phones, walkie-talkies, etc., offering features such as individual call, group call, rotation call, phone conference, force insertion, force disconnect, auto-answer, listen-in, mute, transfer, roll call, and proxy answer.

Video Scheduling

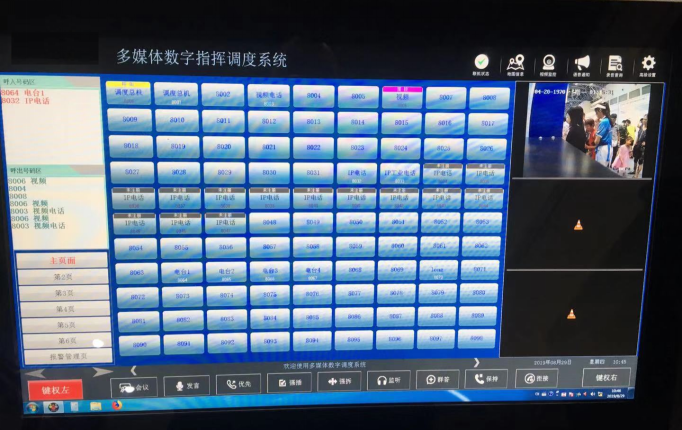

One-Touch Dispatching: This feature allows for the binding of network cameras or analog cameras with landlines or mobile phones and other communication terminals. When the dispatch console calls the terminal, the system automatically retrieves the corresponding surveillance video and displays it on the dispatch console, enabling both audio and video integration for unified command and dispatching.

Broadcast Scheduling

● Supports functionalities such as voice notifications, public announcements, shout announcements, TTS text-to-speech broadcasting, tiered broadcasting, command broadcasting, scheduled broadcasting, and task process broadcasting.

● In the event of an emergency, an emergency broadcast can be activated manually with a single click (or automatically). Video interconnection is also supported.

● The system can be pre-set with multiple scheduling plans for different time periods, regions, and broadcast content.

Leaders or dispatchers can broadcast announcements through landlines, mobile phones, or dispatch consoles and other terminals. The system supports concurrent broadcasting from multiple sources and microphones.

Text Message Scheduling

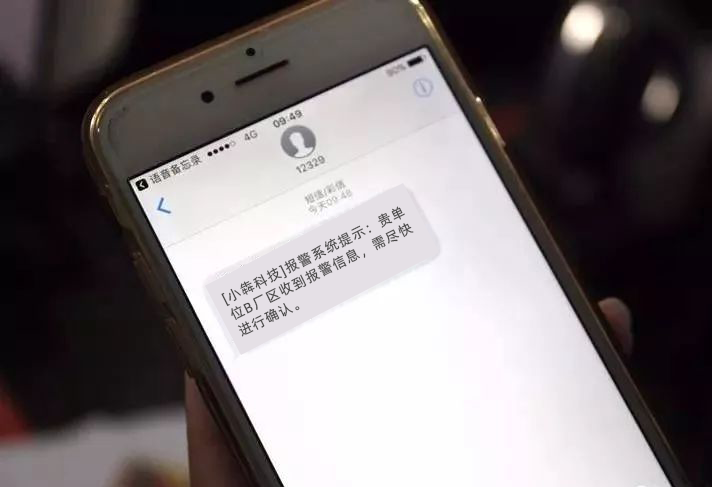

Under normal circumstances, dispatchers can manually send text messages to the mobile terminals of relevant personnel through the dispatch console. In emergency situations, following the procedures set by the contingency plan, the dispatch system will automatically carry out individual or mass text message distribution.

Cluster Scheduling

The system supports both wired and wireless mixed intercom networking. It allows communication with various terminals such as landlines and mobile phones through two-way radios. It is compatible with dial-up interconnectivity and features one-touch intercom calling. It supports various models and formats of two-way radios.Two-way radio stations, handheld radios. Support intercom call broadcasting system and trigger preset broadcasting voice.

Alarm Dispatch

       Upon detection of danger, the alarm system can automatically transmit alarm signals to the command and dispatch platform (or manually initiate a single-button alarm), where the dispatch desk will automatically activate visual and audio alarms to alert relevant personnel, while simultaneously broadcasting messages.The system automatically issues danger broadcast warnings to relevant areas.

Contingency Scheduling

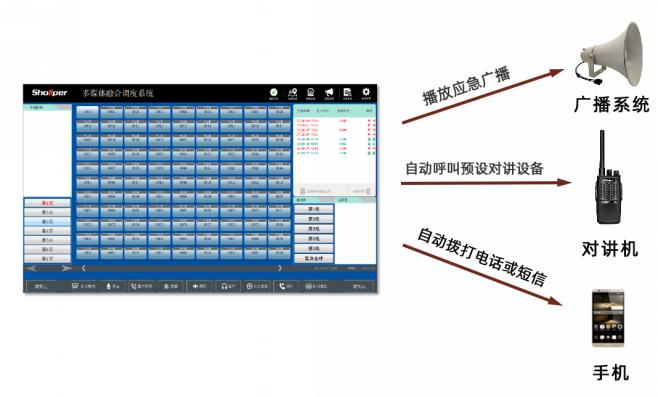

       Upon receiving emergency or fire alarm notifications, the system activates pre-set response protocols, such as automatically dialing the fixed lines or mobile phones of relevant personnel or superiors; and sending alerts to the concerned individuals.SMS alerts; emergency broadcast playback.

GIS (Geographic Information System)

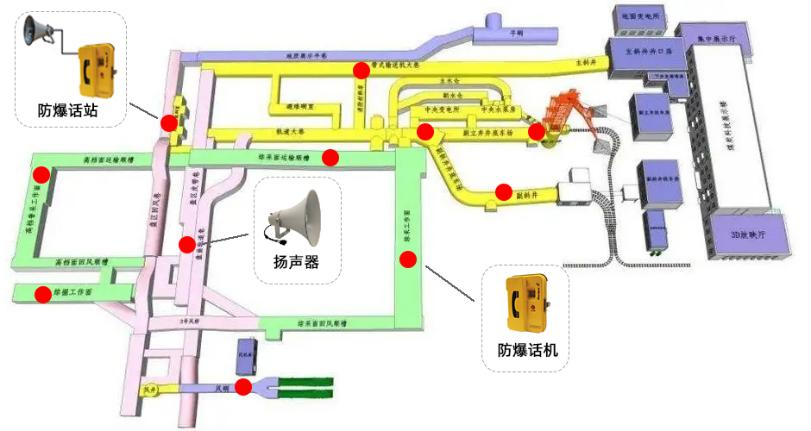

Leveraging the positioning function of the GIS geographic information system, various information terminal locations are marked. On the dispatch console, a single click can call the communication terminal at the marked point, and it can also access the bound functions of the location point.Video surveillance.

Operation and Survey Integration

The company supports unified and hierarchical scheduling. Responsible for daily administrative office communication, production scheduling, emergency dispatch during unexpected events, and monitoring and dispatching of communication terminals for various positions.

Phone Conference

      Supports various ways to initiate meetings, including ad-hoc gatherings and fixed groups. Compatible with various terminals for simultaneous conference calls, such as internal or external IP phones, landline phones, walkie-talkies, and mobile phones. Capable of initiating meetings at different levels, with dispatch consoles enabling one-touch conference calls. Up to 128 participants can join, with over 64 full-duplex speakers.

StandardIP Networking

Internally: All in-system supportCommunication devices or terminals compliant with the IP protocol can be deployed in any area covered by IP networks or wireless networks.

externally accessibleThe IP protocol can be accessed via the IMS platform or connected to communication devices elsewhere through IPO. The IP protocol supports centralized and distributed system deployment.

A Variety of Board Types

● Special Function Boards: REC Recording Board, HF Cluster Gateway Board, AUD Audio Interface Board, DMB Broadcasting System Board, ALM Dry Contact Alarm Board, RLD Fusion联动 System Board...

● Relay Cards: FXO Ring Relay Card, IPO Relay Card, PCM Digital Relay Card, E/M Relay Card, Carrier Relay Card, Magnet Stone Relay Card...

● User Boards: FXS Simulated User Board, IPS User Board, LFXS Long-Distance User Board, QFXS All-Call User Board, AFXS Long-Distance All-Call User Board...

Monitoring and Recording

The system offers real-time monitoring capabilities. Additionally, it can be configured with high-performance recording card modules, supporting real-time recording of all communication terminals within the system, including call recordings, meeting recordings, and interconnection recordings. Recording can be accessed and played online via recording software or web, and can also be downloaded.

Diverse Terminal Access

Console, Simulated/SIP/Magnetic Telephone, WIFI Mobile Phones, IP/Simulated Cameras, Microphone, Headset, Simulated/Network Amplifiers, Network Sound Columns, Speakers, Explosion-Proof Telephones, Walkie-Talkies, SOS Alarms, Access Control, etc.
