Rapid roller shutter door spray room

Air Shower Principle of Operation:

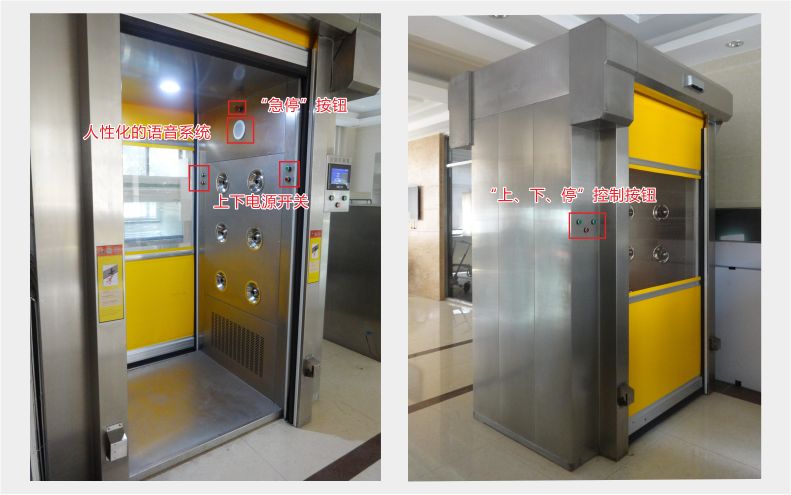

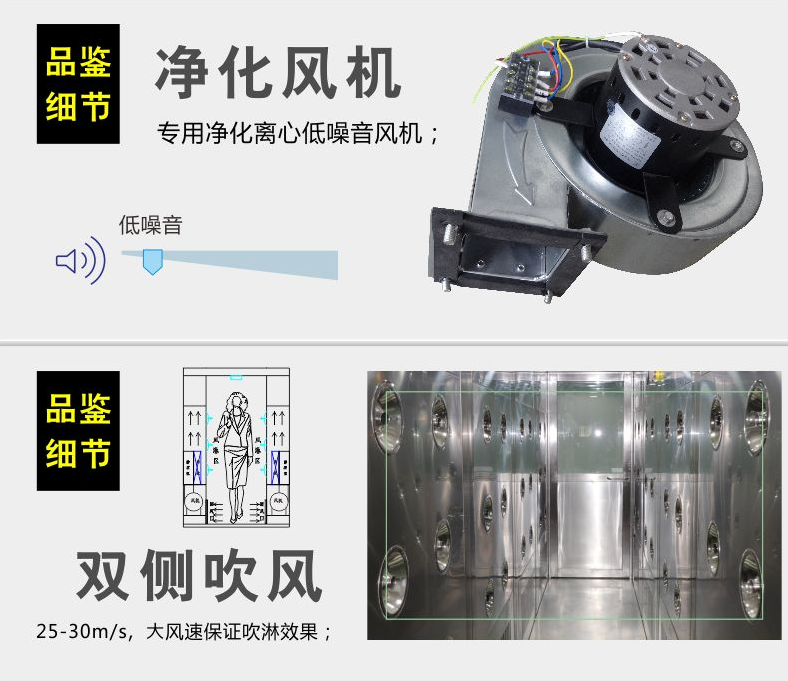

Quick rolling shutter air shower chamber is a necessary passage for people entering cleanrooms, which can reduce the contamination issues brought by the entry and exit of people. The two doors of the air shower chamber are electronically interlocked, serving as an airlock to prevent unfiltered air from entering the cleanroom, thereby reducing the pollution of the cleanroom by dust during the entry and exit of personnel. After individuals enter a single-person air shower chamber, high-speed clean airflow, after passing through an efficient filter, is ejected from rotating nozzles in all directions onto the person, effectively and rapidly removing dust particles carried by clothing. The air carrying dust particles is then filtered through a pre-filter and an efficient filter before being recirculated back into the air shower area.

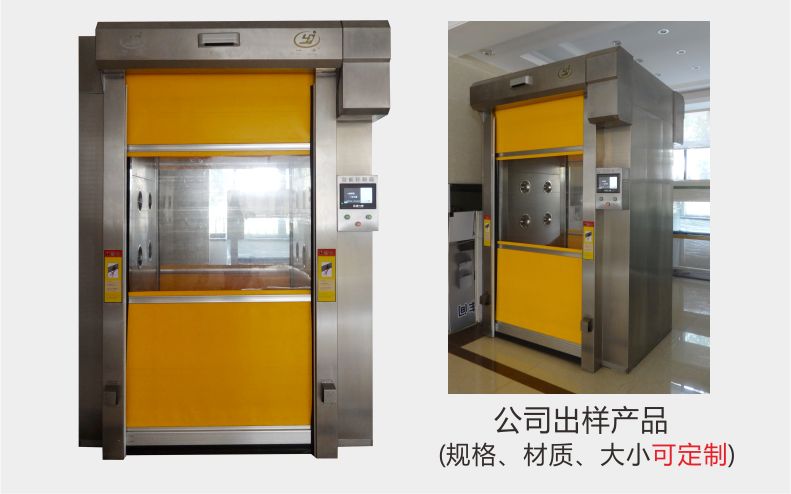

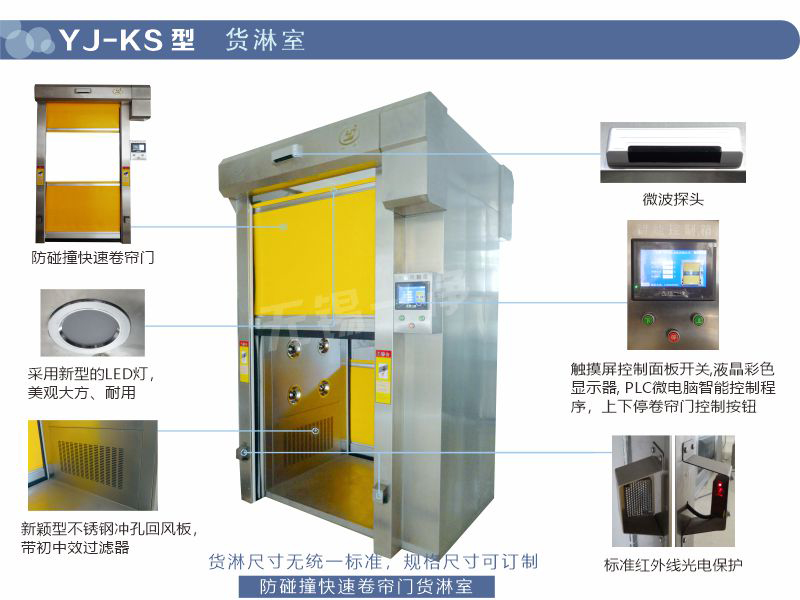

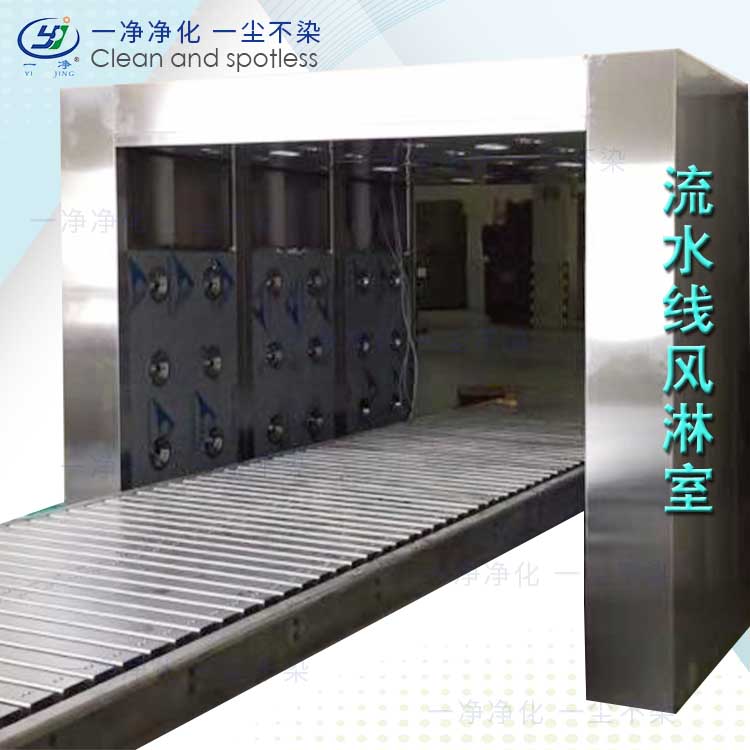

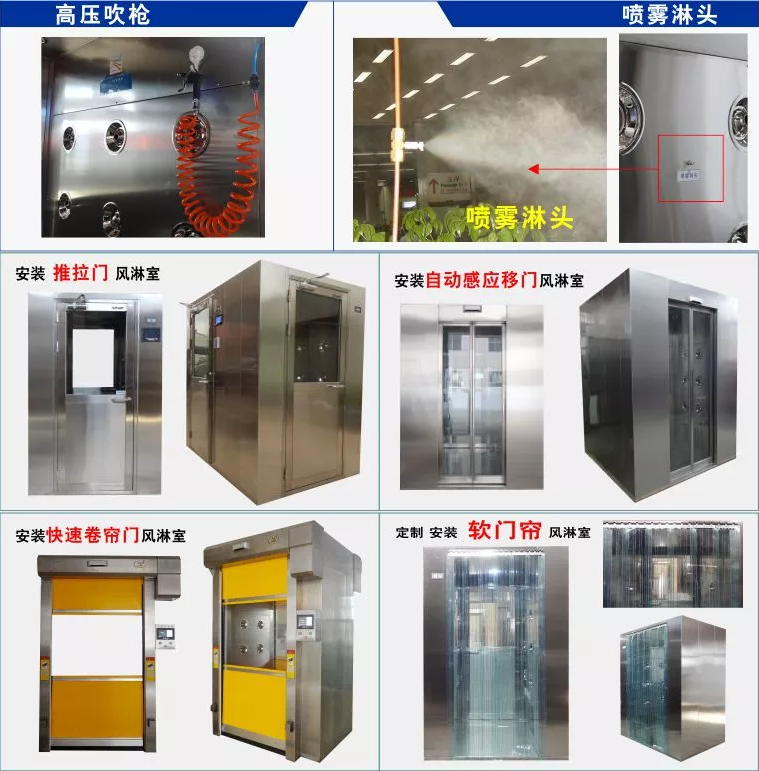

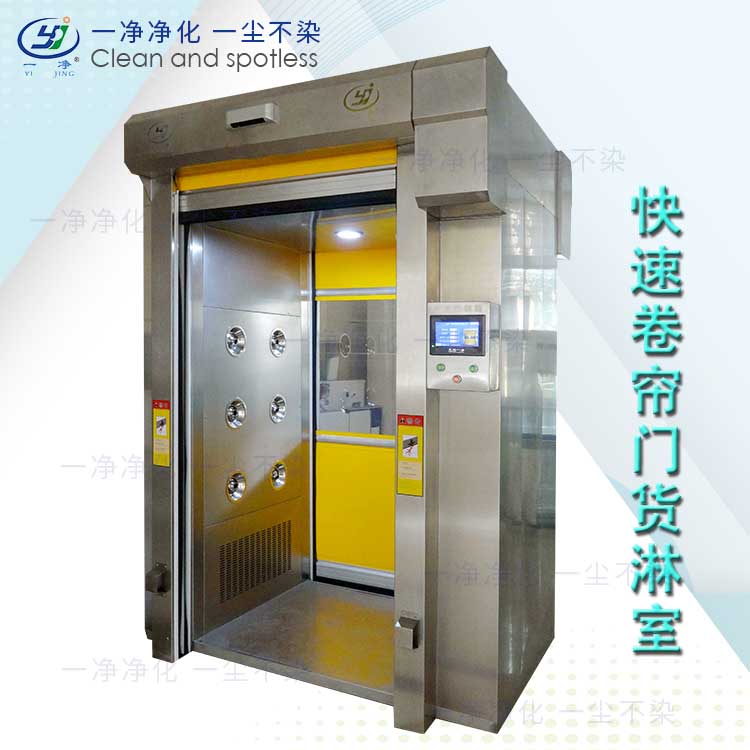

Wuxi Yijing's Fast-Closing Roll-up Door Air Shower Rooms are equipped with the most advanced technology and high-end configurations in the industry, all of which have passed national patent approval. The product features automation and intelligence, available in full stainless steel or cold-rolled steel plate with baked paint finish. It utilizes a 360-degree rotating nozzle interlock control, a 7-inch color LCD touch control, and an infrared automatic sensing device, effectively ensuring human body purification and preventing air pollution, helping to meet stringent dust-free purification standards for workplace environments. In addition to the Fast-Closing Roll-up Door Air Shower Rooms, Wuxi Yijing also produces a variety of air shower equipment, including manual double-door air shower rooms, automatic induction sliding door air shower rooms, and conveyor belt material shower rooms, which are widely used in pharmaceutical manufacturing, electronics, food industries, and more. Many well-known companies such as COFCO Group, PepsiCo, Yili, Nestlé,旺旺, ZTE Group, China National Petroleum Corporation, Sinopec, Huiyuan, and others have used our products, with excellent feedback and reputation.

Air Shower Manufacturer Wuxi Yijin Advantages

Advantage One: Unique Customization

After 8 hours without using the air shower function, the sterilization feature will automatically activate; an indicator will prompt for filter replacement after a certain period of use, with replacement services provided by the company.

Advantage Two: Modernized

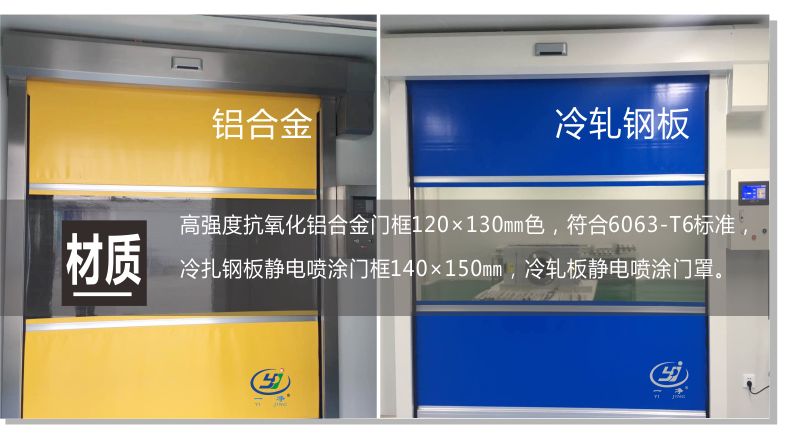

The air shower chamber is made using all-steel plate processing technology, featuring fully automatic computer-aided design laser cutting and CNC bending for one-time forming. The precision of equipment apertures and corner cutting is high, with excellent flatness in shearing and bending. The plates are all made of SUS304 brushed or mirror-polished stainless steel, or cold-rolled steel plates with baked paint, produced through a car paint processing flow, which includes acid washing, phosphatization, degreasing, rust removal, painting, and high-temperature baking.

Advantage Three: Intelligentization

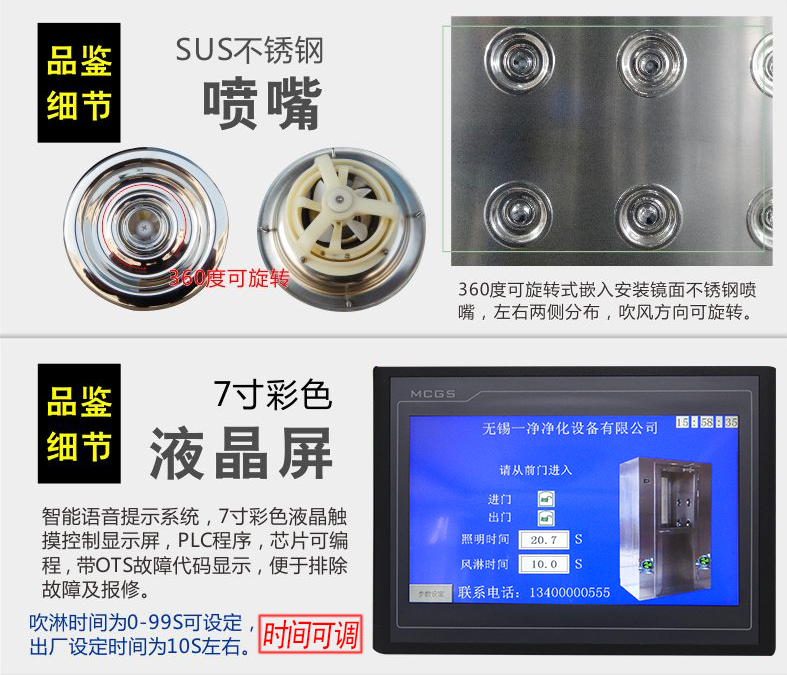

PLC Control System, 7-inch color LCD touch screen, built-in OTS fault code display system, intelligent and warm voice prompt function. The control system can be switched between manual and automatic control, featuring soft touch control switches, a keyboard with a hidden lock password protection to prevent employees from arbitrarily setting it. The delay lighting setting and screen protection settings are all intelligent and user-friendly.

Advantage Four: Branding

All electrical and electronic interlocks, door closers, and accessories for the air shower room are from domestic and internationally renowned brands; these brand accessories ensure the safety and stable operation of the air shower room. The German Dorma door closer, LCJ Lishen electronic interlock, and Omron photoelectric switches from Japan are used to ensure the stability and reliability of the induction device. The air shower room configuration has obtained national patent approval.

Advantage Five: Flexibility

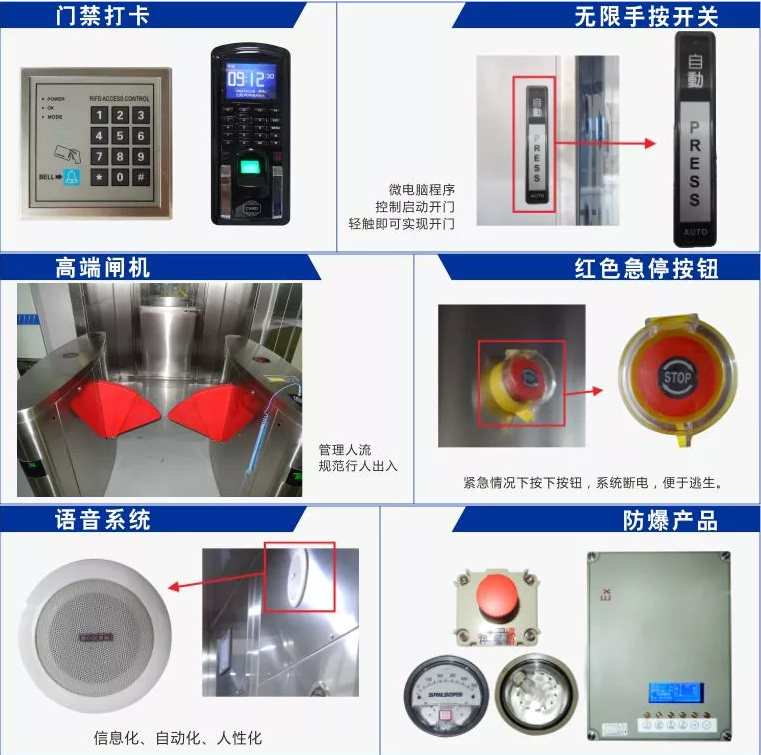

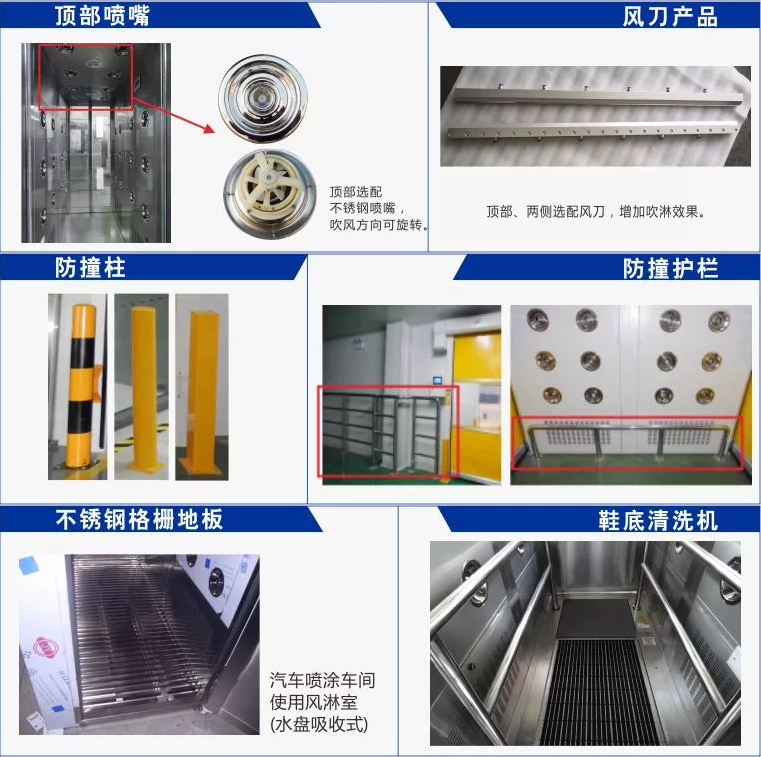

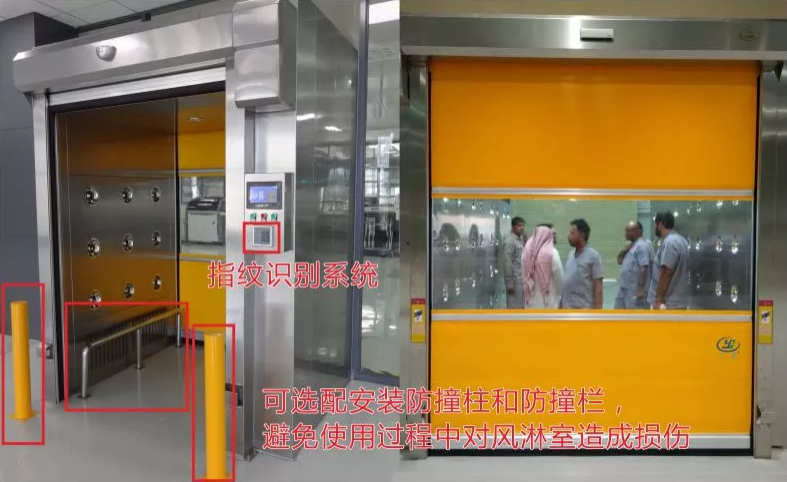

Optional sterilization and disinfection function available per customer request, featuring UV and ozone sterilization configurations, allowing customers to freely select; the cabinet material and dimensions can be customized according to customer specifications; door opening configurations include card access, explosion-proof, and human sensing (finger sensing) systems.

Purification Industry Brand Enterprises

○ Top 100 excellent manufacturers in the strong manufacturing field, invited to participate in CCTV's "Quality" program.

○ China's Ministry of Commerce and Ministry of Foreign Affairs recommend the company to be featured on the NASDAQ big screen in the U.S.

○ Superior equipment and technical personnel, patented innovation, construction grade qualification.

Quality Assurance - Tailor-Made

Over two decades in the industry, we have amassed a wealth of engineering experience.

○ Robust technical capabilities, with engineers, technicians, and multiple professional construction teams.

○ All design proposals provided can pass national standards certification, pharmaceutical supervision GMP, and food supervision SC certification!

Extensive case studies, exported worldwide

○ Partners with global Fortune 500 companies such as Coca-Cola, Nestlé, Volkswagen, and General Motors.

○ For over 20 years, we've completed hundreds of exemplary purification projects across the country.

○ Engineering construction services provided to countries and regions including Russia, Spain, Saudi Arabia, India, Mexico, and more.

Professional Manufacturer, Dedicated Service

○ Direct factory to customer connection, no middlemen, more competitive pricing.

○ Reasonably designed, cost-effective, and standardized engineering projects to create a clean environment for customers.

○ Integrated services, 7*24 customer support with backend assistance, worry-free after-sales.
