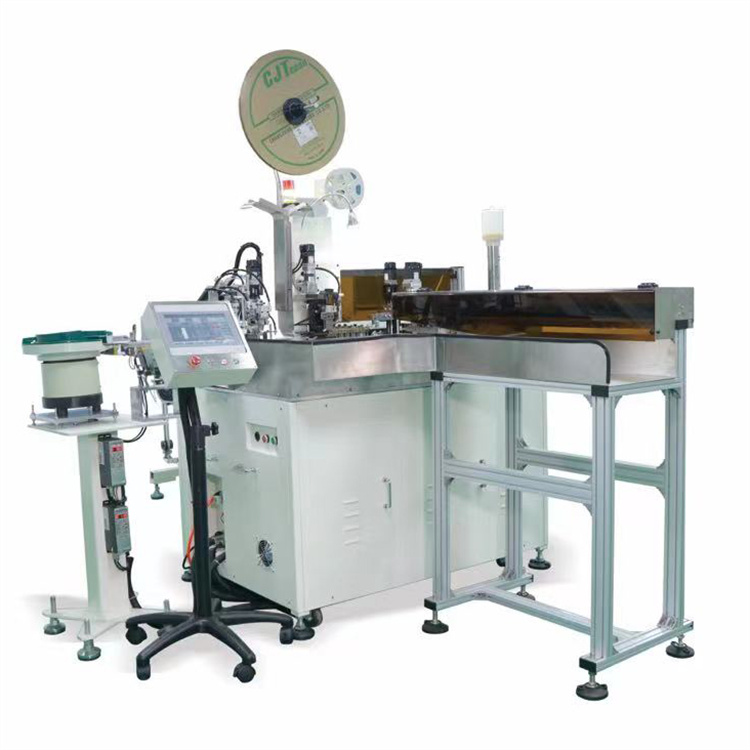

Automatic Single-Head Shell Insertion Machine

Functionality：

Cable cuttingTwoEnd peelingOne end compressed, one end shell-inserted, soldered and twisted wire

Wire Size：

AWG#20-AWG#28 (Wire Outer Diameter φ2.5mm or less)

Wire Color:

Pre-shipment2-10

Cable cutting length：

10mm - 1000mm (Set in 0.1mm increments)

Cut to lengthPlease provide the Chinese content you would like translated into American English.Degree:

Tolerance0.1mm+

Skinless：

1.0mm-10mm

peeled long precision：

Tolerance±0.1mm

PressedMachine：

19600N Servo Pressing Machine

Pressing schedule：

30mm

Universal Clamp：

UniversalOTP Mold (Split Line Mold)

Inspection Device：

Low pressureDo you have wires?Inspection、Pressing error detectionTerminals availableInspection,Terminal insertion detectionCCD Detection (optional), Pressure Sensor (optional)

Production Efficiency：

4000 PCS/H - 6000 PCS/H (per wire)

Control Method:

Microcontroller-based control

Internal Control Voltage:

DC24V

Power Supply:

Single-phaseAC200V/220V 50HZ 10A

Compressed Air:

0.5 MPa, approximately 170 N/min

Operating Temperature Range:

15° to 30° within

Motion humidity range:

30-80% RH Non-condensating

Mechanical Quality:

Approx.500kg
