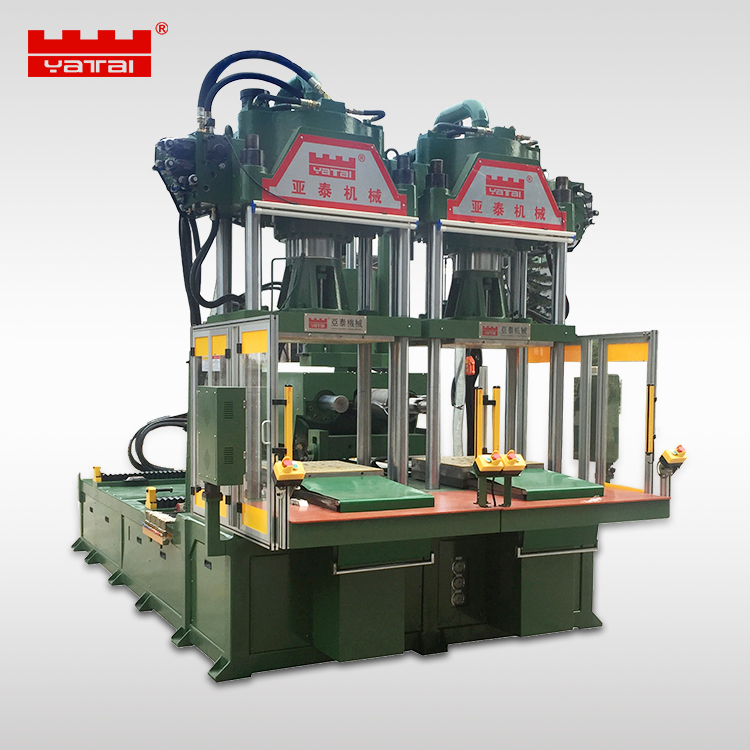

BMCVertical Injection Molding Machine120tons)
Special Dot:
1、 Wet granulatedBMCHeat-set injection molding tube and screw assembly.
2、 The special liquid feeding device is mounted on the cylinder and directly connected to the feeding port of the material tube, ensuring that the cylinder will not deform due to the force of feeding.
3、 Segmented core pin function, suitable for mold design of cold water material pipes or short material pipes, thereby reducing gate waste and lowering costs.
4、 The core of the Golin column is specially quenched and surface hardened, offering superior wear resistance.
5、 Special Sandwich Mold Templates, including Insulated Cold Water Boards+Insulating glass fiber boards ensure the mechanical life, stability issues, and unnecessary waste caused by mold heat transfer.
Technical Specifications:
Model | Unit | YT-120TR-2C | ||
Injection Molding Equipment | Bolt diameter | mm | Φ75 | |
Theoretical Injection Volume | cm³ | 154.5 | ||
Injection Molding Quality | g(oz) | 2782(98) | ||
Injection Rate | cm³/sec | 220 | ||
Injection Speed | mm/s | 50 | ||
High injection pressure | Mpa(kgf/cm²) | 149(1522) | ||
Storage Capacity | L | 20 | ||
Screw speed | r.p.m | 0-150 | ||
Molding Device | Clamping force | kn(tf) | 1176(120) | 1176(120) |
Mold travel | mm | 350 | 350 | |
Small size, thick | mm | 350 | 350 | |
Wide Spacing | mm | 700 | 700 | |
Column spacing(L*W) | mm | 760*380 | 760*380 | |
Template Size(L*W) | mm | 600*560 | 600*560 | |
Finished Part Ejection Distance | mm | 100 | 100 | |
Bushing Force | kn(tf) | 56.8(5.8) | 56.8(5.8) | |
Others | System Pressure | Mpa(kgf/cm²) | 17.2(175) | |
Email Storage Capacity | L | 600 | ||
Motor Power | KW(HP) | 11(15)+ 11(15) | ||
Electric heating power | KW | (4+4)*2*3.5 | ||
Mechanical dimensions | mm | 4380*2950 | ||
mm | 3825 | |||
Mechanical Weight | tf | 16.0 | ||
