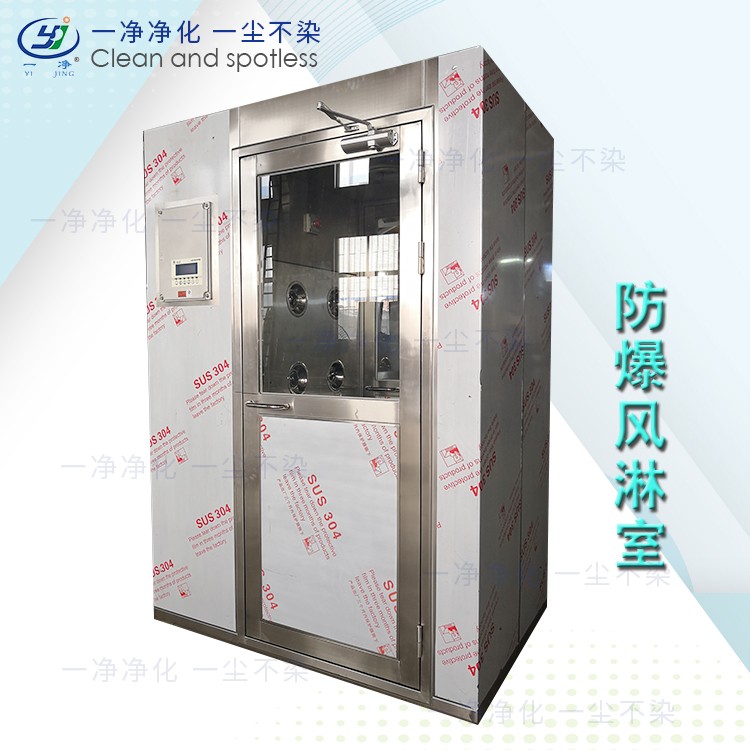

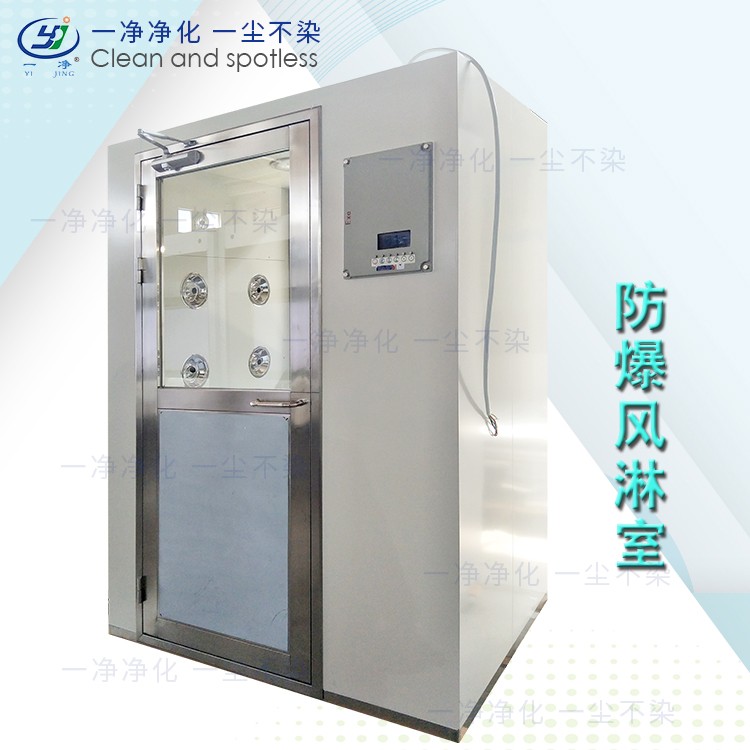

Explosion-proof air shower chamber

Explosion-proof Air Shower Room Professional Introduction Believe everyone is aware that there is a wide variety of air shower room equipment, such as automatic door air shower rooms, intelligent voice air shower rooms, explosion-proof air shower rooms, double-door swinging air shower rooms, double-door automatic sliding door air shower rooms, and many other detailed classifications like single-person single-blow and double-person double-blow. As for materials, there are fully stainless steel air shower rooms, full cold-rolled steel air shower rooms, and exterior cold-rolled steel with interior stainless steel air shower rooms.…..In this article, we specifically introduce the explosion-proof air shower chamber, highlighting its differences from other air shower chambers.

An explosion-proof air shower chamber is a top-tier technology equipment for purification, designed as a high-tech safety explosion-proof device for workshops with flammable gases and combustible products, such as oil and chemical systems, and certain clean rooms. The main components of an explosion-proof air shower chamber include explosion-proof fans, explosion-proof lighting, etc.

Explosion-proof air shower chamberFeatures include: A user-friendly intelligent microprocessor controller, offering a high degree of convenience and safety control. The air delivery system employs an Archimedean spiral design.25m/s--30m/sWind SpeedExplosion-proof air shower room fans typically use explosion-proof centrifugal fans, which are divided intoⅠType (Direct-Connected)ⅡTwo types of structures (compartmented). The entire machine structure is of non-sparking type.

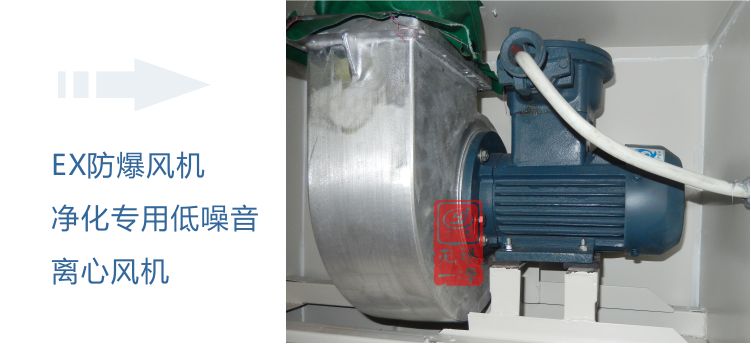

ⅠThe explosion-proof centrifugal fan is constructed with a direct drive structure featuring an explosion-proof motor, with the impeller directly mounted on the motor shaft and the housing securely fastened to the motor's explosion-proof flange.

ⅡType (compartmented) is a explosion-proof centrifugal fan and motor compartmented structure, consisting of a fan, transmission mechanism, elastic coupling, motor, etc.; the transmission group is composed of bearing housing, bearings, shaft, copper ring, sealing gland, etc., capable of measuring temperature and oiling. One end is directly connected to the explosion-proof centrifugal fan, and the other end is directly connected to the compartment wall. Ensures that personnel and goods entering the cleanroom are completely dust-free. Additionally, it features fully automatic control operation, double door electronic interlock, and infrared sensing automatic spray wash.

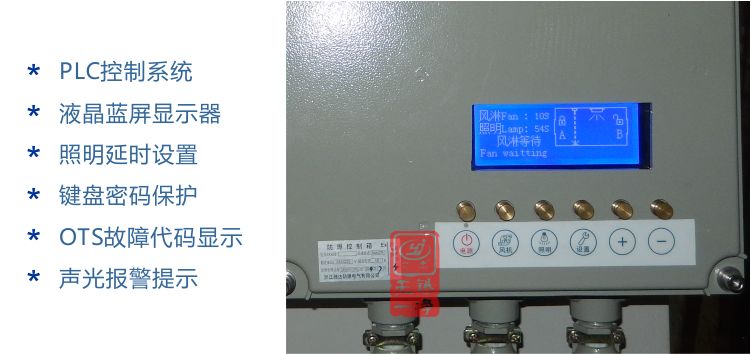

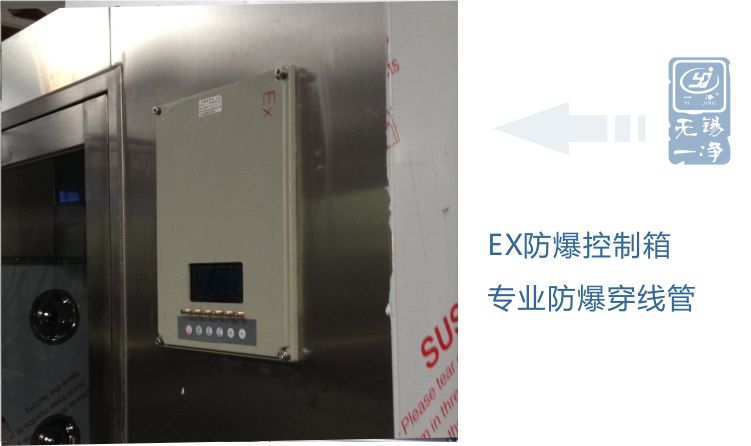

Explosion-proof air shower room micro-processing control features include: wind speed detection, electronic safety detection, function detection, and visual detection.Automatic door opening feature to prevent being locked out when the person opens the air shower room door without entering; Energy-saving mode, the lights inside will automatically turn off when there is no one in the air shower room; Rear lightingLCDThe chamber's operational progress and control status are displayed, along with a time indicator, allowing users to adjust the blow-off time as needed. The middle of the chamber is equipped with a soft, easy-to-clean pad for control buttons.

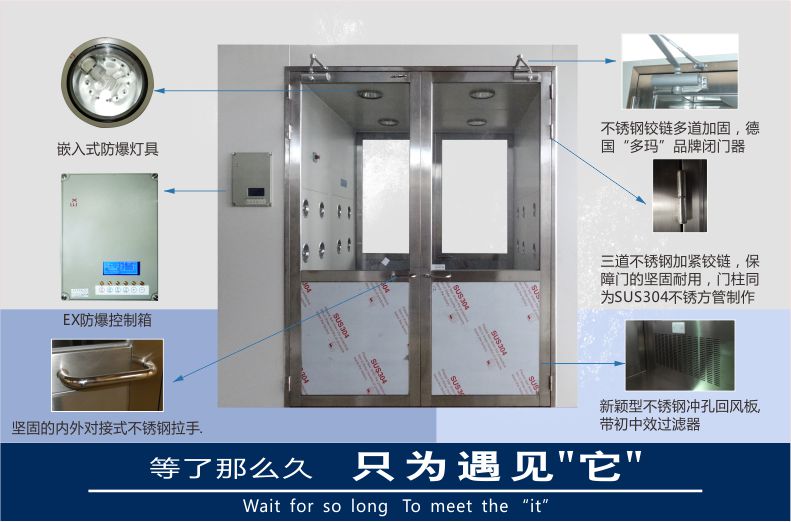

The explosion-proof air shower chamber is constructed with the following points:

1Upon entering or exiting a cleanroom, the indicator lights installed on both sides of the air shower room exhibit regular flowing displays.

2Compared to conventional electronic lighting,KASOur electronic lighting effectively reduces energy consumption and emits more balanced light.

3Explosion-proof centrifugal fans are connected at the opening of stainless steel ducts, providing a jet for effective cleaning together.

4The reset circuit breaker enhances the safety and reliability for the fan and circuit board.

5All interior and exterior cases are made ofA3Cold-rolled steel sheets, multi-pass pickled and plastic coated, or made of all stainless steel. Compared to uncoated cold-rolled steel sheets, multi-pass pickled and plastic coated sheets...A3Cold-rolled steel plate provides an excellent protective barrier against external corrosion and rust.

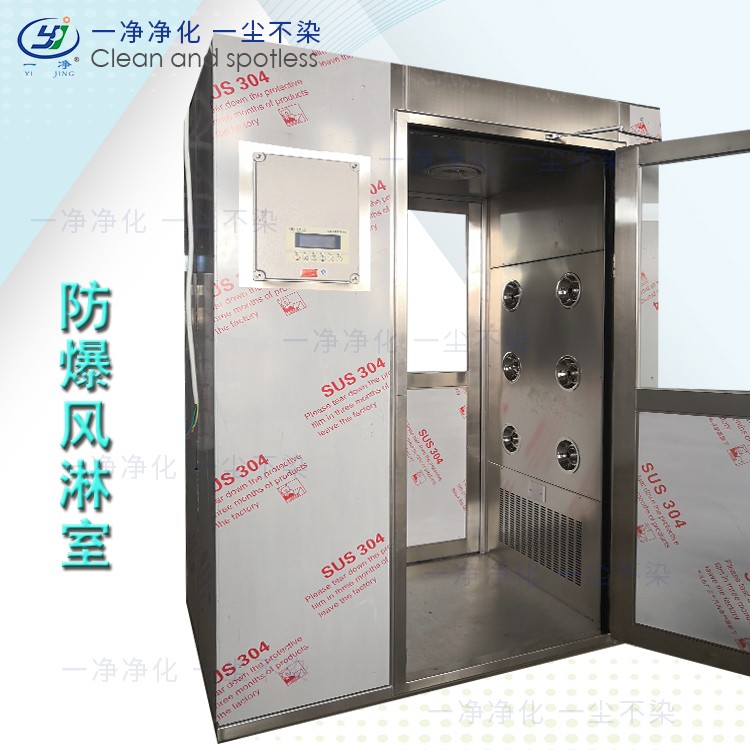

6Adjustable multi-angle stainless steel nozzles are durable; equipped with sturdy and aesthetically pleasing stainless steel doors with a transparent viewing window; the floor is made of wear-resistant stainless steel plates that are easy to clean.

7Air contaminated with pollution can be filtered through a filter to achieve99.99%Filter Efficiency (for)0.3Dust particles in micrometers).

8Industrial-grade electromagnetic locks ensure no displacement.Infrared sensor automatic sensing for blow-off, Zhejiang Taite Electric Intermediate Relay.

9The emergency stop switch is installed inside the work area, allowing for quick power shutdown and ensuring all doors remain open.
