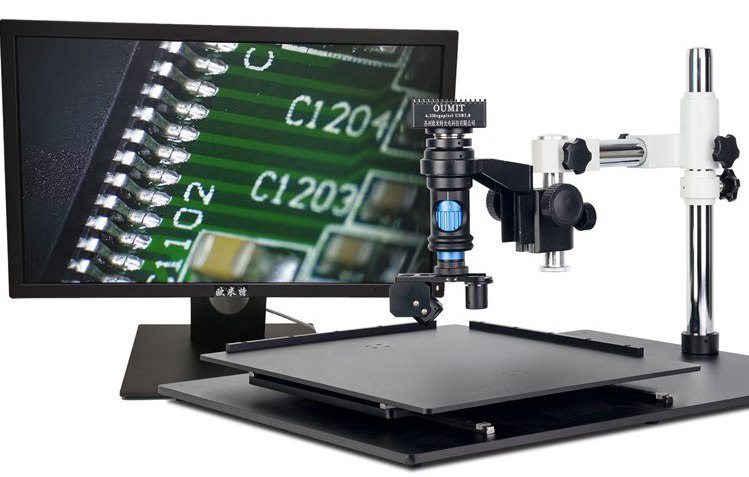

OMT-6050HC-STL300 Large Platform Large Stroke Manual 3D Video Digital Microscope
OMT-6050HCSeries manual 3D digital video microscopes, featuring Omnet superior optical systems with low distortion, high resolution, large depth of field, wide and flat market, and good focusing performance, are designed with novelty and easy operation. Can be manually switched2D，3DObservation angle, adopted3DMirror Effect Observation for Stereoscopic Components, Sound Grids, and Deep Holes; maintains clarity during switching, consistent central positioning. Offered36Observation with a 360-degree rotation, observation working distance up to95mmConvenient for picking up and placing products.
OMT-6050HCSeries 3D digital microscopes are widely used in microelectronics and precision electronics.SMTWeld point inspection, precision metal moldings, criminal investigation identification, life sciences, and plant morphology fields.
Optical Magnification Ratio0.3-2.2X
Digital Magnification Ratio20-150Please provide the Chinese content to be translated.21.54-inch display
Field of View:3.5mm-25mm
LEDRing-shaped lighting, adjustable brightness
36Degree of tilt observation angle
360360-degree rotation with unobstructed viewing
2DObservation and measurement3DCan observe the side status of components
2D/3DMaintain clarity and consistent working distance during conversion.2D/3DSimple image switch, maintaining consistent clarity and central position during transitions.
Photo and measure capable.
Optics, technical specifications
Model | OMT-6050HC-STL |
Magnification Factor | 20x - 135x |
Field of View | 3.5mm-25mm |
Objective lens | 0.3-2.2X continuous zoom, objective magnification ratio 7:1 |
Observation angle | 36 degrees |
Operation Control | Manual 2D/3D Switch |
Pixel dimensions | 3.75um*3.75um |
Data Digits | 12bit |
Sensor | 1/2”COMS |
Resolution | 1920*1080 |
Output Interface | HDMI Port |
Monitor | Dell21.5” |
Cross Line | Scale lines, horizontal lines, vertical lines |
Scan QR code | Optional |
Depth of field blending | Optional |
Take photos | Available |
Measurement | Available |
Features | Real-time observation |
Focusing Bracket | Coarse focusing bracket, adjustable tension on the focusing ring, with a range of vertical adjustment.50mm, available with coarse/fine adjustment bracket |
Base bracket | 380*260mm |
Lighting | Lens withLED light sources, optional with various compliant fluorescent, LED ring lights |
Monitor | 22-inch Dell monitor, compatible with various sizes of displays |
Power Supply | External wide voltage adapter, Input100V-240V-AC, 50/60Hz, Output DC 12V 2A |
Product Configuration List
Sequence | Name | Quantity |
1 | Standard lens manualOMT-10SW 0.7-4.5Multiple | 1 |
2 | Mouse and Mouse Pad | 1 |
3 | STLLong Arm Swivel Bracket | 1 |
4 | 300mm x 300mm travel platform | 1 |
5 | LEDAdjustable light source | 1 |
6 | High-definition industrial cameraOMT-950HC | 1 |
7 | 224K high-definition monitor | 1 |
8 | HDMIData Cable | 1 |
9 | 5/12Power Adapter | 1 |
10 | 16G StorageUPlate | 1 |
11 | High-precision ruler | 1 |
Advantages:
Our Omit products are controlled from the design concept, processing technology, and assembly techniques, providing high-quality products to our customers. Offering industrial automation for you.4.0 Comprehensive design and manufacturing package, until project successful acceptance.
OmegaTech offers processing equipment.:We offer 12 CNC machines, 8 lathes, 11 milling machines, 3 drilling machines, and 2 grinding machines. We have a team of experienced and high-quality processing technicians. Our Ommit products are regularly sent to metrological institutions for random inspections each year, and inspection reports are issued.
Our Omitte boasts top-tier industry designers and experienced assemblers who rigorously ensure product design and manufacturing precision.
Service:
1. To ensure high reliability and advanced technology in our products, the Omit system selects materials from top domestic or international brands.
2. Under the same competitive conditions, Omint Co. sincerely offers you favorable prices without compromising the product's technical performance or altering the product components.
3. Service Efficiency: In case of equipment failure during or after the warranty period, the supplier will provide a solution within 12 hours upon receiving notification.
4. Service Principles: Product warranty period is 12 months. Within this period, Omnit will repair and replace parts damaged due to quality issues at no extra cost. For parts damaged outside the warranty period, only the cost of the parts will be charged. Any damage to the equipment caused by the buyer's人为 factor will be repaired or parts provided at cost price.
