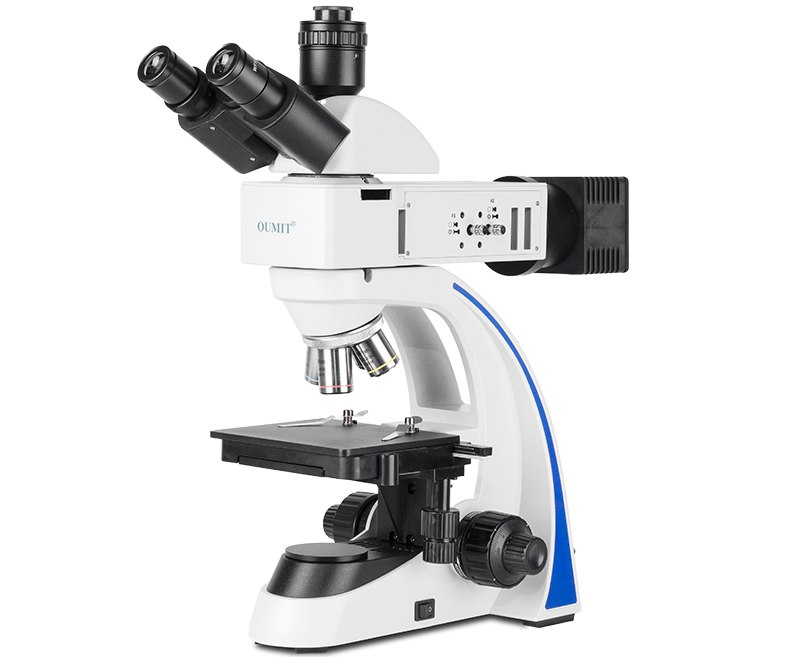

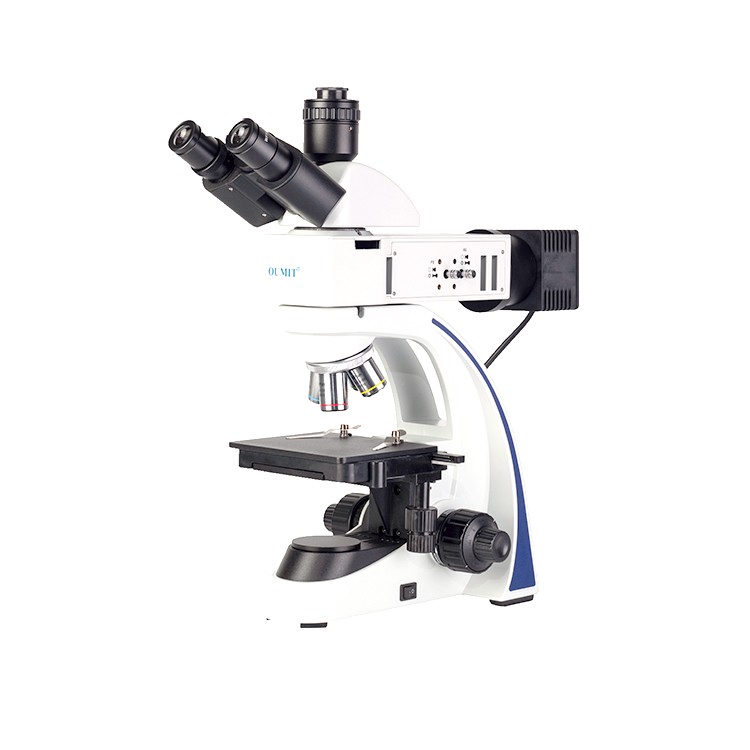

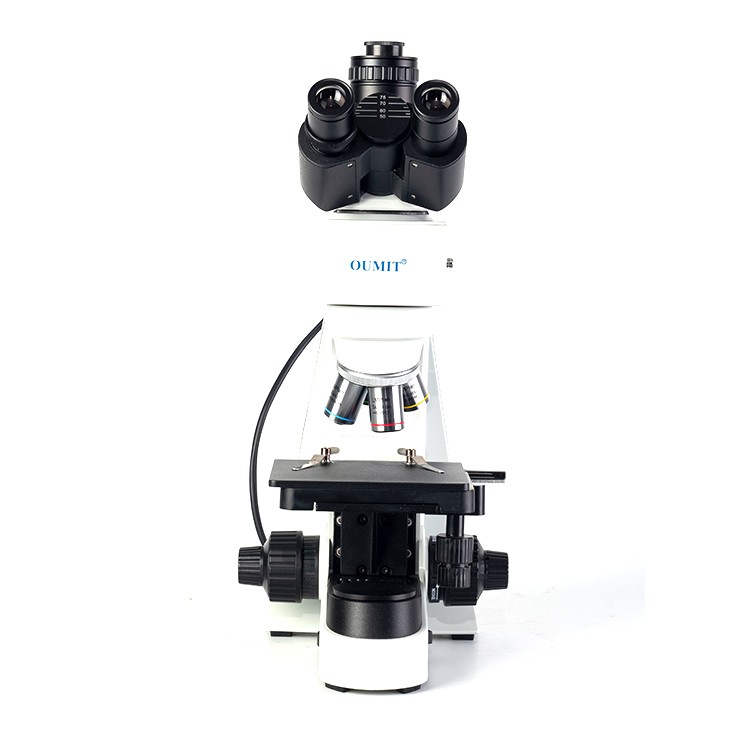

MT-10BT Bright Field Metallographic Microscope
Optical System | Optical System with Infinite Color Difference Correction |
Observation Tube | 30Tilt, Infinite Pivot, Three-way5:5Split Beam Observation Head, Pupillary Distance Adjustment:54mm－75mmSingle-eye diopter adjustment: ±5Cylinder power, fitted0.5XCamera Interface |
Eyepiece | Higher pointWF10X20mmEyepiece |
Objective Lens | Infinite working distance achromatic metallographic objective 5X NA0.15 WD12 |
Infinity-corrected, long working distance, flat field, achromatic metallographic objective 10X NA0.3 WD16 | |
Infinity-corrected long working distance achromatic objective for metallographic microscopy 20X NA0.4 WD12 | |
Infinite focal length, long working distance, flat field, achromatic metallographic objective 50X NA0.55 WD9.15 | |
Infinite Conjugate Field Flat Achromatic Metallographic Objective 100X NA0.8 WD2.1(Optional) | |
Objective lens converter | Internal positioning4Hole Converter |
Coarse fine-tuning focusing mechanism | Reflective bracket, with metal loading platform, low-hand position coarse-fine coaxial focusing mechanism, coarse adjustment stroke23mmFine-tuning accuracy0.002mmAnti-slip adjustable tension device for preventing the loading platform from sliding. |
Dual-use transmissive/refractive machine frame, with dual-use transmissive/refractive glass loading platform, low-hand position coarse/fine coaxial focusing mechanism, coarse adjustment stroke23mmFine-tuning accuracy0.002mmRetractable tension device to prevent the loading platform from slipping. | |
Loading Platform | Double-layer mechanical moving platform, low hand positionX、YAxial direction adjustment; platform size190mm×150mm,Mobile Range76mm×50mm |
Reflective metal specimen holder plates and dual-purpose transparent/reflective glass specimen holder plates available. | |
Projection Lighting System | Single High-Power Unit5WLEDReflective light chamber, warm white light, Kola Lighting, with field stop and aperture stop, adjustable stop center size, external wide voltage adapter, input100V－240V－AC50/60Hz,OutputDC12V2A |
Transmission Lighting System | Single High-Power Unit3WWhite LightLEDLamp (optional) |
Other Attachments | Transmission Abbe condenser lens, numerical apertureN.A1.25Variable diaphragm, central pre-set |
Randomly assembled prisms and polarizing prisms360Swivel adjustable | |
Camera Accessories:0.35X、1X CInterface, adjustable focus (optional) | |
Reflective interference filters: Blue, Green, White (optional) |
