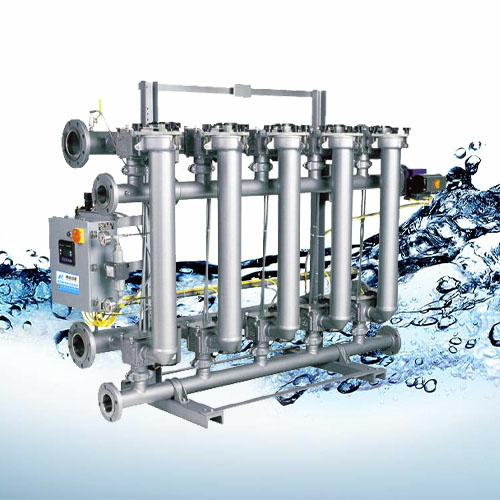

Pipe Type Backwashing Filter, Main Functions and Features of Automatic Backwashing Filters

Tubular backwashing filter, backwashing filter manufacturer, automatic backwashing filter Performance Advantages and Features:

1. Automatic backwashing design offers continuous filtration and maintenance-free operation.

2. During the backwashing process, the filter module can perform backwashing operations sequentially in a single group, thereby not affecting the normal filtration of the fluid.

3. The filtration equipment utilizes an air-operated drain valve, with a short history of backwashing and low water consumption, making it environmentally friendly and cost-effective.

4. During normal operation, the backwashing filter allows the fluid to enter from the outside to the inside of the filter medium, with impurities being trapped on the outside of the medium. During backwashing, clean liquid or gas can be used for backflushing, and impurities are discharged from the bottom. The filter features a PLC control system, and remote control capabilities are available.

Pipe Type Backwashing Filter, Backwashing Filter Manufacturer, Automatic Backwashing FilterSelection Parameters:

1. 1 core per filter unit (widely applicable to various media), suitable for single or multiple units based on operating conditions.

2. 6-200 M3/H flow rate per unit.

3. Manufacturing in stainless steel, carbon steel, and special alloys.

4. Working pressure: 0-5.0 MPa.

5. 1600 to 2 micron filtration.

6. Automatic or manual backwashing capability.

PLC Control System

Compliant with GB150-1998 and ASME standards in design.
