Vertical CNC Slotting Machine

Product Introduction

The machine base and beam are both designed with a framework structure, ensuring excellent overall rigidity. The entire body undergoes heat treatment, guaranteeing long-term use without deformation of the machine tool.

The machine base is stationary, while the gear and rack drive beam moves, with variable speed adjustment available; the cutting process is smooth and efficient, resulting in a flat and smooth cutting surface.

This machine is a four-axis CNC machine with X, Y1, Y2, and Z axes, featuring high positioning accuracy and a wide range of processing capabilities.

The machine is equipped with both side feed and end feed devices, both of which utilize hydraulic clamping. The pressure force is adjustable and the clamping is reliable.

The primary transmission of the motor uses a V-belt drive. Due to the reduced tension and elongation of the V-belt, the impact force during emergency stops and quick returns is minimized, ensuring the equipment's flexible operation and extending its service life.

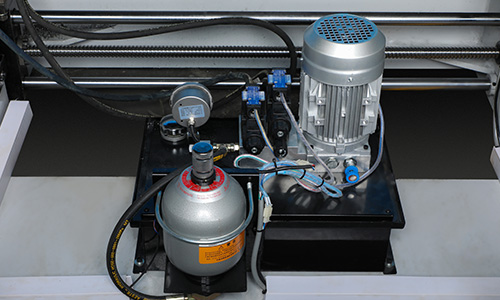

Hydraulic system enhanced with accumulator compensation; motor gap operation saves energy and controls oil temperature.

This machine features an innovative function. Should the surface become uneven or show defects after long-term use, you can utilize the innovative function to rejuvenate the machine.

Product Details
