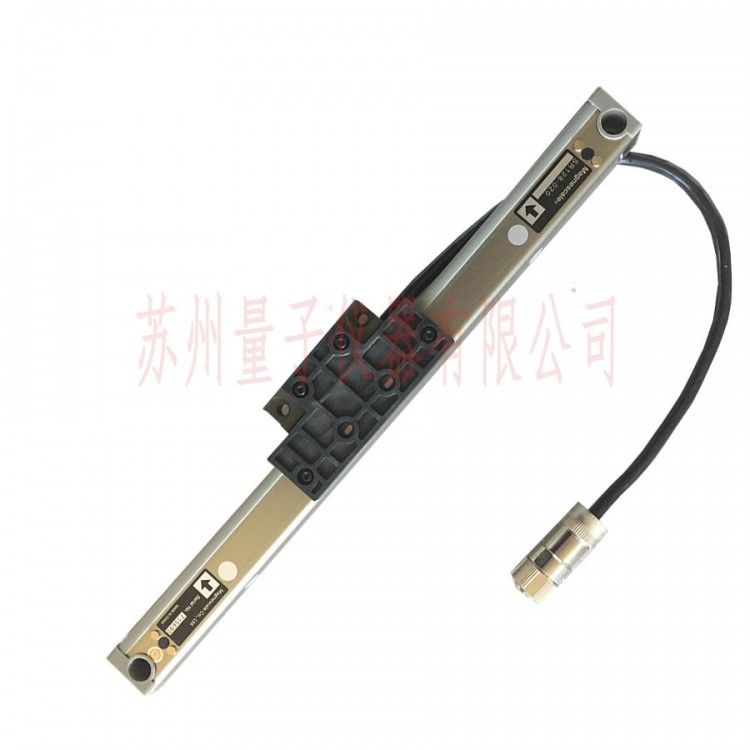

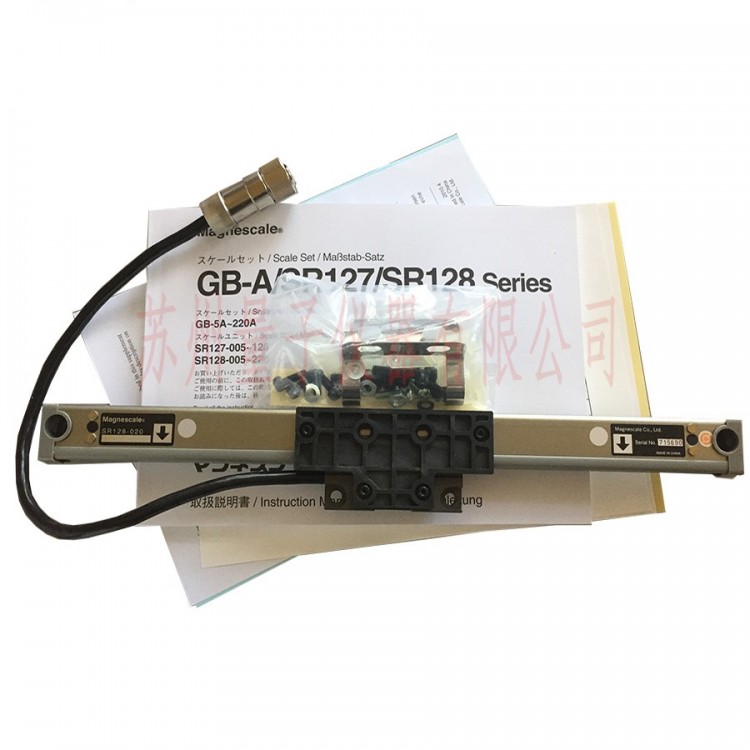

Japanese Magnescale Magnetic Scale SR128-095

Japanese Magnescale Magnetic Scale SR128-095

Product Introduction

Magnescale Scale Tape SR128 | Scale Tape

Magnetic Rule SR128 Series: Used in chip processing machinery or any application requiring positioning. Oil-resistant, vibration-resistant, pollution-resistant, and durable; simple structure, long service life, and the same thermal expansion coefficient as metal; GB series magnescale, compact in design, cross-sectional dimensions of 25x21mm.

Product Quality:

Oil and dust resistance, vibration resistance, and environmental adaptability.
2. Compact and clever design, saving installation space.
3. Magnetic, built-in origin.
4. Suitable for use on milling machines, grinding machines, and other general machine tools.

5. Simple structure, long service life, and the same thermal expansion coefficient as metal.

Linear Ruler
Lengths available: 50, 100, 150, 200, 250, 300, 350, 400, 450, 500, 550, 600, 650, 750, 850, 950, 1050, 1250, 1400, 1600, 1850, 2050, 2200mm
Length: +104mm (Length under 200mm available)
Length +120mm (over 200mm)
Maximum movement length: +14mm (with length over 200mm, +7mm on each side)
Length +30mm (length below 250mm, each side +15mm)
Linear Scale Accuracy (20℃): (sr128 series) ±5μm
Key Points:
1. Compact and lightweight
2. Easy installation
3. Temperature expansion coefficient is the same as mechanical
4. Height and Position
5. Oil and dirt-resistant

Product Specifications:

Product Model:
