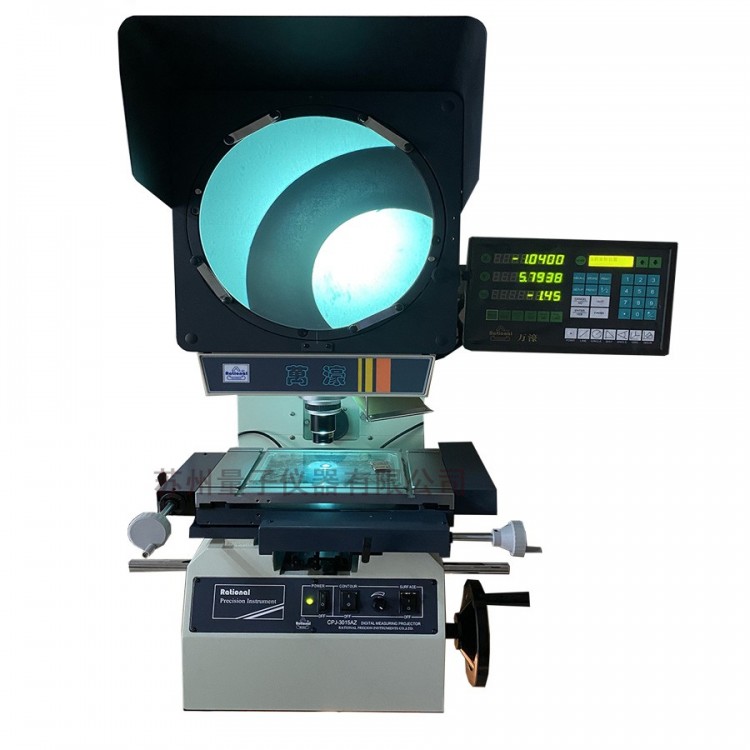

Rational Wanhao High-Precision Projector CPJ-3015AZ
Features:
The CPJ-3000A/AZ series digital measuring projection instruments are of excellent overall quality and stable performance. Equipped with a foot switch and a multifunctional data processing table, data output and sampling are extremely convenient, making measurements faster and more efficient.
Technical Specifications:
| Model | Inverted image Just like type | CPJ-3015A CPJ-3015AZ | CPJ-3020A CPJ-3020AZ | CPJ-3025A CPJ-3025AZ | CPJ-3030A CPJ-3030AZ | CPJ-3040A CPJ-3040AZ |
| X-axis travel (mm) | 150 | 200 | 250 | 295 | 400 | |
| Y-axis travel (mm) | 100 | 100 | 150 | 195 | 300 | |
| Metal Countertop Dimensions (mm) | 354×228 | 404×228 | 450×280 | 500×330 | 606×466 | |
| Glass Tabletop Dimensions (mm) | 210×160 | 260×160 | 306×196 | 321×221 | 450×350 | |
| X, Y axis resolution (μm) | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | |
| Indication Error (μm) | E1XY=(2.5+L/100) | |||||
| Z-axis travel (mm) | 100 (Focus Adjustment) | 100 (Focus Adjustment) | 100 (Focus Adjustment) | 100 (Focus Adjustment) | 100 (Focus Adjustment) | |
| Instrument Weight (kg) | 160 | 160 | 180 | 250 | 250 | |
| Instrument Dimensions (mm) | 780×780×1100 | 810×780×1120 | 810×780×1120 | 900×780×1020 | 1040×780×1120 | |
| Projector Screen | Dimensions (mm) | F 312, Application Range > F300 (with millimeter lines) | ||||
| Rotational Range | 0~360° | |||||
| Rotary resolution | 1' or 0.01° | |||||
| Objective Lens | Magnification Factor | 10 x (Optional) | 20× (Optional) | 50× (Optional) | 100× (Optional) | |
| Object Field of View (mm) | Ф30 | Ф15 | Ф6 | Ф3 | ||
| Working Distance (mm) | 77.7 | 44.3 | 38.4 | 25.3 | ||
| Measurement: Large Height (mm) | 90 | 90 | 90 | 90 | ||
Instrument Power Supply: AC 100-240V, 50/60Hz, Total Power: 400W | ||||||
