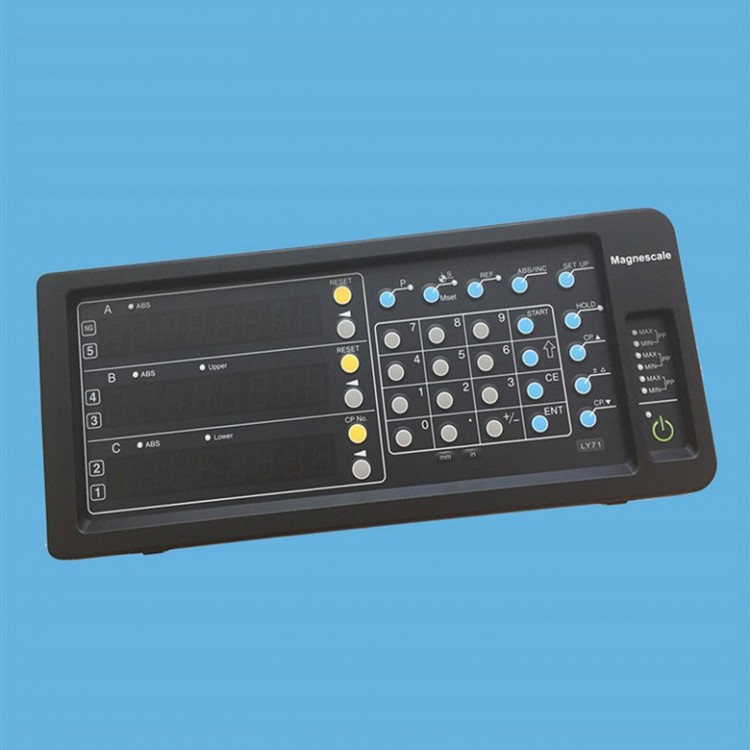

Japan Magnescale Digital Indicator LY71

High-performance display components for various measurement and control applications. With the installation of an expansion board, BCD output and comparator output can be achieved.

Various outputs can be achieved by installing an expansion board. BCD output (optional), comparator output: relay / collector open drain (optional)
Peak Hold Function for Easy Data Summarization
Various external input functions for easy automatic measurement
Small display volume toggle
Data Storage
Reset / Set to Default / Restart
Length measuring component origin detection
Set Target
Flicker Prevention
AC adapter (PSC-23A) sold separately for power supply

Main Specifications
Changes to the content will not be announced separately.
Model	LY71
Various specifications for various uses	–
Number of Input Shafts	1 to 2 shafts (2-axis addition function available. Addition results can only be displayed during addition.)
Display	Show 7 digits and a minus sign, color: amber Display Window: 1-3 Axes (Unnecessary axes can be turned off. The display position of each data varies depending on the settings.)
Display Data	Each shaft's Current Value / Max Value / Min Value / Peak-to-Peak Value
Input Resolution	Linear Usage: Standard: 0.1um, 0.5um, 1um, 5um, 10um; Extended: Addable: 100um, 50um, 25um, 20um, 2um, 0.05um When using the angle feature, Standard: 1s, 10s, 1min, 10min; Extended: Addable by 1 degree
Display Resolution	Measurement component input resolution or higher
Input Signal	A/B differential (pulsed) signal (small phase difference 50ns), Z signal (compliant with EIA-422)
Alarm Display	Length measuring component not connected, overspeed, exceeded large display limit, power failure, error saving data
Reset	All axes reset, alarm cleared. External reset input received.
Restart	Restart each shaft and the peak of all shafts
Pre-set	Each shaft can save and edit up to 3 values (external preset values can be called for input)
Primary Calibration Function	Reproduce the main calibration value by passing through the origin when powered on.
Benchmark / Origin Function	Each axis can save and edit 1 value (when not using the main calibration feature)
Maintain functionality	Select from Latch Pause Latching: The displayed content remains unchanged during the latching period (display content remains) Suspension: Interrupt peak calculation during suspension (peak calculation maintained)
Linear Compensation	Compensate the count value of the length measuring component by a certain amount. Compensation Standard: ±600um/m (Extended: ±1000um/m)
Target Setting Function	0.100000 ～ 9.999999
Input/Output	BCD Expansion Board (Sold separately: LZ71-B), usable with 1 to 2 pieces (not to be counted when using 2) Comparator Expansion Board (Sold separately: LZ71-KR)
Power Supply	DC 12V, rated 0.75A, max 1A, AC 100-240V ±10% (Please purchase a separately sold AC adapter)
Power Consumption	32VA (when using the optional AC adapter PSC-23A)
Temperature Range	Operation: 0 ~ 40°C (No condensation allowed) Storage: -20 ~ 60°C (No condensation allowed)
Quality	Approximately 1.5 kg
