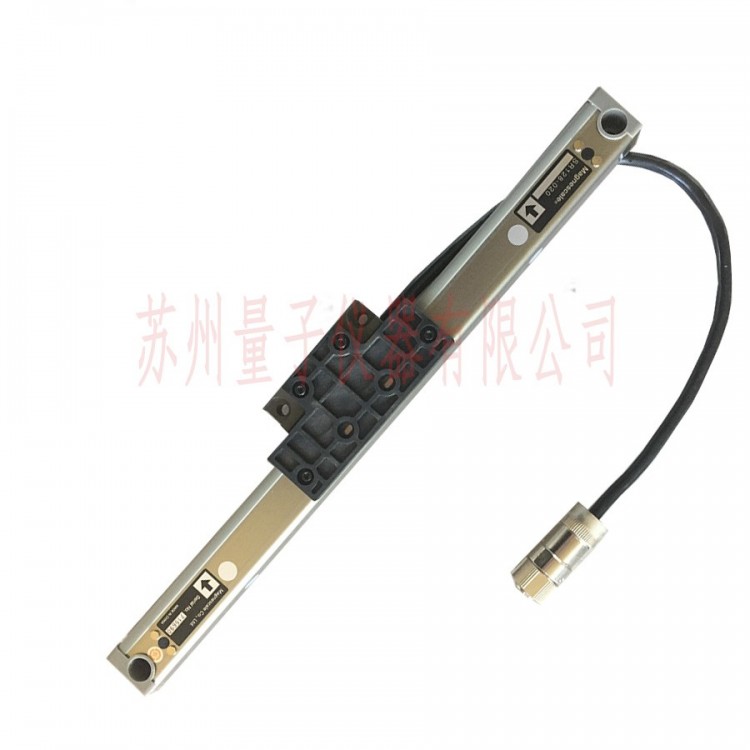

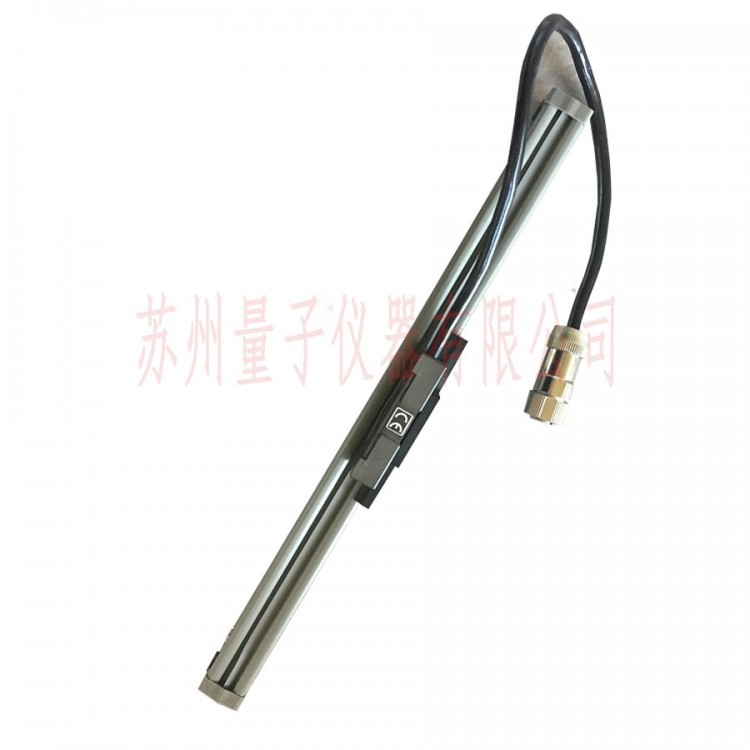

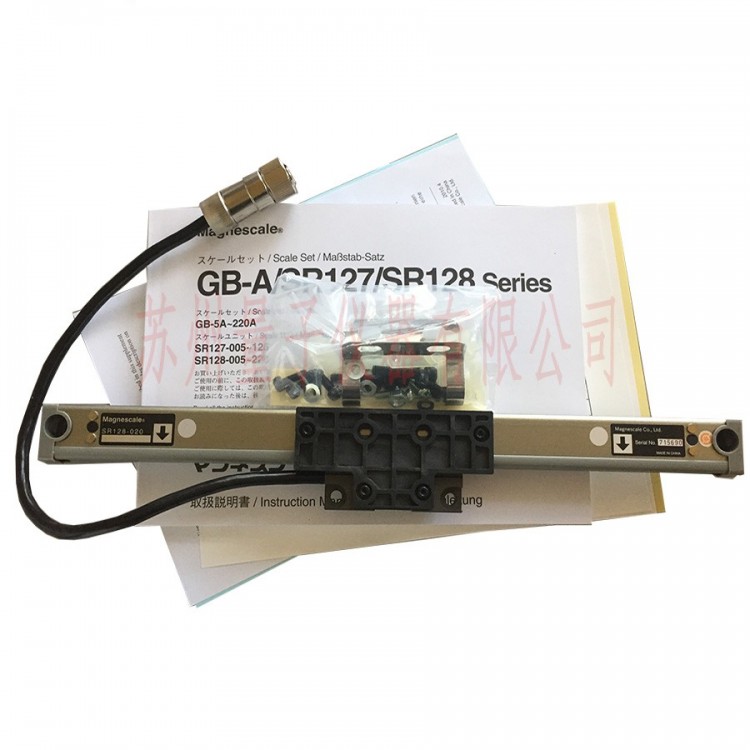

Japanese Magnescale Magnetic Scale SR128-025

Japan Magnescale Magnetic Scale SR128-025

Product Introduction

Magnescale Scale Tape SR128 | Scale Tape

Magnetic Scale SR128 Series: Suitable for chip-cutting machinery or applications requiring positioning. Resistant to oil, vibration, contamination, and durable; simple structure, long service life, and the same thermal expansion coefficient as metal; GB series magnescale (magnetscale), compact in design, cross-sectional dimensions of 25x21mm.

Product Quality:

Oil-resistant, dust-resistant, vibration-resistant, and environmentally adaptable.
2. Compact and clever design, saving installation space.
3. Magnetic, built-in origin.
4. Suitable for use on milling machines, grinding machines, and other general machine tools.

5. Simple structure, long lifespan, and the same thermal expansion coefficient as metal.

Straight Ruler
Lengths available: 50, 100, 150, 200, 250, 300, 350, 400, 450, 500, 550, 600, 650, 750, 850, 950, 1050, 1250, 1400, 1600, 1850, 2050, 2200mm
Length: +104mm (length up to 200mm)
Length +120mm (over 200mm)
Max. adjustable length: +14mm (with length 200mm or less, +7mm on each side)
+30mm in length (lengths of 250mm or less, 15mm on each side)
Linear scale accuracy (20℃): ±5μm (SR128 series)
Key Points:
1. Compact and lightweight
2. Easy installation
3. Temperature expansion coefficient is the same as mechanical
4. Height and Position
Oil and dirt resistant

Product Specifications:

Product Model:
