Wan Hao Image Mapper VMS-3020FS Manual 2.5D
VMS-3020FSProduct Application
● The instrument is suitable for applications requiring two-dimensional coordinate measurements.
Domains, widely applied in industries such as machinery, electronics, instruments, and plastics.
Product Features

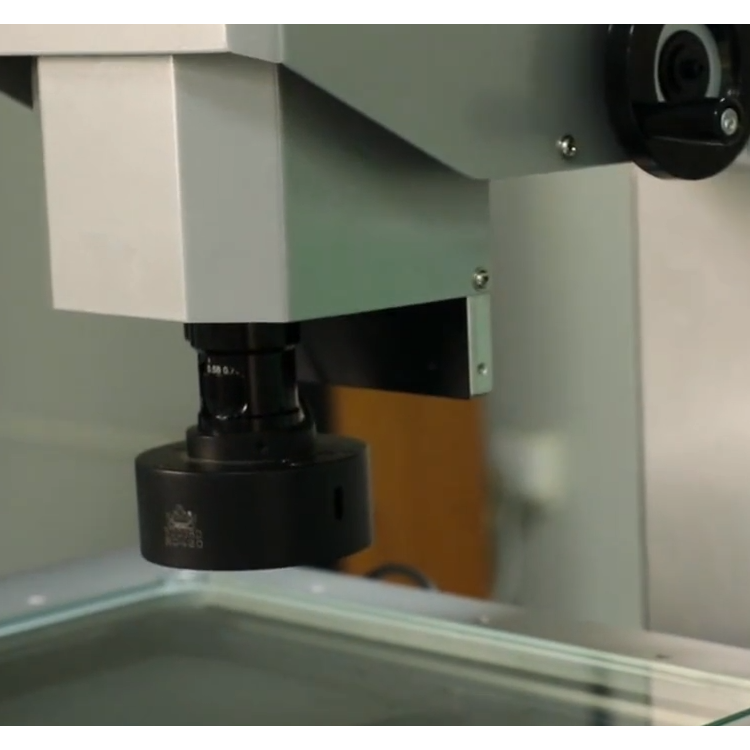

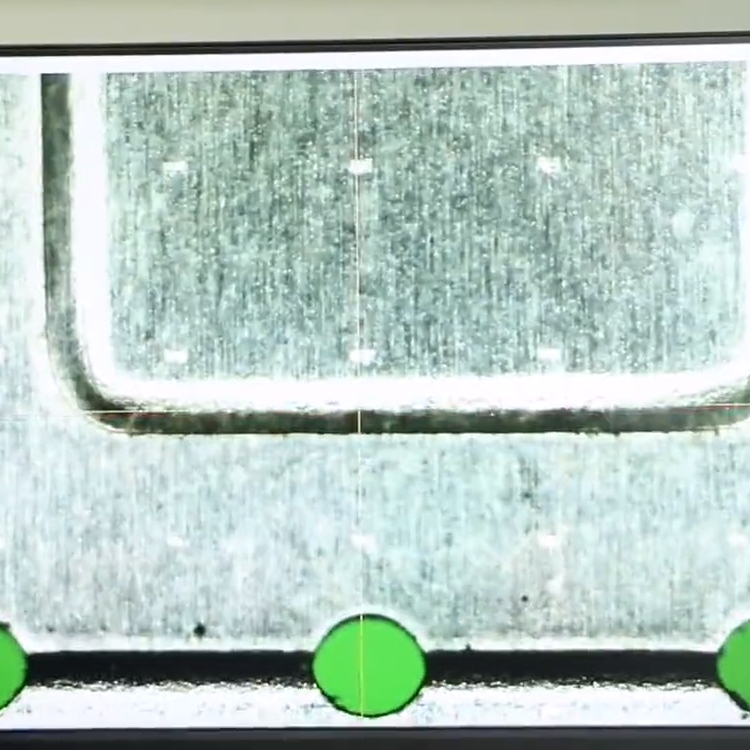

· Self-developed QMS3D-F software, compatible with new Windows systems, easy to operate with extensive features. Standard equipment includes a custom industrial high-definition digital camera with high color fidelity and the ability to switch between full-screen image views. The electronic feedback lens ensures precise optical magnification, with programmable and knob-adjustable lighting functions. The software can assist in dimming, allowing for more precise control of light intensity and helping users determine if the light is over-saturated. The dual-laser pointer for locating and measuring parts results in more accurate measurements, effectively improving efficiency; also suitable for high-complexity and challenging measurements.
Achieve high-level auxiliary measurement
Reserved fixture hole positions for easy installation of various fixtures;栅格尺 resolution is 0.5 um.

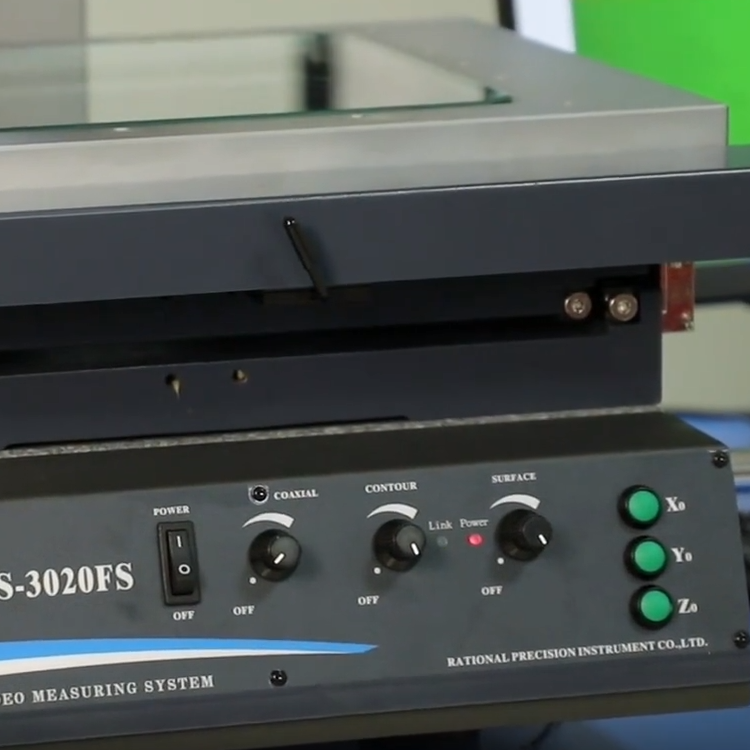

Both hardware and software feature a one-touch reset function.
Connect to traditional foot switches to enhance measurement efficiency, and also (custom software) can achieve sending data to ERP or MES to improve data transfer efficiency.
VMS-3020FSTechnical Specifications
Model | VMS-2010FS | VMS-3020FS | VMS-4030FS | ||
WorkerPlease provide the Chinese content that needs to be translated into American English.Tai | Metal Table Dimensions (mm) | 404*228 | 500*330 | 606*466 | |
Glass Table Size (mm) | 260*160 | 350*250 | 450*350 | ||
Exercise stroke (mm) | 200*100 | 300*200 | 400*300 | ||
X/Y/Z Display Resolution | 0.5um | ||||
Indication Error | E…=(2.5+L/100) umE ≤ 10 (Z-axis stroke per 100mm) | ||||
Cross-section origin consistency error (um) | |||||
Dimensions (Length x Width x Height) mm | 540*560*850 | 760*600*900 | 970*670*940 | ||
Instrument Weight (kg) | 110 | 140 | 240 | ||
Z-axis travel (mm) | 150 (2010FS/3020FS available for order up to 300); 3020FS/4030FS available for order up to 400 | (For use with precision cutting blades, the diameter is 19mm) | |||
Imaging System | Color Gigabit Network CameraZoom lens zoom ratio: 0.58X ~ 7.5X; Total video signal-to-noise ratio: 27.4X ~ 351.3X (24-inch monitor) | ||||
Power: AC 100V～240V, 50/60Hz; Power Consumption: 50W (excluding standby power) | Brand Computer (Standard Configuration) | ||||
Recommended Placement Desk: Breaking Load ≥ 350kg, Dimensions (Length x Width x Height): 1000*600*500(mm)
Optional accessories: crosshair, DC3000 digital indicator, collar head, coaxial light rod head
