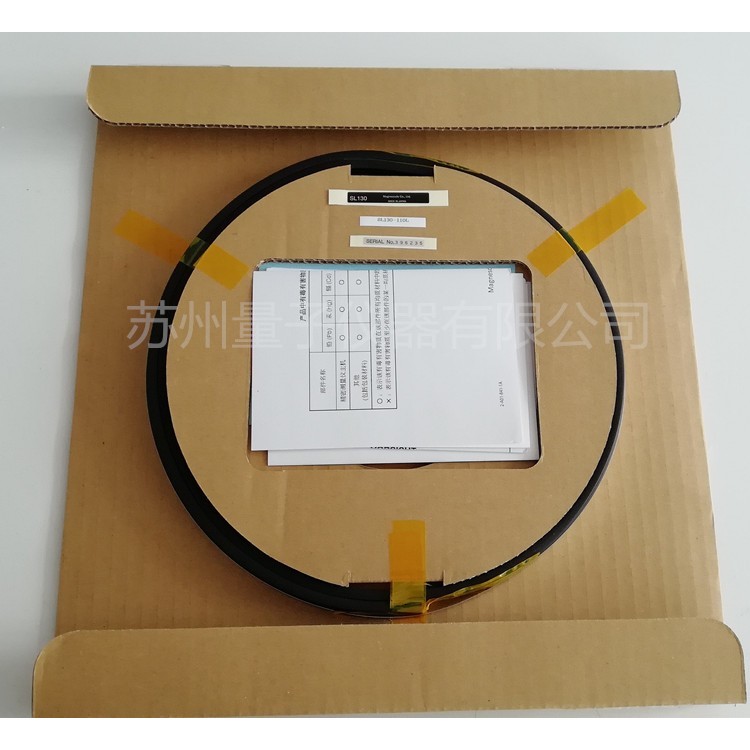

Japan Magnescale Magnetic Scale S
Negotiable
Mitutoyo 500-155-30 Digital Calip
Negotiable
Japan Magnescale Reading Head PL1
Negotiable
Japanese Magnescale Magnetic Scal
Negotiable
Wan Hao Image Measurement System
Negotiable
Mitsubishi High-Performance Type
Negotiable
Japanese Magnescale Reading Head
Negotiable
Mitutoyo Caliper 500-153-30
Negotiable
Japan Magnescale Dial Gauge Senso
Negotiable
Rational Wanhowa CPJ-3020W Horizontal Projector
Features:
The horizontal projector features a stable and reliable mechanical structure with high precision magnification. It accurately projects the contour, cross-section, and surface shape of the measured workpiece onto the projection screen, suitable for observing and measuring the contour shapes of tools, gears, threads, springs, and more.
Technical specifications:
| Model | CPJ-3020W | CPJ-4025W | ||||
| Travel of X-axis coordinate (mm) | 200 | 250 | ||||
| Travel of Z-axis coordinate (mm) | 100 | 150 | ||||
| Workbench Size (mm) | 400×150 | 450×200 | ||||
| Swing Range | ±15° | ±15° (Available for customization up to ±25°) | ||||
| Digital Resolution (μm) | 0.5 | |||||
| Indication Error (μm) | 3.5+L/50 (L is the length of the tested object, unit: mm) | |||||
| Y-axis travel coordinate (mm) | 75 (Focus Adjustment) | 100 (Focus Adjustment) | ||||
| Weight (kg) | 160 | 240 | ||||
| Size (mm) | 1090×830×1010 | 1215×646×1210 | ||||
| Projector Screen | Dimensions (mm) | Ф 300 | Ф 400 | |||
| Rotation Range | 0~360° | |||||
| Rotary Resolution | 1’ or 0.01° | |||||
| Objective Lens (CPJ-3020W) | Magnification Factor | 10× (Optional) | 20× (Optional) | 50× (Optional) | 100× (Optional) | |
| Objective Field (mm) | Ф30 | Ф15 | Ф6 | Ф3 | ||
| Working Distance (mm) | 77.7 | 44.3 | 38.4 | 25.3 | ||
| Objective Lens (CPJ-4025W) | Magnification Factor | 5× (Optional) | 10x (standard) | 20× (Optional) | 50× (Optional) | 100× (Optional) |
| Objective Field of View (mm) | Ф80 | Ф40 | Ф20 | Ф8 | Ф4 | |
| Working Distance (mm) | 93.7 | 103.9 | 95.1 | 65.7 | 35.0 | |
| Data Processing System | DC-3000 Multi-functional Digital Indicator, full Chinese display, capable of multi-point sampling, coordinate rotation. Point, line, circle, distance, angle measurement | |||||
| Instrument Lighting | Transmission: 24V/150W Halogen Bulb. Reflection: 21V/150W Halogen Bulb. | |||||
| Instrument accessories | Mini printer (optional), optical edge finder (optional), 2D measurement software (optional) – see projector attachment instructions for details | |||||
Instrument Power Supply: AC 100-240V, 50/60Hz, Total Power: 400W | ||||||
