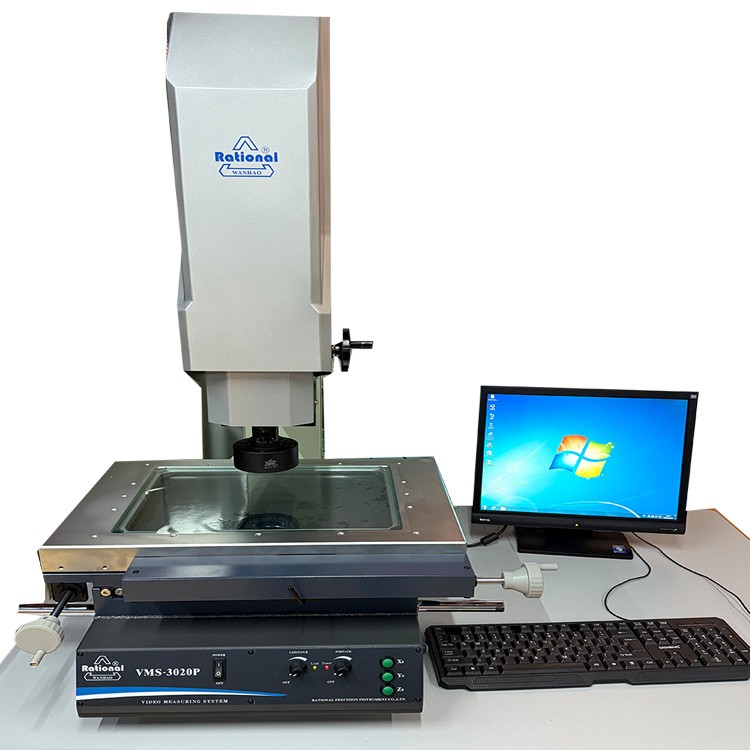

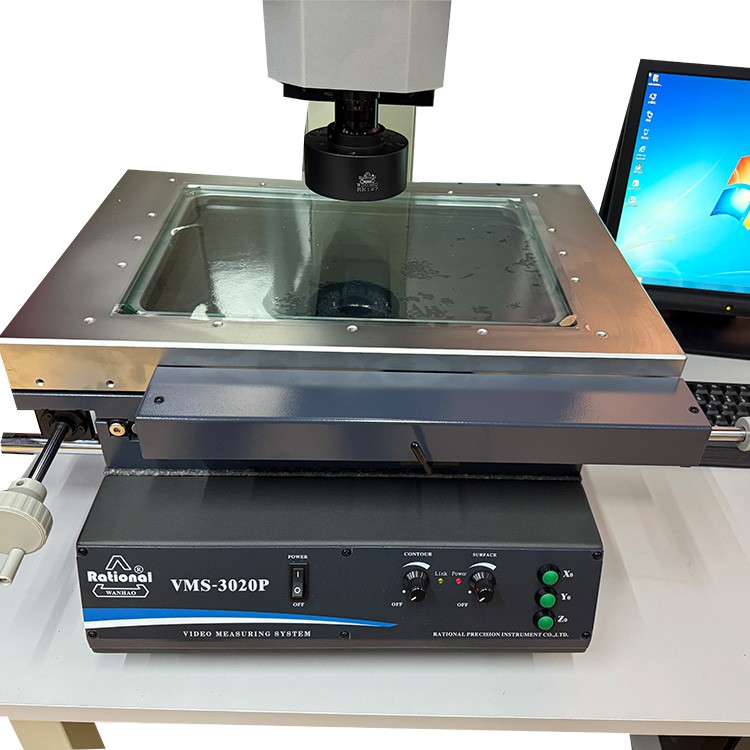

Rational Wanhao VMS-3020P Image Comparator, CNC 2.5D
Product Application
This instrument is suitable for applications requiring two-dimensional coordinate measurement and is widely used in industries such as machinery, electronics, instrumentation, and plastics.
Product Features
Self-developed QMS3D-M software, compatible with new Windows systems, easy to operate with extensive features, comes with high-definition industrial analog cameras that offer superior color fidelity.
Electronically feedback lenses ensure more precise optical magnification, while featuring programmable and knob-adjustable brightness control. Software-assisted dimming allows for more accurate light intensity adjustments, aiding users in determining if the light is oversaturated. Dual laser pointers for part locating and positioning offer increased accuracy in measurements, effectively enhancing efficiency; also suitable for high-complexity and challenging measurements.
Achieve highly assistive measurement
Reserve fixture hole positions for easy installation of various clamping fixtures. The resolution of the light栅尺 is 0.5um.
Both hardware and software come with a one-touch reset function.
Connect to traditional foot switches to enhance measurement efficiency while also enabling (custom software) capabilities.
Technical Specifications
Model | VMS-2010P | VMS-3020P | VMS-4030P | ||||
Workbench | Metal Table Dimensions (mm) | 404*228 | 500*330 | 606*466 | |||
Glass Table Dimensions (mm) | 260*160 | 350*250 | 450*350 | ||||
Exercise stroke (mm) | 200*100 | 300*200 | 400*300 | ||||
X/Y/Z Display Resolution | 0.5um 2.5+l/100 | ||||||
Indication Error | |||||||
Cross-sectional origin consistency error (μm) | E. ≤30 (Z-axis travel per 100mm) | ||||||
Dimensions (Length x Width x Height) mm | 540*560*850 | 760*600*900 | 970*670*940 | ||||
Instrument Weight (kg) | 110 | 140 | 240 | ||||
Z-axis travel (mm) | 150 (orderable up to 300 for 2010P); 3020P/4030P orderable up to 400 (with coaxial light lock head, light to break point distance is 70mm) | ||||||

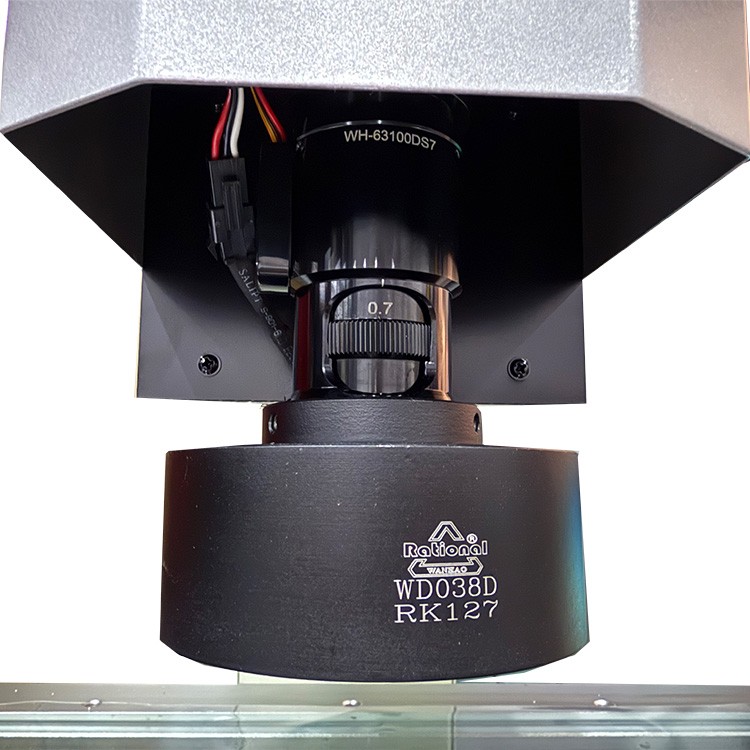

Imaging System | Camera: Color 1/3" Camera, Electronic Feedback Zoom Lens, Zoom Ratio: 0.7X~4.5X, Total Video Magnification: 26.6X~171X (on a 21.5-inch monitor) | ||||||
Objective Field (Diagonal): 8.1mm ~ 1.3mm Power: AC 100V ~ 240V, 50/60Hz | |||||||
Instrument accessories | 1X Tube (Standard Equipment) | 0.5x Objective Tube (Optional) | Working Distance * (mm) | ||||
Zoom lens | 0.7X~4.5X | 0.7X~4.5X | |||||
Additional Lens | Video Magnification Ratio | Object Field of View (mm) | Video Magnification Ratio | Objective Field of View (mm) | |||
0.5X (optional) | 13.3X~85.5X | 16.2~2.6 | 6.65X~42.7X | 32.4~5.2 | 175 | ||
1x (Standard Configuration) | 26.6X~171X | 8.1~1.3 | 13.3X~85.5X | 16.2~2.6 | 92 | ||
2X (optional) | 53.2X~342X | 4~0.7 | 26.6X~171X | 8.1~1.3 | 36 | ||
Optional accessories: crosshair, DC3000 digital indicator, simple probe, coaxial light lens, computer
