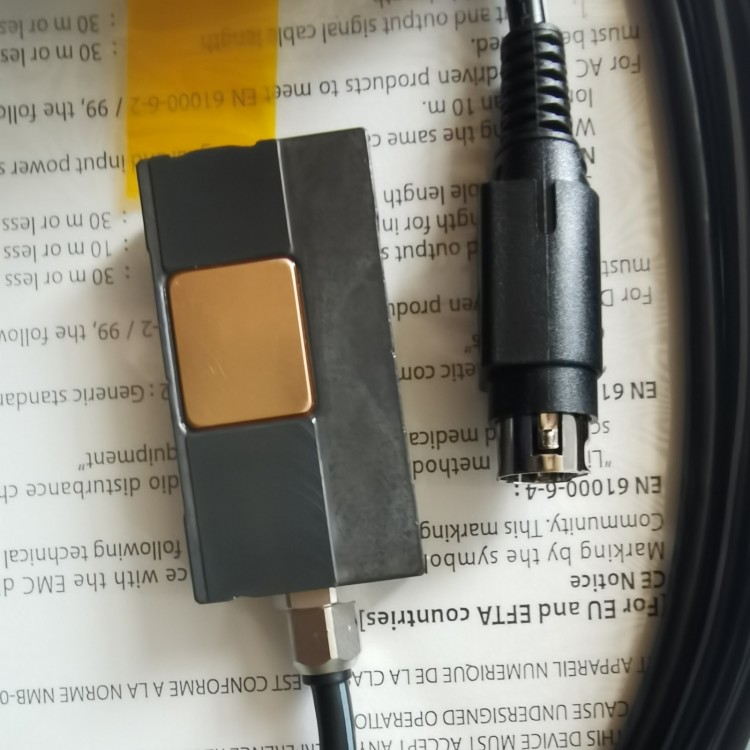

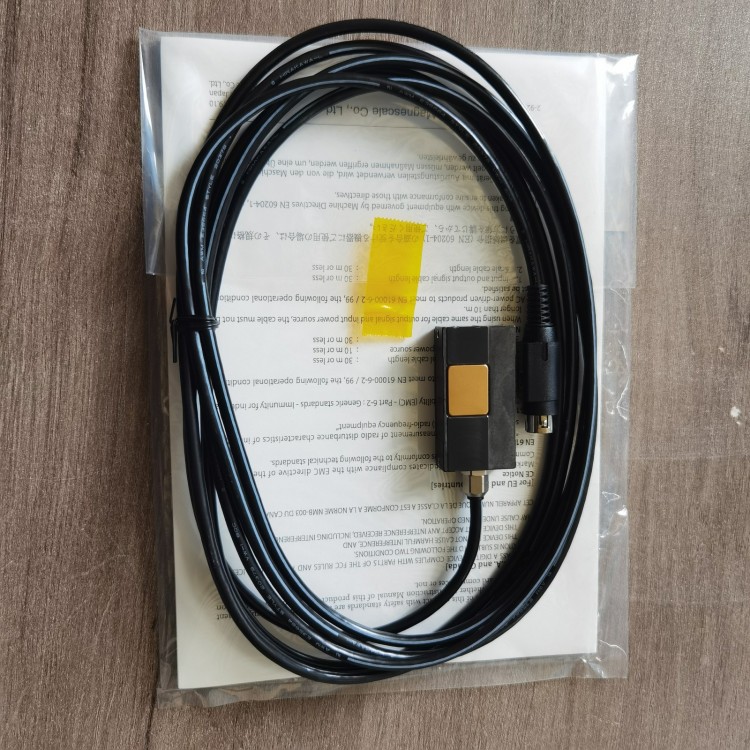

Japanese Magnescale Reading Head PL101-RM
Combined with the SL700, detect the position and movement distance along a straight line, and output data via serial communication from Mitsubishi Electric (Corp.), Nidec Corporation, and Panasonic Electric Works (Corp.).
Read heads and scales are non-contact.
Due to the magnetic detection method, it boasts strong resistance to dirt and oil stains, as well as excellent vibration and impact resistance.
A wide variety of choices are available based on usage.
| Main Specifications | |||||||
|---|---|---|---|---|---|---|---|
*1 Refer to the外形尺寸图 (dimension drawing) Changes to the content will be made without prior notice. | |||||||
| Model | PL101-RM | PL101-RHM | PL101-RY | PL101-RHY | PL101-RP | PL101-RHP | |
| Reader Assembly | PL101-R | PL101-RH | PL101-R | PL101-RH | PL101-R | PL101-RH | |
| Protection Grade (Sensor Component) | Equivalent to IP50 | Equivalent to IP67 | Equivalent to IP50 | Equivalent to IP67 | Equivalent to IP50 | Equivalent to IP67 | |
| Origin | Available | ||||||
| Resolution (Segment Count) | 0.1μm (1/8000) | 1/8192 | 0.1μm (1/8000) | ||||
| Accuracy (at 20℃) | ±10L μm *L≦3000mm；±(10L +2.5N) μm *L≦3000mm *L is the measuring range, N is the corresponding integer to the length. The relationship between L and N is referenced in the SL700 specification table. | ||||||
| Spacing *1 | 0.35 ± 0.1 mm | ||||||
| Set Position | ±0.2mm | ||||||
| Posture changes | Pitch*1 | ±0.1° | |||||
| Yaw*1 | ±0.2° | ||||||
| Roll*1 | ±0.2° | ||||||
| Communication Protocol | Mitsubishi Electric (Corp.) | Nippon Anshan Motor Co., Ltd. | Panasonic Corporation | ||||
| Power Voltage | DC 5V ± 5% | ||||||
| Power Consumption | Max.1.0w | ||||||
| Large response speed | 10m/s | ||||||
| Sensor Cable Length | 300mm | 3000mm | |||||
| Sensor quality | 60g | 150g | |||||
| Operating Temperature Range | 0 ～ +45℃ | ||||||
| Storage Temperature Range | -20 ～ +50℃ | ||||||
| Read Head, Extended Cable Between Insert Boxes (Sold Separately) | CK-T12：1m CK-T13：3m CK-T14：5m CK-T15：10m | ||||||
| Insertion Box, Extension Cable between Servo Amplifiers (Sold Separately) | CE33-1：1m CE33-3：3m CE33-5：5m CE33-10：10m CE33-15：15m CE33-20：20m | CE32-1：1m CE32-3：3m CE32-5：5m CE32-10：10m CE32-15：15m CE32-20：20m | |||||
