Wan Hao Manual 2.5D VMS-4030FS Image Measurement Instrument
VMS-4030FSProduct Application
● The instrument is suitable for applications requiring two-dimensional coordinate measurement.
Domain, widely used in industries such as machinery, electronics, instruments, and plastics.
Product Features

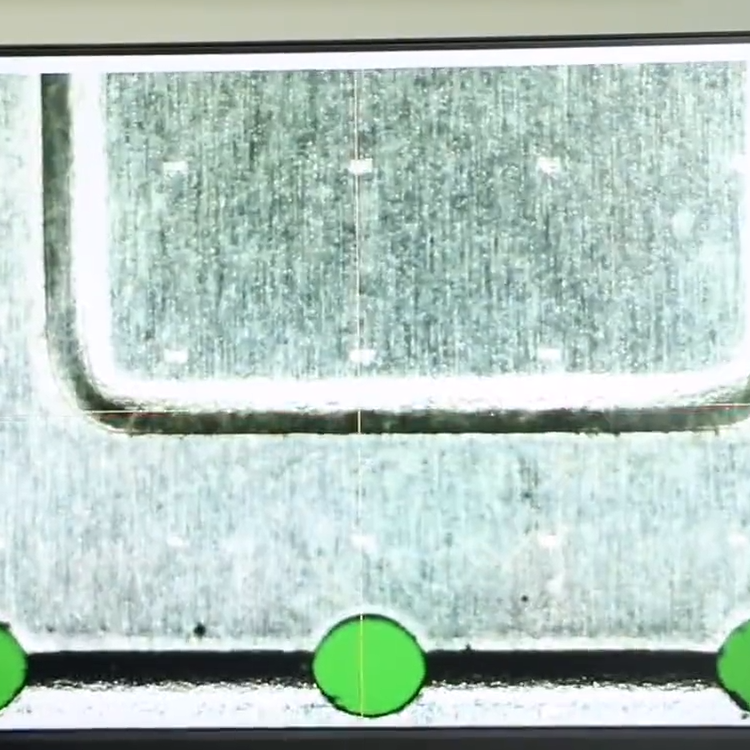

·Self-developed QMS3D-F software, compatible with new Windows systems, with simple operation and comprehensive features. Standard industrial high-definition digital camera with high color fidelity and full-screen image switching. Electronic feedback lenses for more precise optical magnification, with programmable and knob dimming functions. The software enables auxiliary dimming for precise light intensity control, making it easier for users to determine if the light is overly saturated. Dual laser pointers for part location and measurement, offering more precise positioning and improving measurement efficiency; also suitable for high-complexity and challenging measurements.
Achieve highly assistive measurement
Reserved fixture hole positions for easy installation of various clamping fixtures;栅尺 resolution is 0.5um.

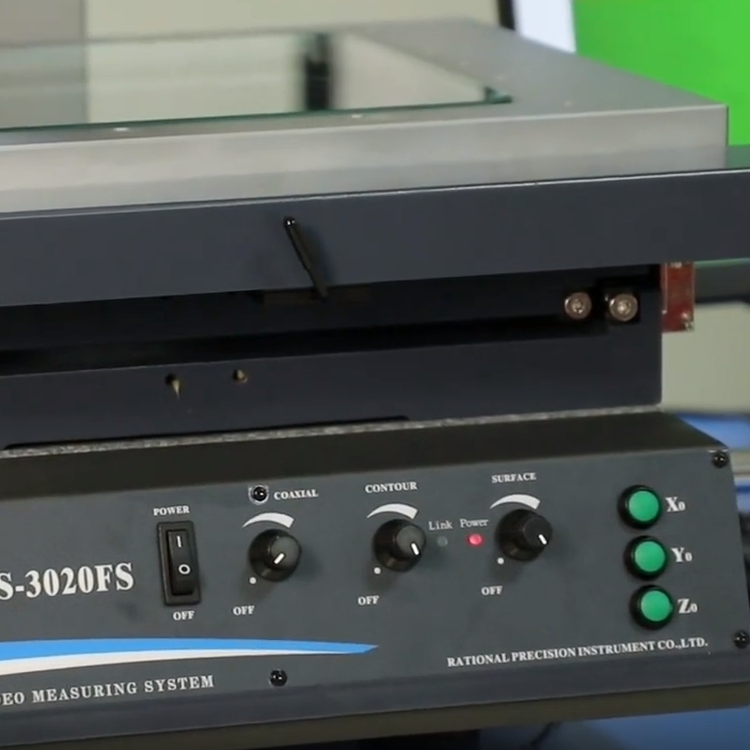

Both hardware and software come with a one-click reset function.
Connect to traditional foot switches to enhance measurement efficiency, while also (customizable software) enabling data transmission to ERP or MES systems to improve data transfer efficiency.
VMS-4030FSTechnical Specifications
Model | VMS-2010FS | VMS-3020FS | VMS-4030FS | ||
WorkPlease provide the Chinese content to be translated.Tai | Metal Table Dimensions (mm) | 404*228 | 500*330 | 606*466 | |
Glass Table Size (mm) | 260*160 | 350*250 | 450*350 | ||
Motion Stroke (mm) | 200*100 | 300*200 | 400*300 | ||
X/Y/Z Display Resolution | 0.5um | ||||
Indication Error | E…=(2.5+L/100) umE ≤ 10 (Z-axis stroke every 100mm) | ||||
Cross-section origin consistency error (um) | |||||
Dimensions (Length*Width*Height) mm | 540*560*850 | 760*600*900 | 970*670*940 | ||
Instrument Weight (kg) | 110 | 140 | 240 | ||
Z-axis stroke (mm) | 150 (2010FS/3020FS available for order up to 300); 3020FS/4030FS available for order up to 400 | (Used with item's top piece, the diagram is for new town, size is 19mm) | |||
Imaging System | Camera: Color Gigabit Network CameraZoom lens magnification: 0.58X ~ 7.5X Video total magnification: 27.4X ~ 351.3X (24-inch monitor) | ||||
Power: AC 100V～240V, 50/60Hz, Power: 50W (not including power consumption) | Brand Computer (Standard Configuration) | ||||
Recommended Placement Table: Breaking Load ≥ 350kg, Dimensions (Length x Width x Height): 1000*600*500(mm)
Optional accessories: crosshair, DC3000 digital indicator, collar head, coaxial light pole head
