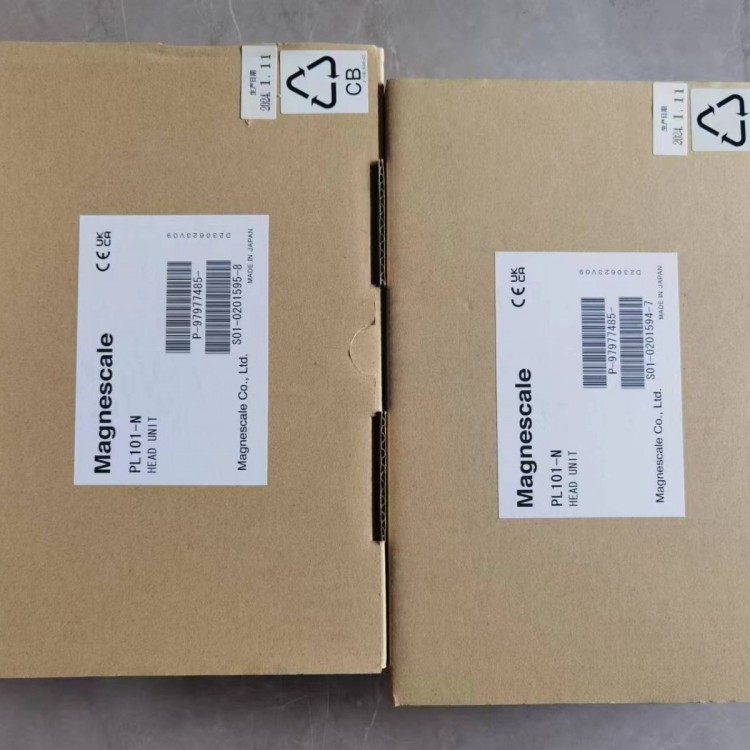

Japanese Magnescale Reading Head
Negotiable
Mitutoyo Standard Inside Micromet
Negotiable
Japanese Magnescale Magnetic Scale SL331-40
Magnetic Detection Method
Resolution: 5µm, 10µm (selectable via the switch on the side of the interpolation box)
Excellent environmental resistance
Small-sized, easy-to-install ruler components in strip form
Long ruler: Up to 8 meters in length
High sensitivity, high stability
Ruler Accuracy: 30+10L/1000 µmp-p (Measurement Range: Up to 8m) (L: Measurement Range)
Primary Uses: Automatic control for layout machines, SMT machines, X-Y workbenches, and other industrial equipment
| Main Specifications | ||
|---|---|---|
Changes to the recorded content will be made without prior notice. | ||
| Model | SL331 | |
| Measurement Range (L) | 200，300，400，500，600，700，800，1000，1200，1500，1600， 1700，1800，2000，2500，3000，4000，5000，6000，7000，8000 mm | |
| Full Length | L+100 mm | |
| Accuracy (at 20℃) | 30+10L/1000 μm-p L: Measurement Range | |
| Resolution | 5μm / 10μm (when paired with SL331/PL60) | |
| Large response speed | Resolution dependent | |
| Coefficient of linear expansion | (10.4±1)×10-6/℃ | |
| Operating Temperature Range | -5 ～ +45℃ | |
| Storage Temperature Range | -10 ～ +50℃ | |
| Connectable sensor cable (sold separately) | PL60 | |
