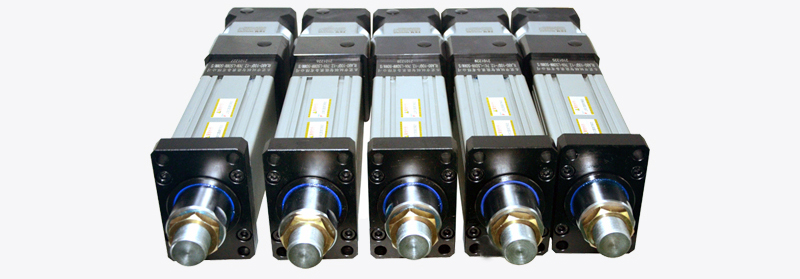

60 Electric Cylinder with Front Fish Eye and Rear Suction Ear

The 60 electric cylinder has a compact overall length, making it suitable for installations with limited space. Additionally, the imported synchronous belt used in this solution boasts high strength, minimal gap, and a long service life, which enhances the overall control and precision of the 60 electric cylinder. The servo motor pairs with the cylinder for flexible operation, easy installation, straightforward setup, and convenient use.

Product Details Description

1. Servo Electric Cylinder Working Principle
An electric cylinder is a modular product with an integrated design that converts the rotational motion of a servo motor into linear motion through the mechanical movement of a screw and screw nut pair. By utilizing the closed-loop control characteristics of the servo motor, precise control over thrust, speed, and position can be easily achieved; combined with mechanical motion technology and programmed control technology, it achieves programmed and numerical control. It is a revolutionary new product that achieves high-precision linear motion control.

2. Electric Cylinder Types

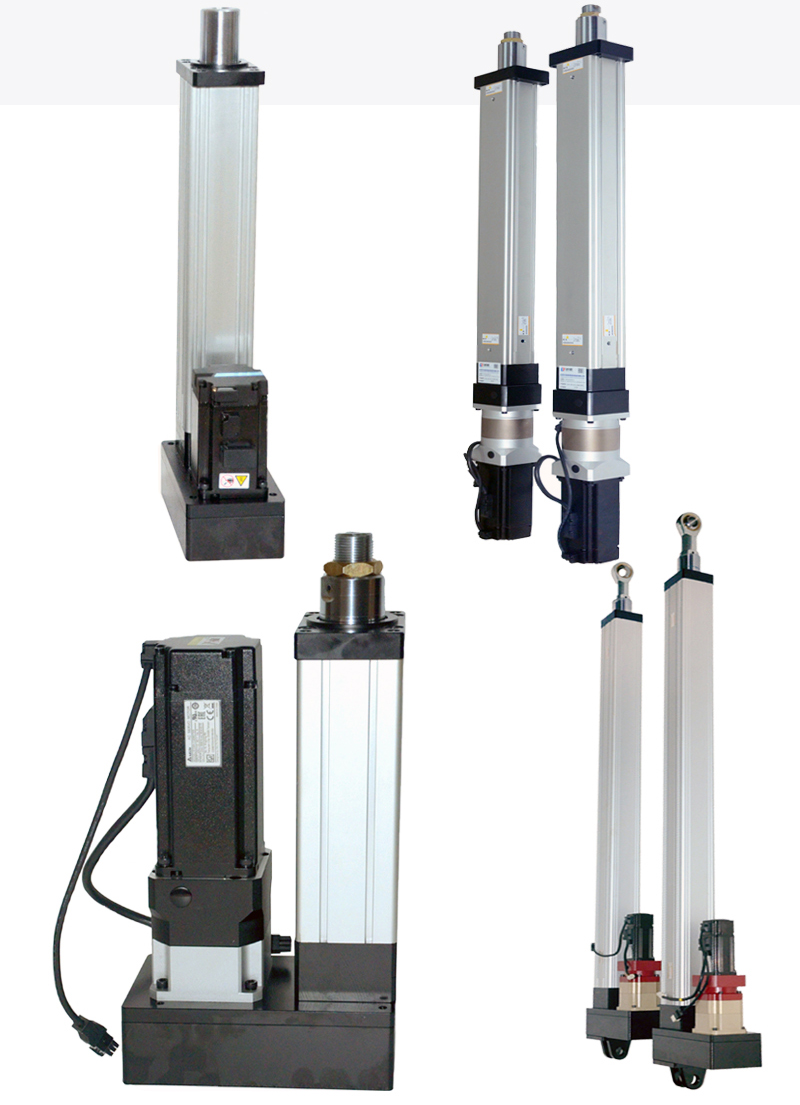

Direct-Acting Electric Cylinder
Direct-acting electric cylinders integrate AC servo motors, servo drives, high-precision ball screws, modular design, and other technologies, offering compact structure, low inertia, rapid response, low noise, and long lifespan. The servo motor is directly connected to the drive screw of the electric cylinder, reducing the inertia and clearance of intermediate links, enhancing controllability and precision. The overall connection between the servo motor and the electric cylinder ensures easy installation and convenient use. The main components of the electric cylinder are all made of internationally renowned brand products, ensuring stable performance, low failure rate, and high reliability.
2. Return to Zero Electric Cylinder
The return spring-loaded cylinder is suitable for installations with limited space due to its short overall length. Additionally, the imported synchronous belt used in this solution boasts high strength, minimal clearance, and long service life, contributing to the cylinder's superior control and accuracy. The servo motor works seamlessly with the cylinder, offering easy installation, simple setup, and convenient operation.

Section 3: Electric Cylinder Models

4. Overview of Electric Cylinder Features

1. Precise path positioning and controllability
2. Modular assembly applications, saving mechanical design space
3. Suitable for high-speed, high-frequency operation
4. Precise and easy to install
5. Multi-point positioning and multi-segment control
6. Variety of installation accessories and methods available
7. Available with a variety of complete motor and controller sets.
8. Diverse product range available for selection.
9. Sleek design, low maintenance costs, and easy to manage.

5. Electric Cylinder Usage Instructions and Precautions
1. Electric cylinders are precision electromechanical integrated transmission equipment. Please carefully read the precautions and the manuals for the motor, driver, and other components before use.
2. This product is equipped with a built-in strong magnet, an external magnetic induction switch, and a travel limit warning sign. Please fine-tune the required travel within the warning sign area.
3. Our company uses a full-sealed device, filled with high-quality grease, which requires no regular maintenance from customers; for some high-frequency and high-speed models, we have designed individual grease filling ports for lubrication.
4. During the servo electric cylinder tuning, start with low-speed, single-point operation. Only increase the speed after all aspects are normal to prevent damage to the electric cylinder.

Section 6: Application Range for 60 Electric Cylinder
Multi-degree-of-freedom simulation, multi-degree-of-freedom motion entertainment, precision machining, robots, mechanical lifting platforms, automotive presses, automotive manufacturing equipment, automated production lines, petrochemicals, material handling, injection molding machines, mold control, valve control, precision machine tools, food industry, and more.

Section 7: After-Sales Instructions and Recommendations
1. This product comes with a one-year warranty from the date of factory shipment, under normal use conditions (excluding intentional damage).
2. Damage caused by human factors or abnormal use is not covered under warranty.
3. Unauthorized disassembly of the electric cylinder without the manufacturer's permission is not covered under warranty, including any self-disassembly or modification.
