RLA80 Direct-Coupled Electric Cylinder

Direct-acting electric cylinders are suitable for installations with limited space due to their short overall length. Additionally, the imported synchronous belts used in this solution feature high strength, small gaps, and long lifespan, contributing to the high controlability and precision of the entire direct-acting electric cylinder. The servo motor works seamlessly with the cylinder, offering easy installation, simple setup, and convenient operation.

Product Details Introduction

One. Servo Electric Cylinder Working Principle
An electric cylinder is a modular product with an integrated design, converting the rotational motion of a servo motor into linear motion through the mechanical movement of a screw and screw nut pair. By utilizing the closed-loop control characteristics of the servo motor, precise control over thrust, speed, and position can be easily achieved; combined with mechanical motion technology and programmed control technology, it achieves programmed and numerical control. It represents a revolutionary new product for the purpose of high-precision linear motion control.

Section 2: Electric Cylinder Types
Direct-Acting Electric Cylinder

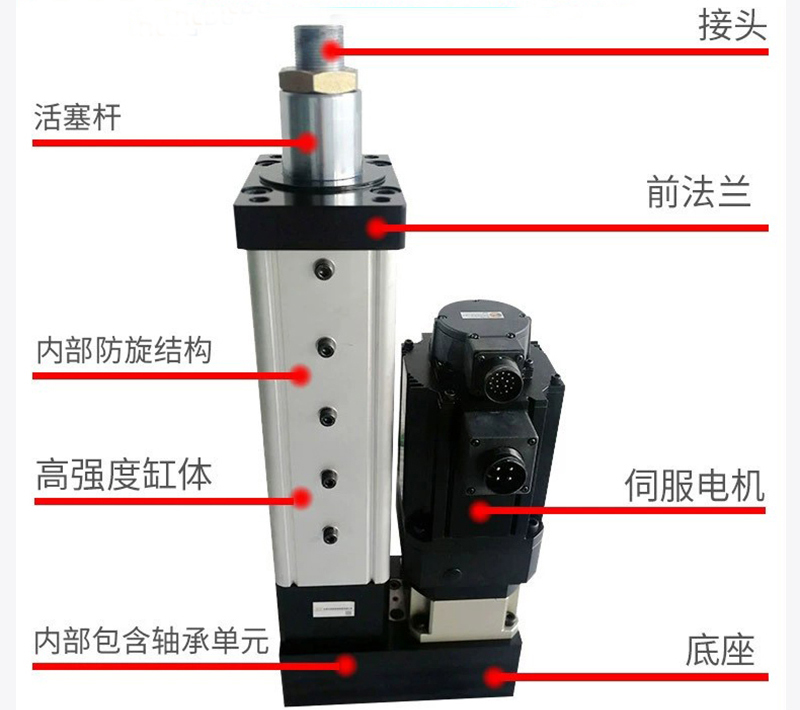

Direct-acting electric cylinders integrate AC servo motors, servo drives, high-precision ball screws, modular design, and other technologies, offering compact structure, low inertia, fast response, low noise, and long lifespan. The servo motor is directly connected to the transmission screw of the electric cylinder, reducing the inertia and clearance of intermediate links, enhancing controllability and precision. The servo motor is integrated with the electric cylinder for easy installation and convenient use. The main components of the electric cylinder are all sourced from internationally renowned brands, ensuring stable performance, low failure rate, and high reliability.
2. Folding Electric Cylinder
The folding electric cylinder is suitable for installations with limited space due to its short overall length. Additionally, the imported synchronous belt chosen for this solution boasts high strength, minimal gaps, and a long service life, contributing to the cylinder's excellent control and precision. The servo motor pairs well with the cylinder, offering easy installation, simple setup, and convenient operation.

Section 3: RuiLian Electric Cylinder Brand and Model

4. Overview of Direct-Acting Electric Cylinder Features

1. Precise path positioning and controllability
2. Modular assembly applications, saving design space for mechanical systems
3. Suitable for high-speed, high-frequency operation
4. Precision and easy installation
5. Multi-point positioning and multi-segment control
6. Attachments and installation methods are available for a variety of options.
7. Available with a variety of complete motor and controller sets.
8. Diverse product range available for selection.
9. Simple design, low maintenance costs, and convenient.

V. Direct-Connected Electric Cylinders - Instruction and Precautions
1. Electric cylinders are precision electromechanical integrated transmission equipment. Please carefully read the precautions and the manuals of the motor, driver, and other components before use.
2. This product features an internal high-strength magnet, equipped with a magnetic induction switch and a travel limit warning sign externally. Please fine-tune the required travel within the warning sign area.
3. Our company uses a fully-sealed device, filled with high-quality lubricants, which requires no regular maintenance from customers; for some high-frequency and high-speed models, we have designed personalized lubricant injection ports.
4. When adjusting servo electric cylinders, start with low-speed, single strokes and only increase speed after all aspects are functioning normally to prevent damage to the cylinder.

Section 6: Application Range of Direct-Connected Electric Cylinders

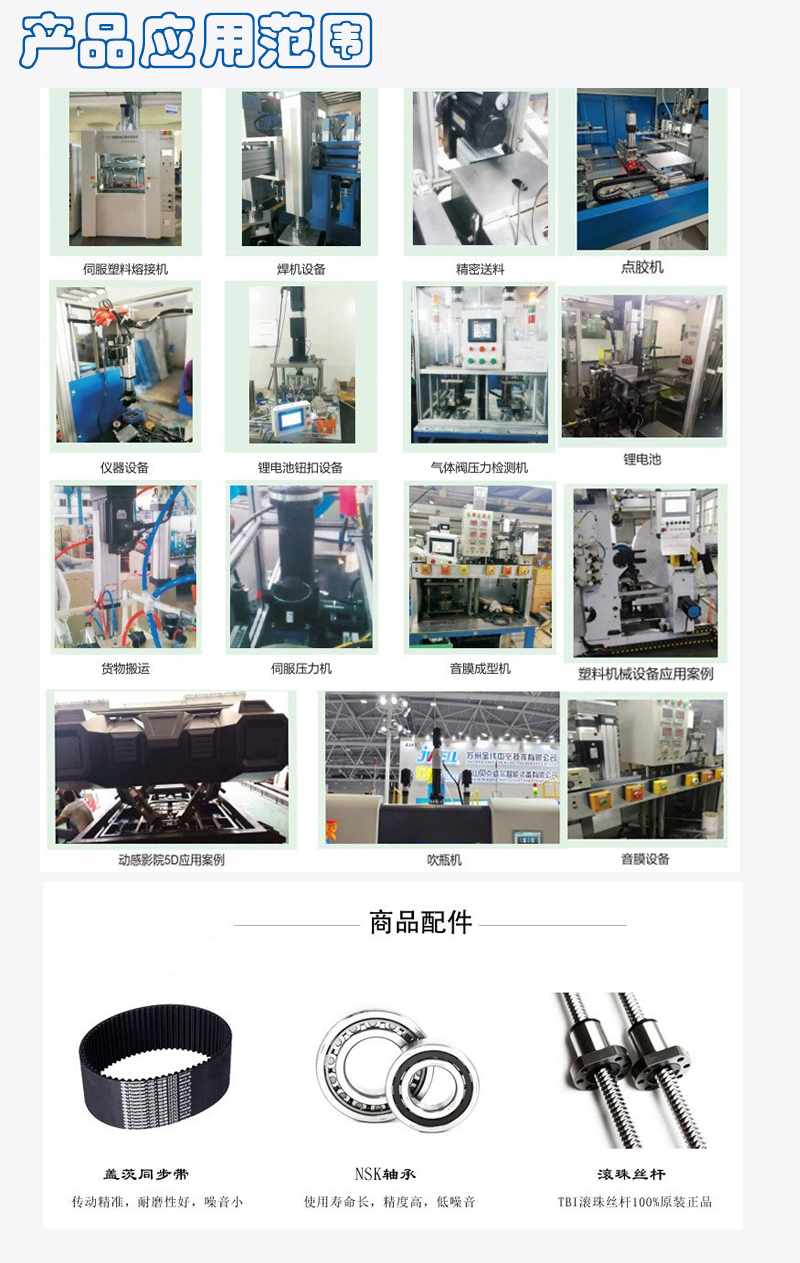

Multi-degree-of-freedom simulation and emulation, multi-degree-of-freedom motion entertainment, precision machining, robots, mechanical lifting platforms, automotive press machines, automotive manufacturing equipment, mechanical automation production lines, petrochemicals, material handling, injection molding machines, mold control, valve control, precision machine tools, food industry, and more.

Section 7: After-Sales Instructions and Recommendations
1. This product comes with a 1.5-year (18-month) warranty from the date of factory shipment, under normal use conditions (excluding any damage caused by misuse).
2. Damage caused by human factors or abnormal use is not covered under the warranty.
3. Unauthorized disassembly of the electric cylinder without the manufacturer's permission is not covered under warranty, including any self-disassembly or modification.
