Protective Relay Comprehensive Tester Price

Summary:  Statement

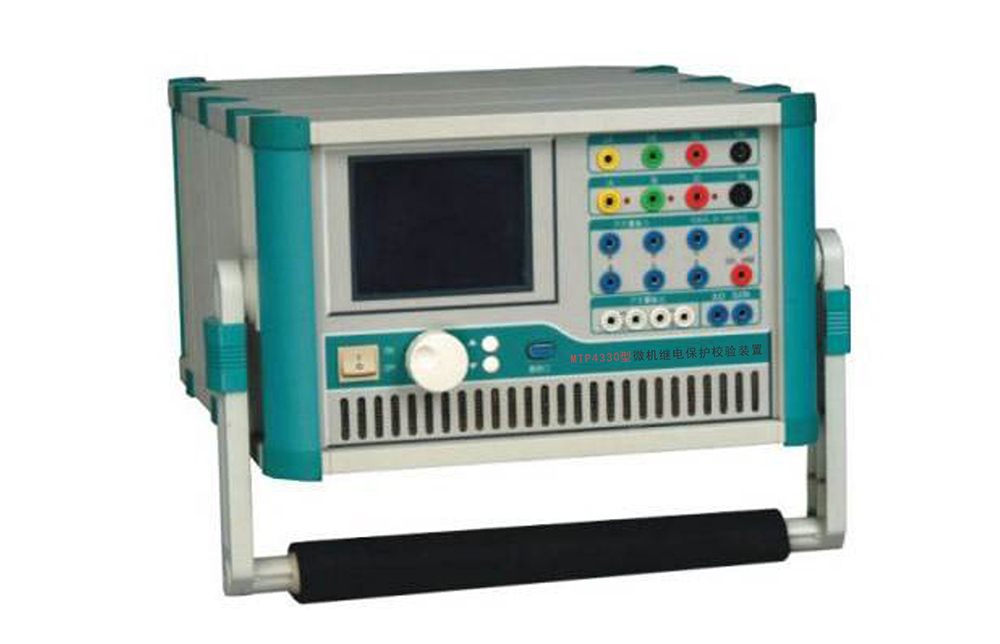

ZXJBThe Relay Protection Comprehensive Tester is a new generation of verification equipment successfully developed by our company. The internal AC and DC voltage and current sources of this instrument utilize advanced power supply technology, which enables the instrument to reach the domestic advanced level in circuit design, component selection, panel layout, and internal structural design. The instrument boasts complete functions, high-quality materials, clear test project data, and simple operation, making it an ideal choice for the electrical relay protection department.No Chinese content provided, please provide the news content to be translated. SelectedEquipment.

Technical Innovation Leads to Enhanced Product Quality Art Please provide the Chinese content that needs to be translated into American English. No Chinese content provided. Please provide the text to be translated. No content provided for translation. Unable to provide translation without the Chinese content. Please provide the text to be translated.

1No Chinese content provided.

（1Work Power Supply:AC220V+10%  50Hz

（2Office Environment: Temperature:-10℃～40℃

                  Humidity:≤85%

（3Atmospheric Pressure:86～106Kpa

2Output Power:

（1交流电压：AC Voltage0～220V/3A

（2AC Current:0～100A/7.5V

                0～20A/25V

                0～5A/5V

（3DC Voltage:0～220V/3A

（4Direct Current (DC)0～20A/25V

（5Setpoint Output:DC24V DC48V DC110V DC220V

3Performance Metrics:

（1Current and Voltage Meters:41/2Please provide the Chinese content that needs to be translated into American English.

（2Digital Millisecond Stopwatch:0～99.9999s

4Feature:

（1Our new measuring relay: capable of measuring the starting value, return value, and return coefficient of current and voltage relays.

（2Time Relay: Measures the start value, return value, and action time.

（3Intermediate Relay: Capable of measuring the start value, return value, holding value, and action time of various intermediate relays with starting and holding coils.

（4Reclosing Relay: Features include capacitor charging tests, charging time, reclosing time, and intermediate component testing.

（5Differential Relay: Capable of DC excitation tests, braking characteristic tests, and voltage-current characteristic tests.

（6A variety of other non-standard relays.
