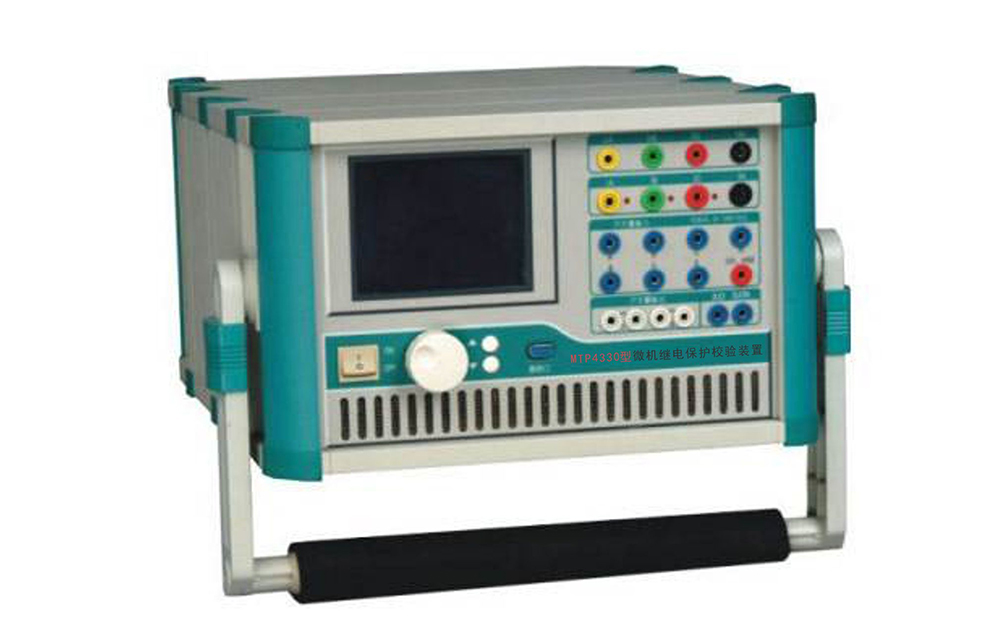

ZXJBThe Relay Protection Comprehensive Tester is a new-generation verification device successfully developed by our company. The instrument employs advanced power supply technology for its internal AC and DC voltage and current sources, achieving a leading level in domestic circuit design, component selection, panel layout, and internal structure design. The instrument boasts comprehensive functions, excellent material selection, clear test project data, and simple operation, making it an ideal choice for the power relay protection department.First SelectedEquipment.

Technical Innovation Leads to Enhanced Product Line No Chinese content provided for translation. Please provide the Chinese content to be translated. Please provide the Chinese content to be translated. No Chinese content provided, original text returned: "" Unable to translate without the Chinese content provided. Please provide the text to be translated.

1Job Conditions:

（1Work Power Supply:AC220V+10%  50Hz

（2Office Environment: Temperature:-10℃～40℃

                  Humidity:≤85%

（3Atmospheric Pressure:86～106Kpa

2Output Power:

（1交流电压: AC Voltage0～220V/3A

（2AC Current:0～100A/7.5V

                0～20A/25V

                0～5A/5V

（3Direct Current Voltage:0～220V/3A

（4DC Current:0～20A/25V

（5Fixed-value Output:DC24V DC48V DC110V DC220V

3Performance Metrics:

（1Current and Voltage Meters:41/2Please provide the Chinese content to be translated.

（2Digital Millisecond Stopwatch:0～99.9999s

4Feature:

（1Measuring Relays: Can measure the starting value, return value, and return coefficient of current and voltage relays.

（2Time Relay: Measures start values, return values, and action time.

（3Intermediate Relay: Measures the starting value, return value, holding value, and operating time of intermediate relays with both starting and holding coils.

（4Reclosing Relay: Capable of performing capacitor charging tests, charging time, reclosing time, and intermediate component tests.

（5Differential Relay: Capable of performing DC excitation tests, braking characteristics tests, and voltage-amperage characteristic tests.

（6A variety of other non-standard relays.
