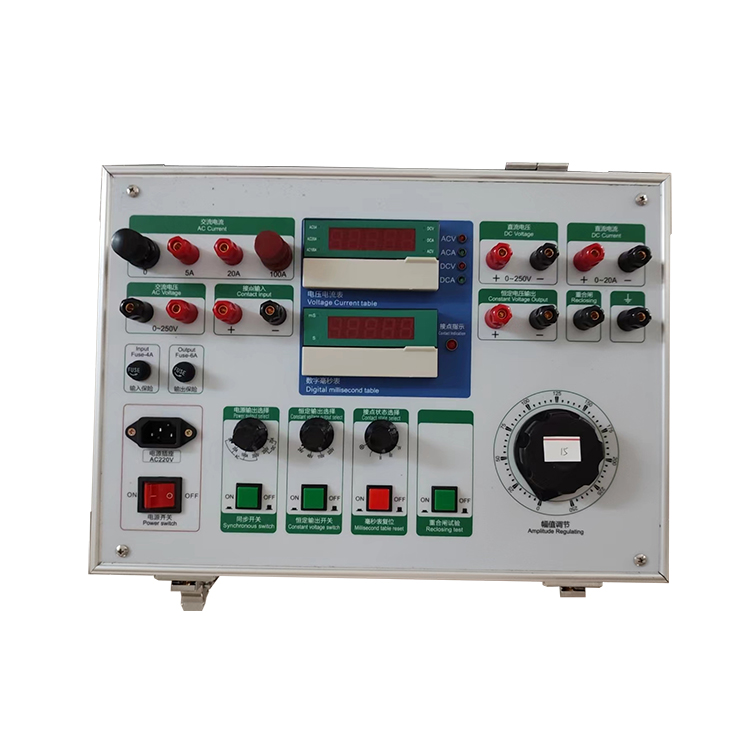

Relay Protection Tester

Summary:  No Chinese content provided.

The Relay Protection Verifier is a newly developed verification device by our company. The instrument employs advanced power supply technology for both AC and DC voltage and current sources, achieving a domestically leading level in circuit design, component selection, panel layout, and internal structure design. The instrument boasts comprehensive functions, high-quality materials, clear test project data, and simple operation, making it an excellent choice for the power relay protection department.Please provide the Chinese content for translation. Choose equipment.

Technical innovation leads our company to new heights. No Chinese content provided. Please provide the text to be translated. No Chinese content provided, nothing to translate. No Chinese content provided. No Chinese content provided for translation. Please provide the Chinese content to be translated into American English.

1Work Conditions:

（1Work Power Supply:AC220V+10%  50Hz

（2Office Environment: Temperature:-10℃～40℃

                  Humidity:≤85%

（3Atmospheric Pressure:86～106Kpa

2Output Power:

（1交流电压：AC Voltage0～250V/3A

（2交流电流：AC Current0～100A/12V

                0～50A/25V

                0～25A/50V

（3Direct Current Voltage:0～320V/3A

（4Direct Current:0～20A/25V

（5Fixed Value Output:DC24V DC48V DC110V DC220V

3Performance Metrics:

（1Current and Voltage Meters:41/2No Chinese content provided, please provide the text to be translated.

（2Digital Millisecond Stopwatch:0～99.9999s

4Feature:

（1The Measurement Relay: Measures the starting value, return value, and return coefficient of current and voltage relays.

（2Time Relay: Measures the starting value, return value, and action time.

（3Intermediate Relay: Capable of measuring the starting value, return value, holding value, and action time of intermediate relays with both starting and holding coils.

（4Reclosing Relay: Allows for capacitor charging tests, charging time, reclosing time, and intermediate component testing.

（5Differential Relay: Capable of conducting DC excitation tests, braking characteristic tests, and voltage-current characteristic tests.

（6A variety of other non-standard relays.
