One,Summary  Described

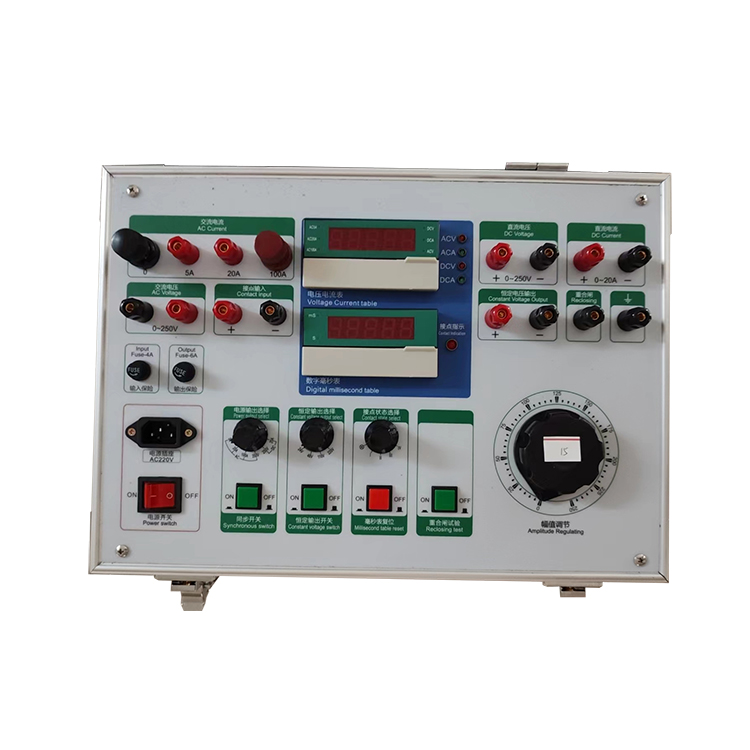

The JBC-II Type Relay Protection Tester is the latest verification device successfully developed by our company. The instrument utilizes advanced power supply technology for its internal AC/DC voltage and current sources, achieving a leading level in domestic circuit design, component selection, panel layout, and internal structural design. The instrument boasts comprehensive functions, high-quality materials, clear test project data, and simple operation, making it an ideal choice for the power relay protection department.First.Select equipment.

TwoNo Chinese content provided for translation. Art No Chinese content provided, please provide the text to be translated. No Chinese content provided. Please provide the text to be translated. Please provide the Chinese content that needs to be translated. Please provide the Chinese content that needs to be translated into American English.

1、 Work Conditions:

（1) Working Power: AC220V+10%  50Hz

（2) Working Environment: Temperature: -10℃ to 40℃

                  Humidity:≤85%

（3) Atmospheric Pressure: 86-106 Kpa

2、 Output Power:

（1) Line Voltage: 0~220V/3A

（2) AC Current: 0~100A/7.5V

                0～20A/25V

                0～5A/5V

（3). Direct Current Voltage: 0～220V/3A

（Direct Current: 0-20A/25V

（5) Setpoint Output: DC24V, DC48V, DC110V, DC220V

3、 Performance Metrics:

（1) Current and Voltage Meters: 4¹/₂Please provide the Chinese content that needs to be translated into American English.

（2) Digital Millisecond Stopwatch: 0～99.9999s

4、 Feature:

（1) Measuring Relays: Capable of measuring the start value, return value, and return coefficient of current and voltage relays.

（2) Time Relay: Measures start values, return values, and action time.

（3) Intermediate Relay: Measures the startup value, return value, holding value, and operating time of intermediate relays with both startup and holding coils.

（4) Reclosing Relay: Capable of performing capacitor charging tests, charging time, reclosing time, and intermediate component tests.

（5) Differential Relay: Capable of performing DC excitation tests, braking characteristics tests, and voltage-amperage characteristic tests.

（6) Various other non-standard relays.
