High-Speed Multi-Slot Transformer Calibration Device

I. Overview

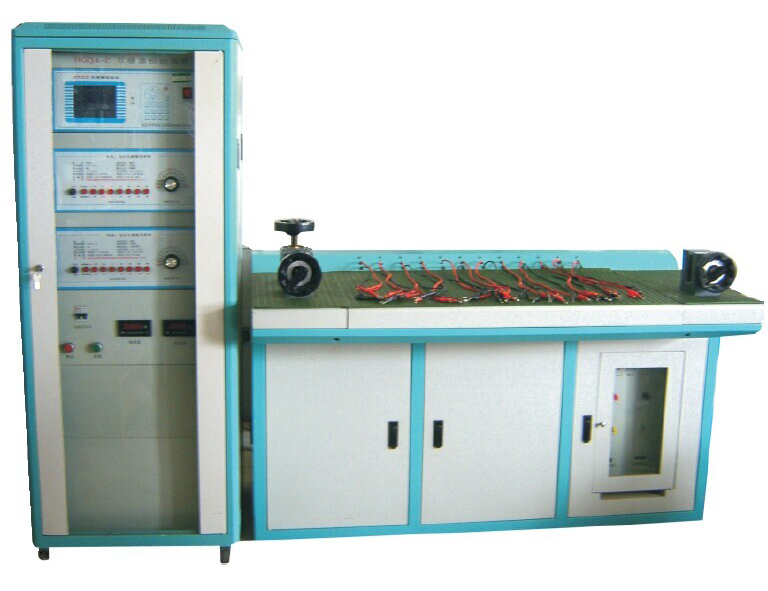

The Rapid Multi-Position Transformer Calibration Device is our company's newly developed generation of transformer calibration equipment, designed to cater to the fast and accurate characteristics of modern transformer calibration. The device consists ofThe HGQA-C Transformer Calibrator, Current Voltage Load Box, Control Cabinet, and Current Transformer Dedicated Test Bench are among the several components. While maintaining the original technical features, there have been significant improvements in the rapid measurement of current transformers, quick location of test points, and coverage of load boxes and transformers with various ratios.

Section II: Key Features

The device's fine adjustment employs programmable source technology, enabling quicker and more accurate location of the test points.

2. The device has achieved a qualitative improvement in measuring speed for multiple current transformers, capable of measuring twelve transformers of any ratio within 3-5 minutes.

The device is equipped with a 5A standard current transformer, and the current load box is configured with a 5A load value.2.5VA-60VAThe voltage load box is configured with100V load value from1.25VA-158.75VAEssentially, it meets the users' requirements. The load box can automatically switch during measurement.

4. The device is capable of performing both procedural and non-procedural measurements of transformers, with users able toPlease provide the Chinese content to be translated.. To be determinedMeasurements down to any decimal point.
