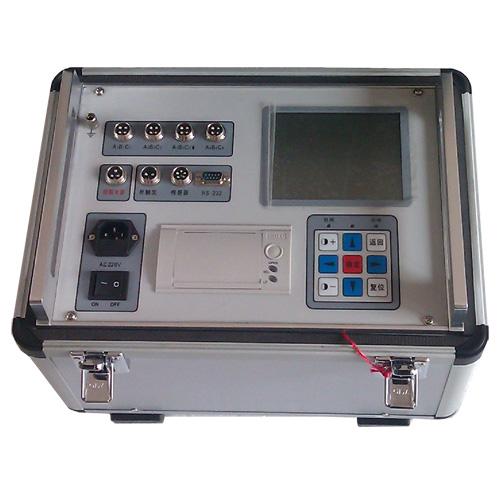

Mechanical Characteristic Tester

Summary:  Statement：

High VoltageSwitchesMechanicalFeature tester based on ChinaElectricity Industry StandardsDL/T846.3—2004Implementation completeOur newly designed equipmentUtilizing the latest international surface mount components and microprocessors, offering strong anti-interference capabilities, high testing accuracy, and direct control of switch operations./Segment actions and quickly and accurately display measurement results, and also print test data and time.-Travel Schedule (Break Point) Graph, Time-Current characteristic curve graph.

This series of instruments displayswindowsMenu interface with intelligent prompts and simple operation,Skip instructions manual operation; equipped withCOMNo Chinese content provided.USBInterface, featuring ultra-high capacity storage space, with the instrument itself capable of storage30Group test data, connectUSBStorage available280Group test data.

Equipment suitable for vacuum and hexafluoride at various voltage levels.Sulfurized, Low Oil, High OilVSIMechanical Characteristic Parameter Testing of Load Switches. Stable measurement data, convenient wiring, simple operation, high quality.Zhuo.No Chinese content provided.It is a convenient tool for testing the mechanical characteristics parameters of high-voltage switches.

Use Instructions：

1. Ensure the instrument is grounded before use.

2. Internal DC Power SupplyFor short-term employmentOperation Power Supply220V，10APlease use an external sync or an external power source if exceeding the internal power usage range.

3. Output power must not be short-circuited.。

4. No individuals or entities are permitted to open the casing without the company's authorization; otherwise, please refrain from doing so.The company will not fail to...Apologies, but there is no Chinese content provided for translation. Please provide the text you would like translated.Maintenance。

Instrument Features：

The instrument can automatically identify the closing and opening states of circuit breakers and prompt corresponding closing and opening operations based on the reference state of the circuit breakers.

Detectable and Notified12An interface for checking the connection status of a terminal, for easy user inspection of wiring.

Incorporates a high-capacity flash storage in the device(Storage-capable30Group test results)With a real-time clock for easy viewing of file test dates.

Extra-large LCD screen display, high-grade gray screen that doesn't reflect in sunlight or go black, user-friendly menu interface, easy to operate.

The instrument boasts robust graphic analysis capabilities, allowing for the examination of time (current) versus travel between any two points.

Automatically identify external and internal synchronization test modes (connected to external synchronization line is external synchronization, otherwise internal synchronization).

Exquisite appearance, with dimensions and weight ranking among the smallest in the domestic market.
