Coal-Fired Power Plant Frequency Adjustment and Unit Synchronization Tester

Instrument Overview

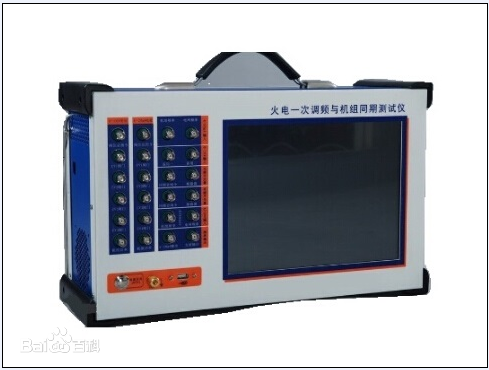

EDTPSteam Turbine Speed Governing and Unit Synchronous Testing InstrumentA comprehensive testing platform developed for the characteristics testing of thermal power plant's electric speed regulating system and automatic synchronization system. The instrument can complete...DEHStatic characteristics, speed dead band measurement, load response tests, and simultaneous tests, etc.,Automatically generate various types of test reports.EDTPThe device can also be used as a general-purpose waveform recorder and frequency generator, with the system sampling frequency reaching4KHZThis significantly expands the scope of the instrument's application and enhances its flexibility.

Features and technical specifications

1Software System

EDTPEquipped with a powerful software system, the instrument ensures convenient completion of various tests while significantly enhancing its flexibility and versatility. The main features of the instrument's software system can be summarized as follows:

1. The instrument can automatically generate WORD Test ReportExcel Test Report

2. The trial report automatically identifies curves, making the production of trial reports fully automated.

3. All sample channel names and units can be redefined.

4. Automated saving of test environment and instrument settings for various tests

5. Automatically calculate test parameters for various experiments

6. Simple and convenient channel filtration method

7. Utilize U Conveniently export test data with disks or portable hard drives, etc., storage devices.

8. Real-time plotting of test curves, with various curve analysis tools available, allowing users to freely zoom and position the curves.

9. Windows XPE The operating system features self-protection and recovery capabilities for software systems, preventing virus intrusion and corruption.

10. Utilizes anti-vibration processing to prevent user errors.

2 Hardware System

EDTPHardware system features and technical specifications are as follows:

1. 8Low-voltage/current analog quantity collection, voltage and current can be converted arbitrarily, voltage input range-10V~10V，Input Current Range-20mA~20mA，10%~100.%Full-scale sampling error less than0.2%

2. 2Lu Fangbo Frequency Measurement Channel45HZ~55HZ Scope, Frequency Resolution0.001HZLow measurement errorPlease provide the Chinese content to be translated.0.001HZFrequency Measurement Voltage Input Range0.5V~110V

3. 2Road Source Node Switch Quantity Measurement Channel

4. 2Road Source Node Switch Signal Measurement Channel, Switch Signal Input Voltage Range12V~220V

5. A continuous wave signal frequency output45Hz～55Hz Output Frequency Error Less Than0.001HzOutput Range1.3～200HzNo Chinese content provided.4-20mA Frequency Output, with customizable output frequency range and full-scale accuracy less than0.1%

6. 8The analog signal acquisition channels utilize isolated acquisition methods, and the channels are also isolated from each other.

7. 1No Chinese content provided.USB Port for data download or keyboard, mouse input

8. Touchscreen Method Achieves Human-Machine Interaction

9. Instrumental自带 4G Data Storage Space

10. 12.1 Tiny Colorful Big Screen Display
