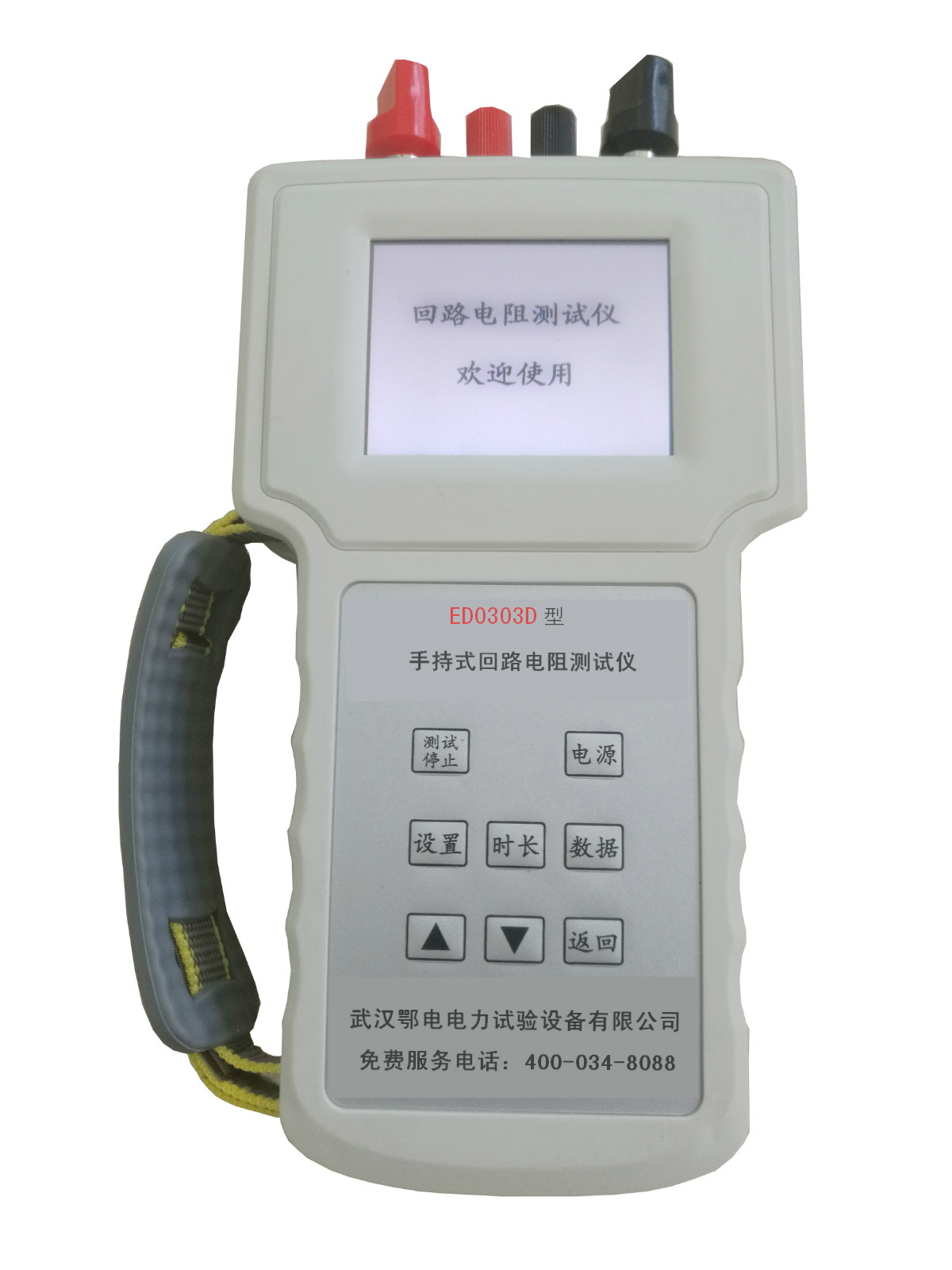

Loop Resistance Meter

I. Product Overview

This tester is an innovative product, featuring a compact size, handheld operation, battery-powered, and is easy to carry.

The tester is primarily designed for testing the contact resistance of the contacts of high and low voltage switches, measuring the direct resistance of high and low voltage cable lines, and other micro-ohm resistances, offering fast testing speed and high accuracy.

II. Features

Ø Output Current Up toModel 100A offers multiple current selections and a wide measurement range.

Ø Multiple measurement time options available to meet various on-site applications.

Ø Wide range, high precision, high resolution0.1uΩ。

Ø Battery-powered, with a single charge for continuous operationOver 500 tests conducted, with a simple and convenient measurement process.

Ø Equipped with features such as open-circuit protection and overheat protection.

Ø Adopted4.3-inch industrial-grade high-brightness color LCD screen, clearly visible even in bright sunlight.

Ø Equipped with an external printer for convenient data printing.

Ø With local storage andUSB flash drives offer convenient data storage.

III. Technical Specifications

Ø Output Current:100A、80A、50A、30A

Ø Measurement Range:100A      0～2000uΩ

      80A      0～5mΩ

      50A      0～10mΩ

      30A      0～20mΩ

Ø Please provide the Chinese content that needs to be translated into American English. Certainly. D:± (reading x 0.5% + 1 uΩ)

Ø Please provide the Chinese content to be translated. Please provide the Chinese content to be translated. Rate:0.1uΩ

Ø Measurement Time: Quick10～60In seconds, selectable

Ø Automatic Shutdown5 minutes of inactivity will automatically shut down

Ø Work Power: Built-in lithium battery or external charger, charger input100～240VAC，50Hz/60Hz

Ø Charging Voltage:12.6V

Ø Charging Current:≤3A

Ø Host Size:220mm ×168mm ×65mm

Ø Chassis Weight:1.6 kg (excluding test line)
