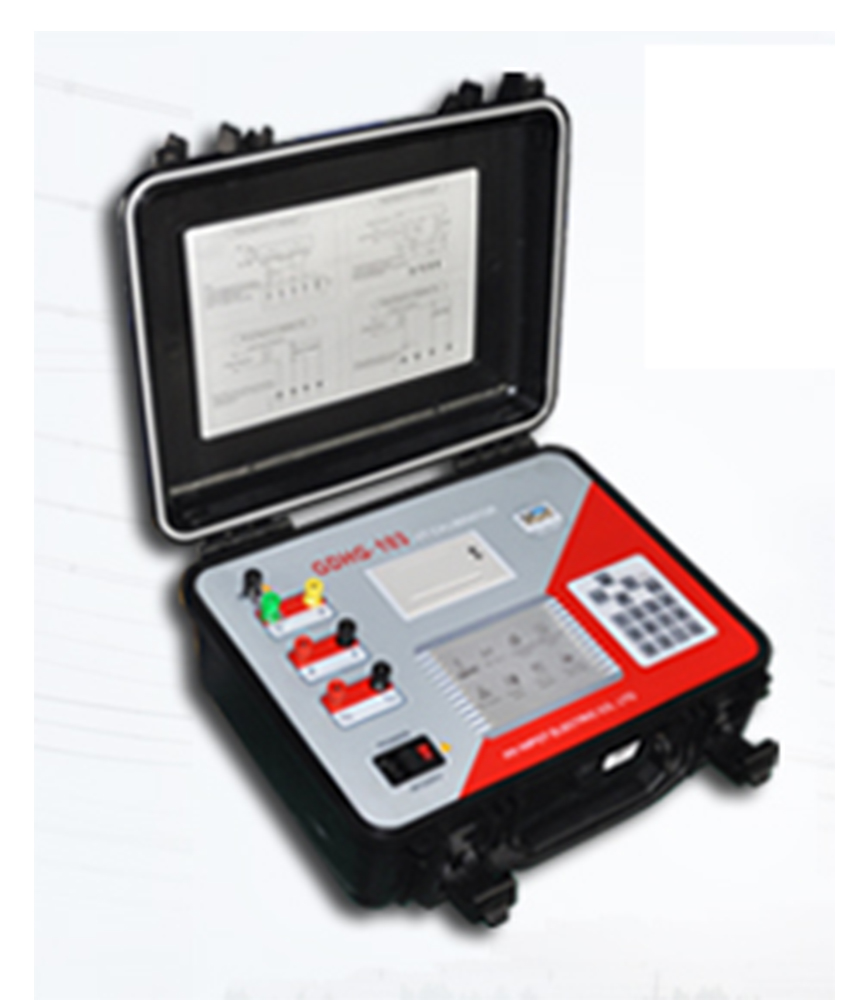

Transformer Comprehensive Calibration Instrument

Transformer Comprehensive Calibration Bench, Transformer Calibration Device, Transformer Testing Device, Transformer Calibration Bench

EDHEFThe Transformer Comprehensive Calibration Bench isErdian ElectricThe Power Research Center has developed and produced a fully automatic transformer testing device that can simultaneously calibrate multiple transformers, based on the metering standards for current transformers.EDHEFThe Integrated Calibration Bench for Transformers utilizes a single-chip microcontroller to perform measurement, control, and display functions. Users simply operate the virtual tester interface on the computer screen, input parameters such as transformer type, range, accuracy class, capacity, power factor, and more, to complete the automatic testing of current transformers and voltage transformers, as well as analysis, calculation, and data management of the test results. Additionally, the system can print out test technical specifications as per user requirements. TheEDHEFThe Comprehensive Transformer Calibration Bench boasts user-friendly operation and high efficiency, making it an ideal testing instrument for power systems and other units engaged in transformer calibration as well as metrological inspection.

Instrument Alias

Transformer Calibration Devices, Comprehensive Transformer Calibration Stations, Current Transformer Field Calibration Devices, Voltage Transformer Field Calibration Devices, Transformer Testing Devices, Transformer Calibration Meters, Transformer Calibration Benches, Automatic Transformer Calibration Benches, Transformer Calibration Equipment, Transformer Calibration Benches, Automatic Current Transformer Calibration Benches, Automatic Voltage Transformer Calibration Benches, Indoor Transformer Calibration Devices, Transformer Field Calibration Devices, Transmitter Calibration Devices

Instrument Function

1The comprehensive transformer calibration bench utilizes a single-chip microcontroller to achieve measurement, control, and display functions.

2Equipped with a computer interface, it enhances office automation and reduces the intensity of manual labor.

3Equipped with a large screen display, offering an intuitive interface, and rich measurement information.

4Our system can automatically perform transformer measurements and switch between current and voltage load boxes.

5The transformer integrated verification platform features excellent grip measures, enabling timely notification of error information to users.

6Our integrated transformer calibration bench can achieve...2No Chinese content provided.

7The turns ratio between the standard transformer and the transformer under test does not need to be equal; as long as the rated primary voltage or current of the standard transformer is greater than or equal to the rated value of the transformer under test, a direct calibration can be performed, making it convenient to use.

Transformer Comprehensive Calibration Bench

Technical Specifications

Test Instrument Model EDHEF

Instrument Name Current Transformer Calibrator, Automatic Current Transformer Calibration Bench, Current Transformer Verification Equipment, Current Transformer Calibration Device, Current Transformer Calibration Bench

Work Power AC220V±10%，50Hz±10%

Work Environment Temperature 0℃～+40℃

Relative Humidity ≤85%(25℃)

Pressure Control Output Capacity 7KVA(250V 30A)Available for expansion upon request.

Pressure Regulator Adjustment Fineness Superior0.04V

Dimension and Appearance Customization

Weight Customized
