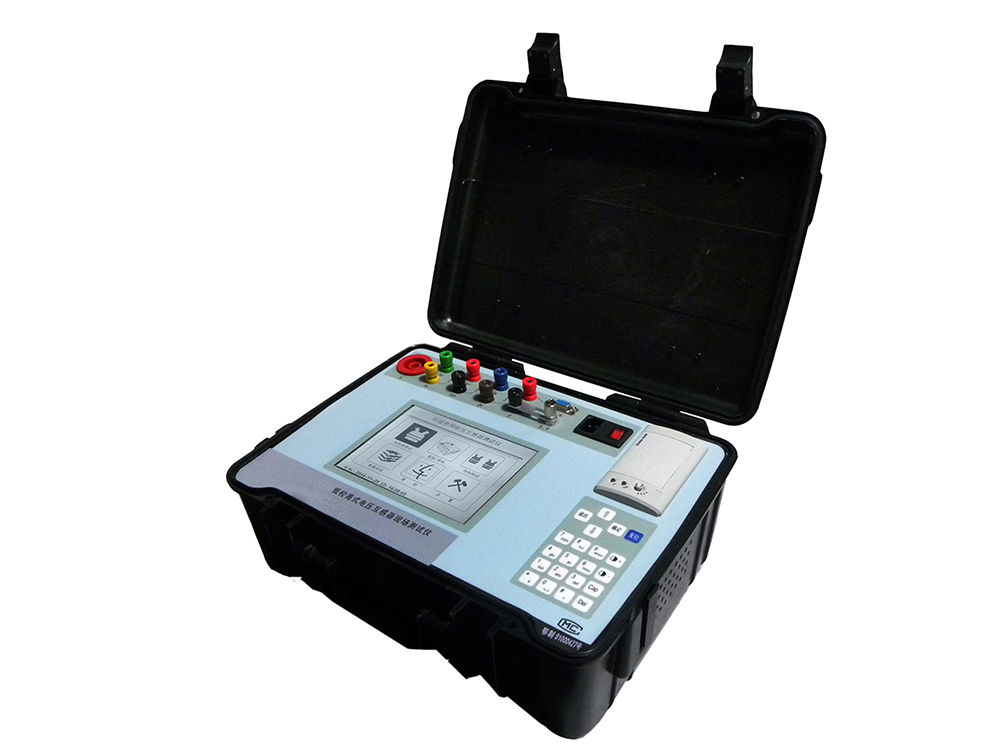

DGCT-SThe Electromagnetic Voltage Transformer Ratio and Polarity Tester, also known as the Electromagnetic Transformer Ratio Tester and Electromagnetic Transformer Polarity Tester, is a specialized transformer ratio and polarity testing instrument used for on-site ratio check tests during transformer handover and after the replacement of windings. The Electromagnetic Voltage Transformer Ratio and Polarity Tester supports the following standards:GB/T20840.5-2013、JB/T5356-199。

According toJJG313-94"Current Transformer for Measurement"JJG313-93The "Voltage Transformer for Measurement" requires on-site ratio check and testing to be conducted when transformers are connected and after the replacement of winding units.

       The conventional method for checking transformer ratios of standard current transformers is the current method, which, in principle, is an easily understandable and feasible inspection method. However, as the system capacity increases, the primary current of the current transformers becomes increasingly larger, sometimes reaching tens of thousands of amperes.;Increasing the current to several hundred amperes is already challenging; reaching thousands or tens of thousands of amperes is nearly impossible. Moreover, with a large volume and weight of several hundred kilograms or even tons, on-site use becomes even more difficult. Using the small current method would significantly increase the error of the current transformer due to its magnetic sensitivity, linearity, impedance, and leakage reactance, thereby losing the significance of ratio checking.

       The electromagnetic voltage transformer ratio polarity tester is compact, lightweight, with a wide measurement range, and easy to carry, making it an increasingly essential tool for transformer testing work, suitable for on-site current transformer ratio testing instruments.DGCT-S The Electromagnetic Voltage Transformer Ratio and Polarity Tester is a summary of domestic and international transformer characteristics by our company.,Developed with the application of cutting-edge research theories and findings, tailored to meet on-site usage requirements.

Instrument Alias

Transformer Ratio and Polarity Test Instruments, Electromagnetic Voltage Transformer Ratio and Polarity Testers, Transformer Ratio Testers, Transformer Polarity Testers, Current Transformer Ratio Testers, Current Transformer Polarity Testers, Current Transformer Accuracy Testers, Portable Electromagnetic Voltage Transformer Ratio and Polarity Testers, Handheld Transformer Polarity Testers, Comprehensive Transformer Parameter Testers, Transformer Actual Ratio Testers, Transformer Partial Discharge Testers, Current Transformer Error Testers, Transformer Open Circuit Voltage Testers, Automatic Ratio Testers, Comprehensive Transformer Ratio and Polarity Testers

Instrument Function

1The portable electromagnetic voltage transformer ratio and polarity tester, utilizing the voltage measurement method, is compact and lightweight, meeting the requirements for field work portability.

2The voltage waveform is generated by a single-chip microcontroller program, ensuring clean and pure output, free from power grid interference.

3The electromagnetic voltage transformer ratio polarity tester features an internal constant voltage source for stable readings.

4Applicable to all current transformers ranging from tens of amperes to tens of thousands of amperes, and all electromagnetic voltage transformers.

5The electromagnetic voltage transformer ratio polarity tester can directly display the transformer ratio.

6Electromagnetic voltage transformer ratio polarity tester measures transformer polarity using electronic methods, simple and intuitive.

Technical Specifications

DGCT-S The technical parameters of the Electromagnetic Voltage Transformer Ratio and Polarity Tester should be verified against the product's user manual or contract. If you find any inaccuracies in the technical parameter information, please feel free to correct them.

Transformer Ratio and Polarity Test Instrument Model DGCT-S

Transformer Ratio and Polarity Tester Electromagnetic Voltage Transformer Ratio and Polarity Tester, Electromagnetic Transformer Ratio Tester, Electromagnetic Transformer Polarity Tester

Work Power Input AC220V/50Hz

Ratio Measurement Range 5A/5A～25000A/5A 5A/1A～5000A/1A

Electromagnetic Voltage Transformers Full Series

Measurement Accuracy 0.2%

Volume 280×220×120mm3

Weight 2kg
