Transformer Ratio and Polarity Test Instrument

Electromagnetic Voltage Transformer Ratio and Polarity Tester, Electromagnetic Transformer Ratio Tester, Electromagnetic Transformer Polarity Tester

DGCT-SThe Electromagnetic Voltage Transformer Ratio and Polarization Tester, also known as the Electromagnetic Transformer Ratio Tester and Electromagnetic Transformer Polarization Tester, is a specialized transformer ratio and polarization testing instrument used for on-site ratio check tests during transformer handover and after winding replacement. The Electromagnetic Voltage Transformer Ratio and Polarization Tester supports the following standards:GB/T20840.5-2013、JB/T5356-199。

According toJJG313-94"Current Transformer for Measurement"JJG313-93The "Voltage Transformer for Measurement" requires that on-site ratio testing must be conducted during transformer handover and after the replacement of winding coils.

       The standard method for checking the ratio of conventional transformers is the current method, which, in principle, is an easily understandable and feasible inspection method. However, as the system capacity increases, the primary current of the current transformer becomes increasingly large, reaching tens of thousands of amperes.;Increasing the current to several hundred amperes is already challenging; reaching thousands or tens of thousands of amperes is nearly impossible. Moreover, due to their large size and weight, which can be several hundred kilograms or even tons, on-site use is even more difficult. Using the small current method would lead to a significant increase in current transformer errors due to the influence of magnetic sensitivity, linearity, impedance, and leakage reactance, thereby rendering the ratio check meaningless.

       The electromagnetic voltage transformer ratio polarity tester is compact, lightweight, with a wide measurement range, and easy to carry, making it an increasingly essential tool for transformer testing work, particularly suitable for on-site current transformer ratio testing.DGCT-S The Electromagnetic Voltage Transformer Ratio and Polarity Tester is a summary of domestic and international transformer characteristics by our company.,Developed using the latest research theories and findings, in alignment with on-site application requirements.

Instrument Alias

Transformer Ratio and Polarity Meters, Electromagnetic Voltage Transformer Ratio and Polarity Testers, Transformer Ratio Testers, Transformer Polarity Testers, Current Transformer Ratio Testers, Current Transformer Polarity Testers, Current Transformer Accuracy Testers, Portable Electromagnetic Voltage Transformer Ratio and Polarity Testers, Handheld Transformer Polarity Testers, Comprehensive Transformer Parameter Testers, Transformer Actual Ratio Testers, Transformer Partial Discharge Testers, Current Transformer Error Testers, Transformer Open Circuit Voltage Testers, Automatic Ratio Testers, Comprehensive Transformer Ratio and Polarity Testers

Instrument Function

1Introducing the portable electromagnetic voltage transformer ratio and polarity tester, featuring voltage measurement technology with compact size and lightweight design, meeting the mobility requirements for on-site work.

2The voltage waveform is generated by a microcontroller program, ensuring clean and pure output, free from grid interference.

3The electromagnetic voltage transformer ratio polarity tester employs a constant voltage source internally, ensuring stable readings.

4Applicable to all current transformers ranging from tens of amperes to tens of thousands of amperes, and all electromagnetic voltage transformers.

5The electromagnetic voltage transformer ratio polarity tester can directly display the transformer ratio.

6Electromagnetic voltage transformer ratio polarity tester uses electronic method to measure transformer polarity, simple and intuitive.

Technical Specifications

DGCT-S The technical parameters of the Electromagnetic Voltage Transformer Ratio and Polarity Test Instrument should be referred to the product's manual or contract. If you find any inaccuracies in the technical parameter information, please feel free to correct them.

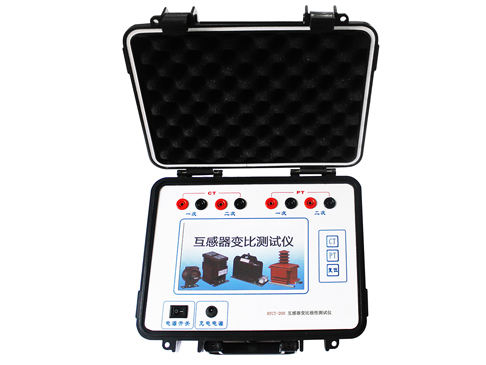

Transformer Ratio and Polarity Test Meter Model DGCT-S

Transformer Ratio and Polarity Tester Electromagnetic Voltage Transformer Ratio and Polarity Tester, Electromagnetic Transformer Ratio Tester, Electromagnetic Transformer Polarity Tester

Work Power Input AC220V/50Hz

Ratio Measurement Range 5A/5A～25000A/5A 5A/1A～5000A/1A

Electromagnetic Voltage Transformers Full Series

Measurement Precision 0.2%

Volume 280×220×120mm3

Weight 2kg
