Multi-frequency Power Supply Unit

1Summary

Voltage TransformerPTInduction withstand tests are a crucial procedure in the power system, ensuring that product quality meets national standards.PTThe inter-turn, inter-layer, inter-section, and phase-to-phase longitudinal insulation induction withstand voltage tests for the windingPTA critical item in insulation testing, the longitudinal insulation test requires applying test voltages through a variable frequency power supply unit to conduct withstand voltage tests.PTConducting inductive withstand tests can help staff identify issues promptly, preventing severe consequences.

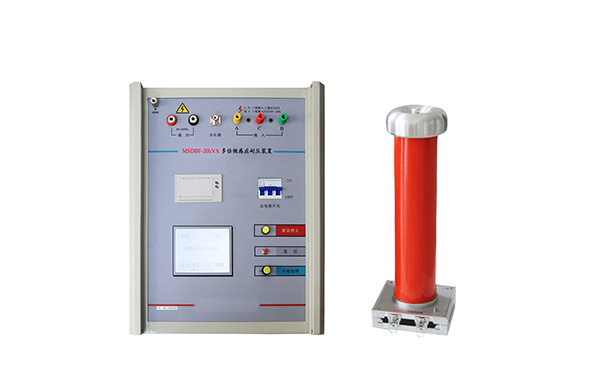

Our multi-frequency withstand test equipment, produced with microcomputer control and designed using advanced variable frequency and high-speed sampling technology, offers higher efficiency than traditional three-frequency generators. It boasts stable output voltage, high measurement accuracy, and excellent repeatability. Additionally, it features automatic voltage increase, automatic timing after reaching the set value, and automatic voltage decrease upon completion of timing. Operation is straightforward.Extreme.It's simple. The instrument features a backlit large-screen LCD display.All.Chinese operating interface with real-time clock and mini printer. The instrument features an integrated structure, lightweight, and easy to carry.

Key Features:

Prevent Voltage Surge - Accompanied by a high-impedance capacitor voltage divider, it can directly monitor the high voltage on the primary side and automatically complete the induced withstand voltage test.

Simple Operation; Pressure SeparableNo content provided for translation..Automatic Pressure and Manual Pressure, Optional30Hz～200HzFixed Voltage Output within a Frequency Range

■ PreserveAll.Surface       The instrument features comprehensive over-pressure and over-current protection functions, all of which can be set by the user.

Introducing Fresh Display Featuring a backlit large-screen LCD, the display is crystal clear with an intuitive and straightforward user interface.

■ Rapid Printing     Equipped with a micro high-speed thermal printer, the instrument can quickly print the displayed content.

■ Real-Time Clock - Records the date and time of measurements and displays the current time on an LCD screen.

Data Storage       Capable of Storing92Collect data, and it can be overwritten once full.

■ Seismic Performance       Utilizes seismic-resistant design, ensuring that the instrument will not be damaged during long-distance transportation.

2Key Technical Indicators

Work Conditions                  Ambient Temperature:-10°C to 50°C, Relative Humidity: 30% to 90%

Power Supply                  Three-phaseAC380V ±10% or AC220V ±10%   50 Hz±5 Hz

                          Please provide the Chinese content to be translated.AC220 power supply, power halved

Output Frequency                  30Hz～200Hz   Adjust Fineness0.1 Hz

Output Voltage                  0-350V sine wave

Output Power                  20KW

High Output Voltage              350VThe voltage can be increased with the addition of a step-up transformer (additional).

High Output Current              50A

Voltage Small Resolution            0.01V

Low Current High Resolution            0.001A

Voltage and Current Accuracy              ±1%

Physical Dimensions:570 (Length) x 400 (Width) x 350 (Height)

Instrument Weight                  About44kg
